RY 251 PH (090333005) - Ryobi String Trimmer, Rev 01 (2016-08) Figure A RY251PH Parts Diagram

String Trimmer, Rev 01

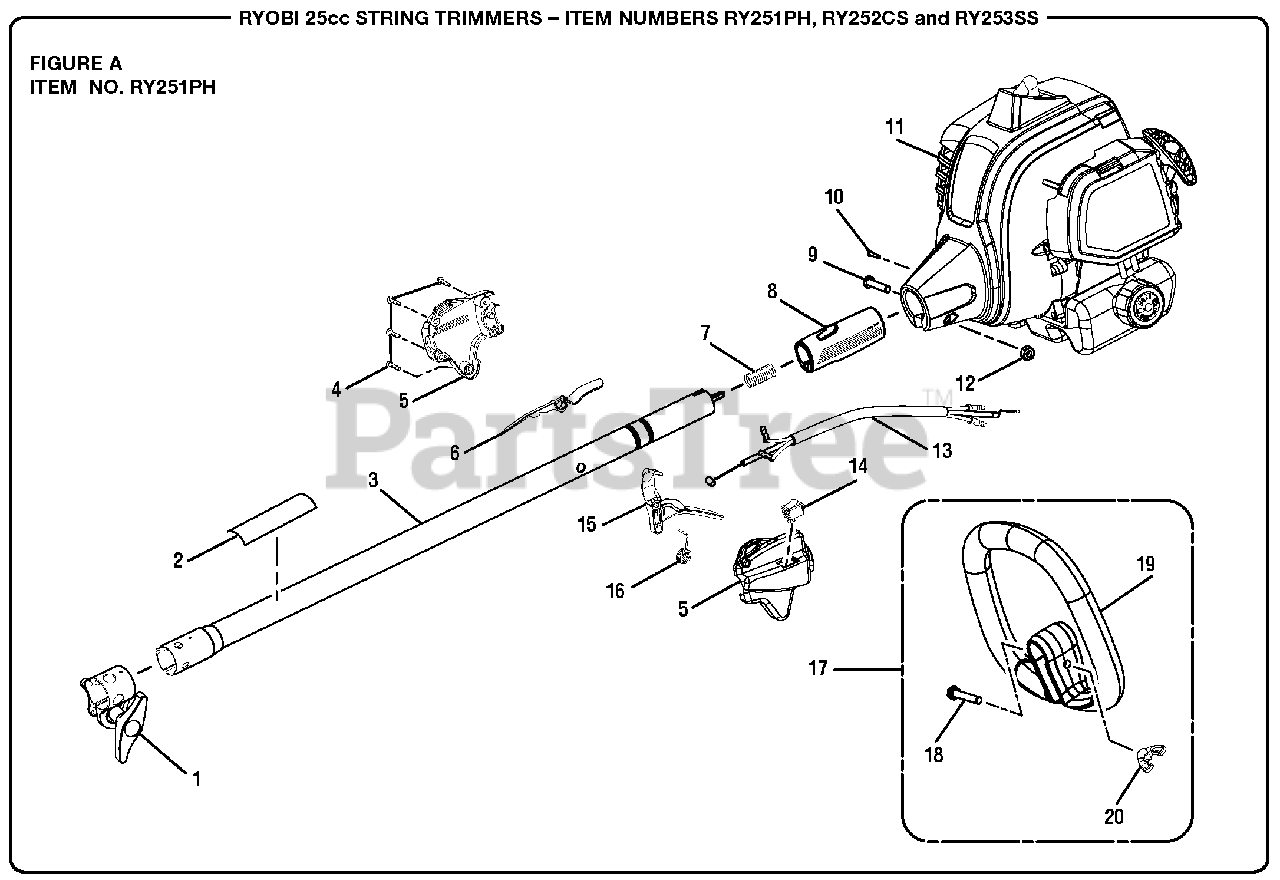

Figure A RY251PH Parts Diagram

  • Title

1

Homelite 308045012

Boom Clamp Assembly

$

$

Not available

2

Homelite 940657164

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308470060

Upper Boom Assembly

Note: (Inc. Key Nos. 1-2)

$21.99

$

Usually ships in 3-7 days

0

4

Homelite 660563002

Screw (M4 x 20 mm, T20 Torx Hd. S.T.)

$1.49

$

In Stock, Qty 6

0

5

Homelite 310831005

Control Handle Assembly

Note: (Inc. Key No. 4)

$5.49

$

Usually ships in 3-7 days

0

6

Homelite 518695009

Trigger Lock

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 690140011

Compression Spring
(Superseded to 06713)

$1.49

$

In Stock, only 2 left!

0

8

Homelite 570234002

Rear Handle Grip
(Superseded to 570234010)

$2.99

$

In Stock, only 2 left!

0

9

Homelite T660697001

Screw (M6 x 30 mm, T27 Torx Button Hd.)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 660925011

Screw (M4 x 8 mm, T20 Torx Pan Hd. S.T.)

$1.49

$

In Stock, only 3 left!

0

11

Homelite 307164002

Powerhead Assembly w/Labels

$

$

Not available

12

Homelite 678029002

Hex Nut (M6 x 1)

$1.49

$

In Stock, Qty 9

0

13

Homelite 307318001

Throttle Cable and Wire Assembly

$6.49

$

In Stock, only 1 left!

0

14

Homelite 760961002

On/Stop Switch

$

$

Not available

15

Homelite 518696016

Trigger
(Superseded to 518696020)

$1.49

$

In Stock, only 4 left!

0

16

Homelite 690694002

Trigger Spring

$1.49

$

In Stock, only 3 left!

0

17

Homelite 308991003

Front Handle Assembly

Note: (Inc. Key Nos. 18-20)

$8.49

$

Usually ships in 3-7 days

0

18

Homelite 660643008

Screw (1/4-20 x 40 mm, Cap Hex Hd.)

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 526764001

Front Handle

$6.49

$

In Stock, only 1 left!

0

20

Homelite 518949001

Wing Nut (1/4-20)
(Superseded to PS02453)

$1.49

$

In Stock, only 2 left!

0

Homelite 991000147

Operator's Manual (RY251PH, 961494004)

Note: Not Shown

$

$

Not available

Homelite 991000148

Operator's Manual (RY252CS & RY253SS, 961494005)

$

$

Not available
