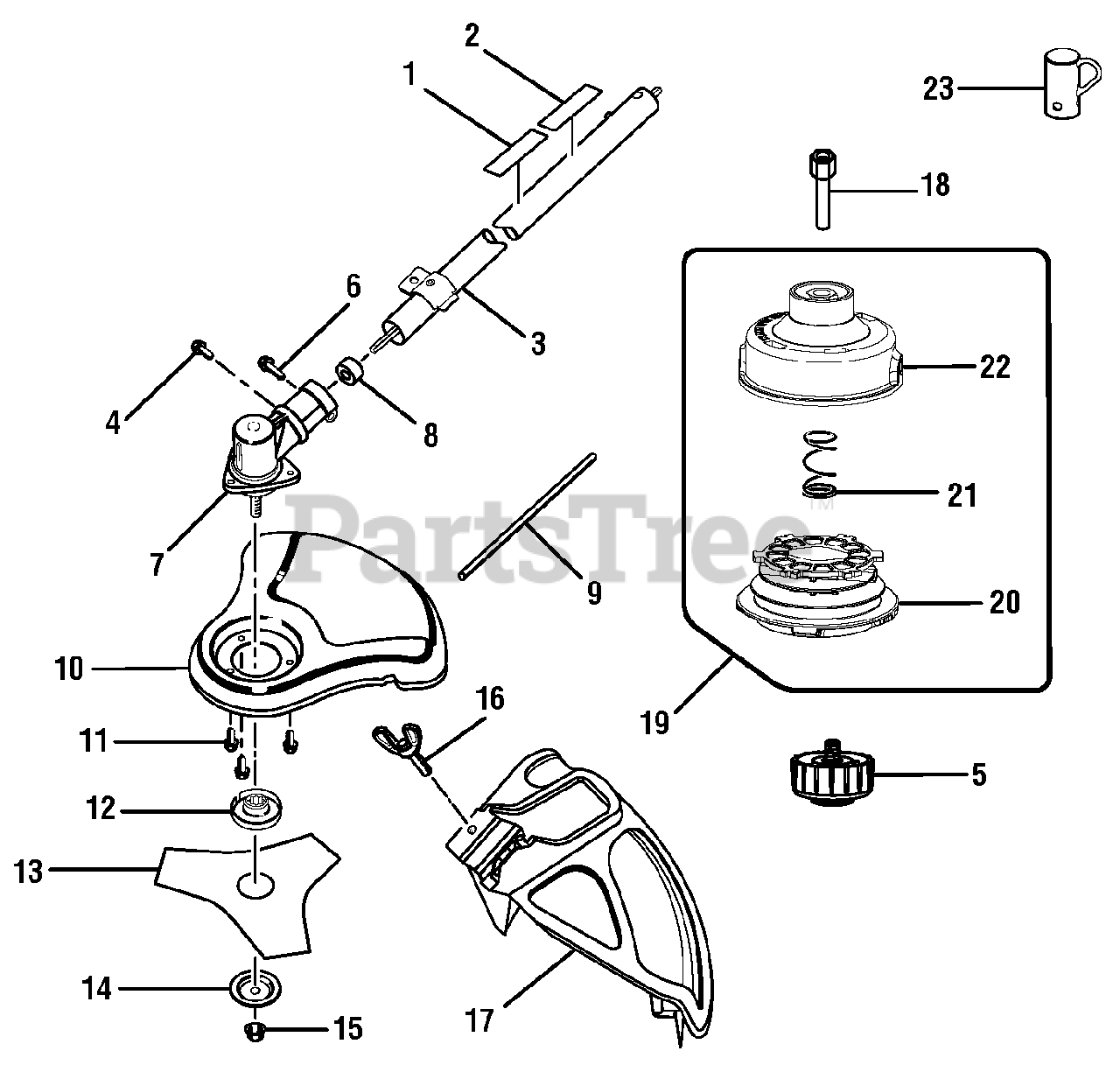

RY 28161 - Ryobi Brush Cutter, 26cc Figure B Parts Diagram

Brush Cutter, 26cc

Figure B Parts Diagram

  • Title

1

Homelite 940726013

Expand-it Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940627027

Brushcutter Safety Label
(Superseded to 984102002)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308035046

Lower Straight Shaft Boom Assembly

$16.99

$

Usually ships in 3-7 days

0

4

Homelite 660641001

Screw (10-24 x 5/8 in.)

$1.49

$

Usually ships in 3-7 days

0

5

Homelite 308042003

Spool Retainer

$1.49

$

Usually ships in 3-7 days

0

6

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 308210001

Gear Head
(Superseded to 308210008)

$

$

Not available

8

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

9

Homelite 678020001

Gear Head Locking Tool
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

10

Homelite 638120001

Brushcutter Guard

$

$

Not available

11

Homelite 660737001

Screw (10-24 x 1/2 in.)
(Superseded to 88049)

$

$

Not available

12

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

13

Homelite 638006004

Blade

$12.99

$

Usually ships in 3-7 days

0

14

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$2.49

$

In Stock, only 1 left!

0

15

Homelite 678018001

Blade Nut
(Superseded to 04277)

$

$

Not available

16

Homelite 660886001

Screw (1/4-20 x 1-1/4 in.)

$1.49

$

In Stock, only 2 left!

0

17

Homelite 308473001

Grass Deflector Assembly

Note: (Inc. Key No. 16)

$

$

Not available

18

Homelite 678019001

Arbor

$2.49

$

In Stock, only 1 left!

0

19

Homelite 309562005

String Head Assembly

Note: (Inc. Key Nos. 20-22)

$7.49

$

In Stock, only 1 left!

0

20

Homelite 310412003

Spool Assembly

$

$

Not available

21

Homelite 679958001

Spring

$1.49

$

In Stock, only 4 left!

0

22

Homelite 310643003

String Head Housing

$

$

Not available

23

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0
