RY 30004 A - Ryobi Brush Cutter, 30cc Lower Boom Assembly Parts Diagram

Brush Cutter, 30cc

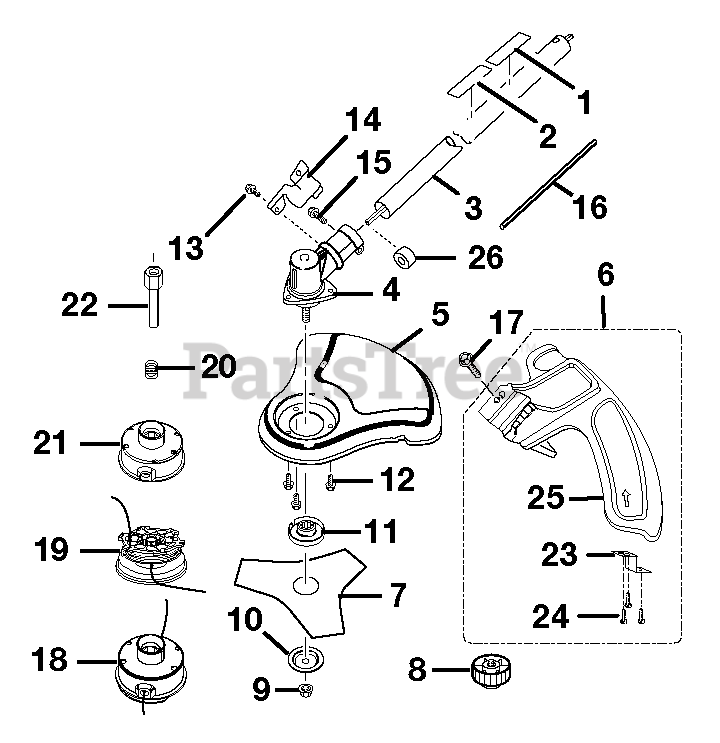

Lower Boom Assembly Parts Diagram

  • Title

1

Homelite 985165001

EXPAND-IT LABEL

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 984102002

BRUSHCUTTER SAFETY LABEL

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 985390001

STRAIGHT SHAFT ASSEMBLY
(Superseded to 000998241)

$

$

Not available

4

Homelite PA01364

GEAR HEAD
(Superseded to 308210008)

$

$

Not available

5

Homelite PS03538

BRUSHCUTTER GUARD
(Superseded to 638120001)

$

$

Not available

6

Homelite 984443004

GRASS DEFLECTOR ASSEMBLY
(Superseded to 308252001)

$

$

Not available

7

Homelite 06297

TRI-ARC BLADE
(Superseded to 638006004)

$12.99

$

Usually ships in 3-7 days

0

8

Homelite A97910A

SPOOL RETAINER (LHT)
(Superseded to 308042003)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 04277

LOCK NUT
(Superseded to 678018001)

$

$

Not available

10

Homelite 04409

CUPPED WASHER

$2.49

$

In Stock, only 1 left!

0

11

Homelite 04168A

FLANGED WASHER
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

12

Homelite 88049

SCREW (10-24 X 1/2 in.)

$

$

Not available

13

Homelite 983774003

SCREW (10-24 X 5/8 in.)

$1.49

$

In Stock, only 1 left!

0

14

Homelite PS04420

CLAMP

$2.99

$

In Stock, only 2 left!

0

15

Homelite 983381007

SCREW (1/4-20 X 1-1/4 in.)

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 00063

HOLDING PIN
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

17

Homelite 983379078

SCREW (1/4-2- X 1-1/4 in.)

$

$

Not available

18

Homelite AP04101

STRINGHEAD (.095 IN.)
(Superseded to 000998265)

$60.99

$

Usually ships in 3-7 days

0

19

Homelite 984238001

SPOOL AND STRING (.095 in.)
(Superseded to 308044003)

$

$

Not available

20

Homelite 06713

SPRING

$1.49

$

In Stock, only 2 left!

0

21

Homelite A98231A

HOUSING AND EYELET
(Superseded to 099068001005)

$

$

Not available

22

Homelite PS04438

ADAPTER SHAFT
(Superseded to 678019002)

$2.49

$

In Stock, only 3 left!

0

23

Homelite PS04379

BLADE

$

$

Not available

24

Homelite 82543

SCREW, THREAD FORMING

$

$

Not available

25

Homelite 984099001

GRASS DEFLECTOR
(Superseded to 308473001)

$

$

Not available

26

Homelite 985625001

SPACER
(Superseded to 518367001)

$1.49

$

In Stock, Qty 5

0
