RY 30130 - Ryobi String Trimmer with Expand-It Edger Attachment, 30cc Edger Assembly Parts Diagram

String Trimmer with Expand-It Edger Attachment, 30cc

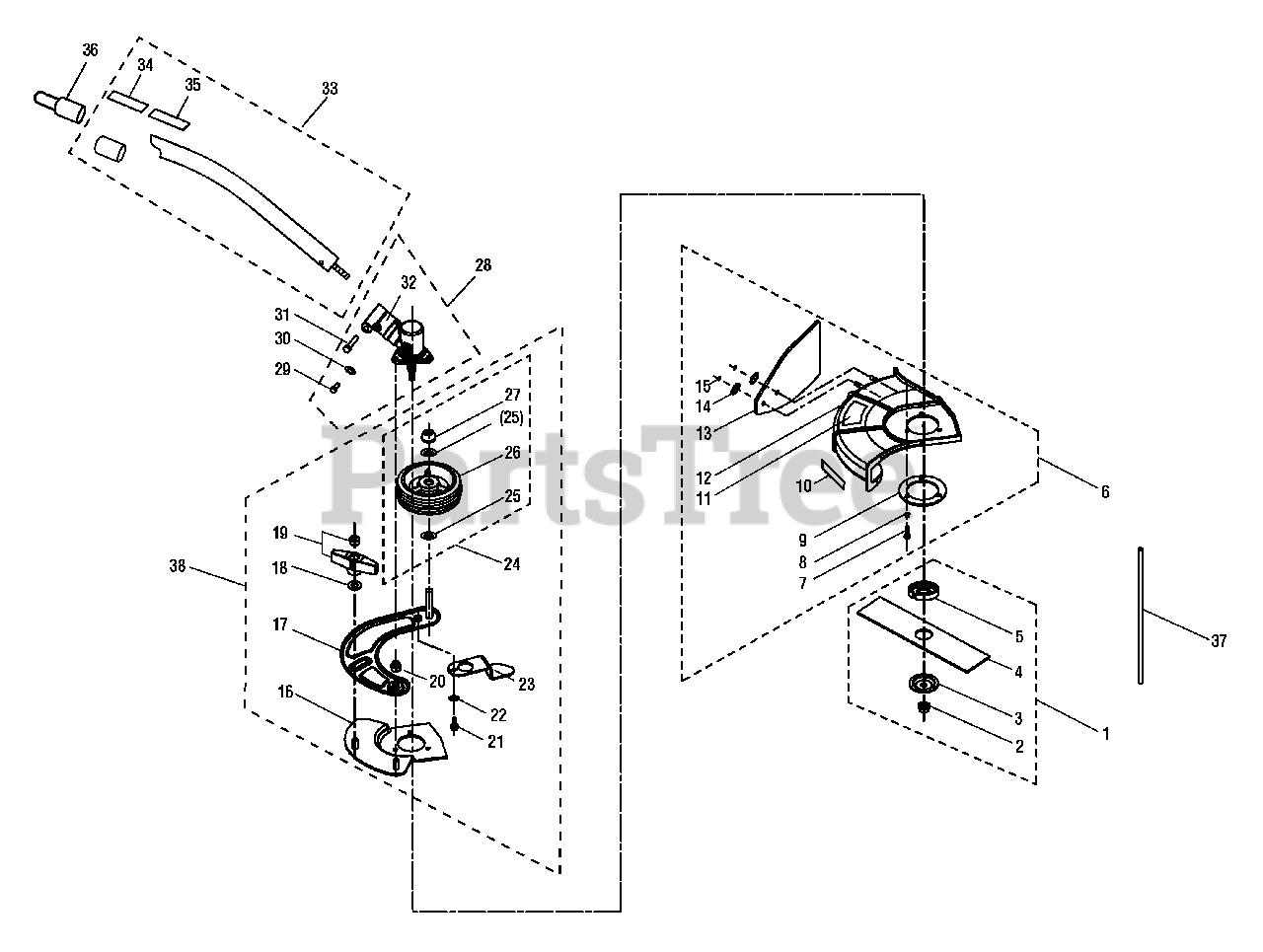

Edger Assembly Parts Diagram

  • Title

1

Homelite 099078001001

Blade Assembly

Note: (Includes Key Nos. 2-5)

$21.99

$

Usually ships in 3-7 days

0

2

Homelite 099078001002

Lock Nut (M8)
(Superseded to 662450001)

Note: May Be Purchased Locally

$1.49

$

In Stock, only 4 left!

0

3

Homelite 099078001003

Cupped Washer

$

$

Not available

4

Homelite 099078001004

Blade
(Superseded to 638006005)

$

$

Not available

5

Homelite 099078001005

Flanged Washer

$6.49

$

Usually ships in 3-7 days

0

6

Homelite 099078001006

Blade Guard Assembly
(Superseded to UT15518D-05)

Note: (Includes Key Nos. 7-15)

$26.99

$

Usually ships in 3-7 days

0

7

Homelite 099078001007

Screw (10-24 X 5/8 in. Hex Hd.)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 099078001008

Lock Washer (5 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 099078001009

Flange

$

$

Not available

10

Homelite 099078001010

Warning Decal

$

$

Not available

11

Homelite 099078001011

Expand-it Logo Label

$

$

Not available

12

Homelite 099078001012

Blade Guard

$13.99

$

Usually ships in 3-7 days

0

13

Homelite 099078001013

Drag Flap

$

$

Not available

14

Homelite 099078001014

Washer (6 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

15

Homelite 099078001015

Hex Nut (M6)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 099078001017

Support Plate

$

$

Not available

17

Homelite 099078001018

Wheel Mounting Plate

$

$

Not available

18

Homelite 099078001019

Washer (10 mm)

Note: May Be Purchased Locally

$

$

Not available

19

Homelite 099078001020

Adjusting Knob With Hex Nut

$1.49

$

Usually ships in 3-7 days

0

20

Homelite 099078001021

Hex Lock Nut (M8)

Note: May Be Purchased Locally

$

$

Not available

21

Homelite 099078001022

Screw (M5 X 16 mm Hex Hd.)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 099078001023

Washer (5 mm)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

23

Homelite 099078001024

Curb Guide

$

$

Not available

24

Homelite 099078001025

Wheel Assembly

Note: (Includes Key Nos. 25-27)

$

$

Not available

25

Homelite 099078001026

Washer (10 mm)

Note: May Be Purchased Locally

$1.49

$

In Stock, only 4 left!

0

26

Homelite 099078001027

Wheel

$

$

Not available

27

Homelite 099078001028

Push Nut (10 mm)

Note: May Be Purchased Locally

$1.49

$

In Stock, Qty 5

0

28

Homelite 099078001029

Gear Head & Screw Assembly

Note: (Includes Key Nos. 29-32)

$73.99

$

Usually ships in 3-7 days

0

29

Homelite 099078001030

Screw (M5 X 12 mm Hex Hd.)

Note: May Be Purchased Locally

$

$

Not available

30

Homelite 099078001031

Lock Washer (5 mm)

Note: May Be Purchased Locally

$

$

Not available

31

Homelite 099078001032

Cap Screw (M6 X 30 mm)
(Superseded to 983381007)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

32

Homelite 099078001033

Gear Head Assembly
(Superseded to 308210008)

$

$

Not available

33

Homelite 099078001034

Boom Assembly

Note: (Includes Key Nos. 34-35)

$

$

Not available

34

Homelite 099078001038

Warning Decal

$

$

Not available

35

Homelite 099078001041

Warning Label (UL)

$

$

Not available

36

Homelite 099078001039

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

37

Homelite 099078001040

Holding Pin

$1.49

$

In Stock, only 4 left!

0

38

Homelite 099078001016

Support Arm Assembly

Note: (Includes Key Nos.16-24)

$

$

Not available
