RY 30130 - Ryobi String Trimmer with Expand-It Edger Attachment, 30cc Upper Boom / Handle Assembly Parts Diagram

String Trimmer with Expand-It Edger Attachment, 30cc

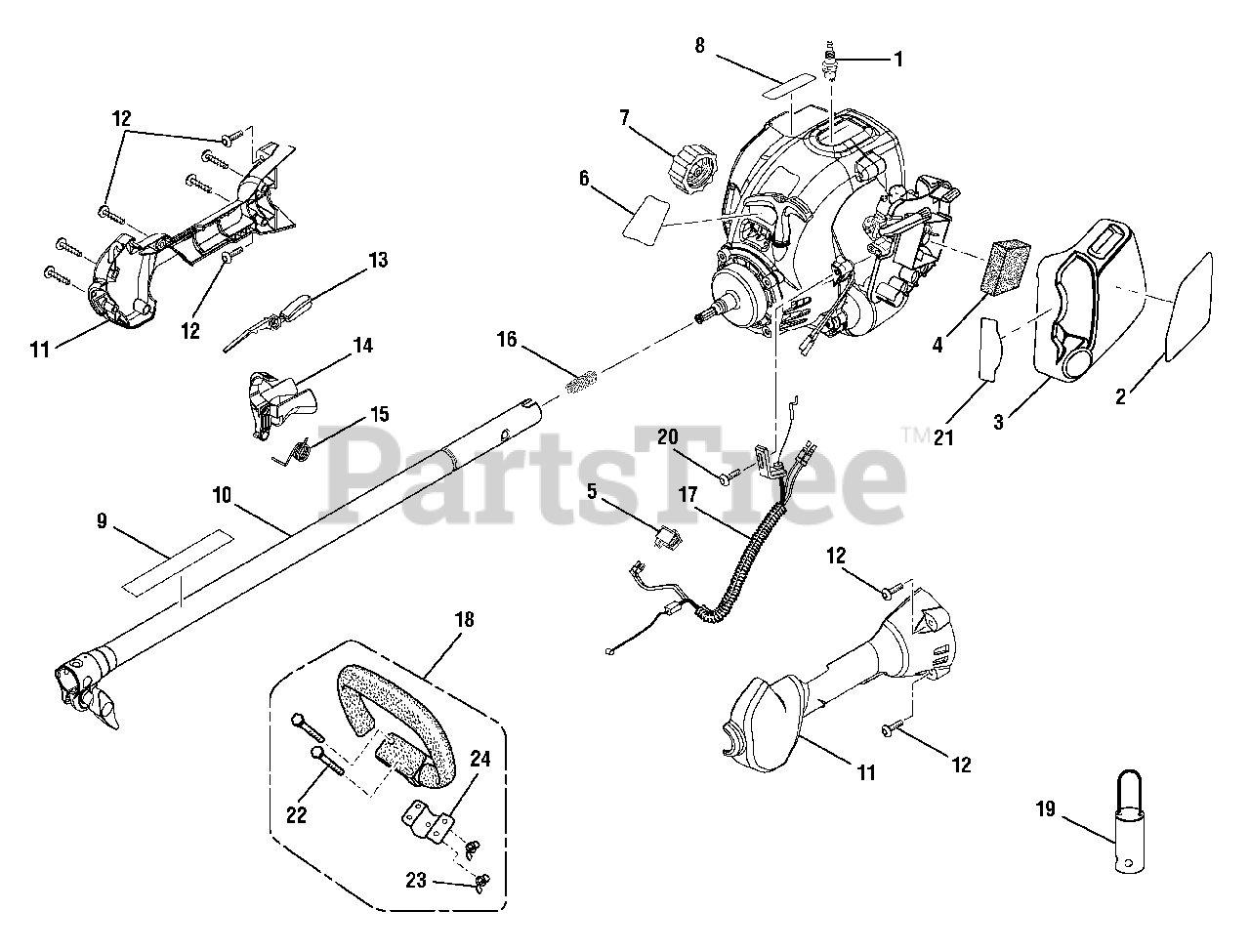

Upper Boom / Handle Assembly Parts Diagram

  • Title

1

Homelite 870170001

Spark Plug (Champion RCJ4)

Note: May Be Purchased Locally

$10.99

$

Usually ships in 3-7 days

0

2

Homelite 940967004

Starting Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 518096001

Air Box Cover

$

$

Not available

4

Homelite 900952001

Air Filter Element
(Superseded to 98760)

$1.49

$

In Stock, Qty 7

0

5

Homelite 760363002

Switch (Momentary Contact)
(Superseded to PS02764)

$

$

Not available

6

Homelite 940627021

Model Label
(Superseded to 985162001)

$1.49

$

Usually ships in 3-7 days

0

7

Homelite 300758006

Fuel Cap Assembly

$

$

Not available

8

Homelite 940299600

Logo Plate
(Superseded to 985157001)

$1.49

$

Usually ships in 3-7 days

0

9

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

10

Homelite 000998237

Upper Boom Assembly
(Superseded to 000998353)

Note: (Includes Key No. 9)

$

$

Not available

11

Homelite 000998236

Control Handle Assembly

$

$

Not available

12

Homelite 660618002

Screw (10-14 x 1 in.)
(Superseded to 82589)

Note: May Be Purchased Locally

$1.99

$

Usually ships in 3-7 days

0

13

Homelite 518011002

Trigger Lock
(Superseded to PS06258)

$

$

Not available

14

Homelite 518012002

Trigger
(Superseded to PS06259)

$1.49

$

In Stock, only 1 left!

0

15

Homelite 678021001

Torsion Spring
(Superseded to PS01718)

$1.49

$

In Stock, only 2 left!

0

16

Homelite 678252001

Compression Spring

$

$

Not available

17

Homelite 308439001

Throttle and Lead Assembly

$8.99

$

In Stock, only 1 left!

0

18

Homelite 308472001

Front Handle Assembly

$

$

Not available

19

Homelite 518019001

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

20

Homelite 660616001

Screw (10-24 x 7/8 in.)

$

$

Not available

21

Homelite 940330006

Choke Label

$1.49

$

Usually ships in 3-7 days

0

22

Homelite 660881001

Bolt (M5 x 30 mm Hex Hd.)

Note: May Be Purchased Locally

$

$

Not available

23

Homelite 678256001

Wing Nut (M5)

Note: May Be Purchased Locally

$1.49

$

Usually ships in 3-7 days

0

24

Homelite 638008001

Handle Bar Clamp
(Superseded to 984251001)

$6.49

$

Usually ships in 3-7 days

0

Homelite 983000903

Operator's Manual

$

$

Not available

Homelite NLA

Replacement Parts List

$

$

Currently unavailable
