RY 30564 - Ryobi Brush Cutter, 30cc Figure C Parts Diagram

Brush Cutter, 30cc

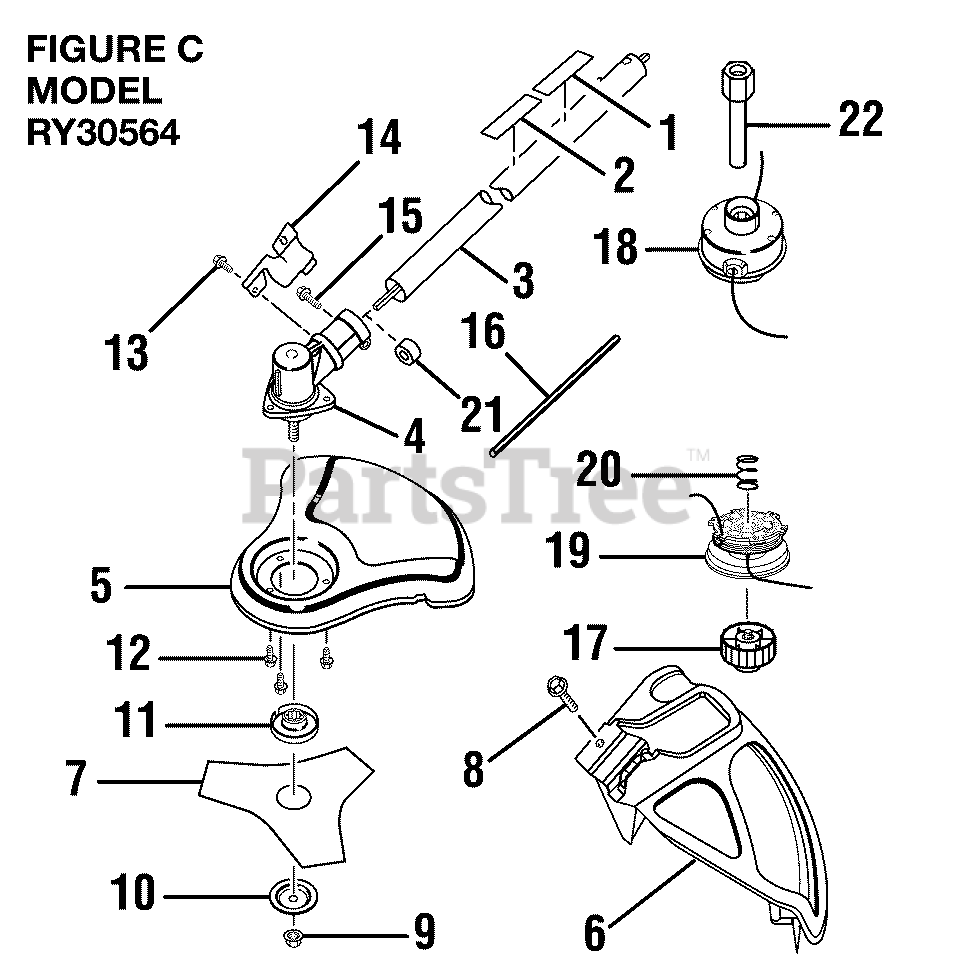

Figure C Parts Diagram

  • Title

1

Homelite 940627024

Expand-it Label
(Superseded to 985165001)

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940627027

Brushcutter Safety Label
(Superseded to 984102002)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 000998241

Straight Shaft Assembly

$

$

Not available

4

Homelite 308053001

Gear Head
(Superseded to 308210008)

$

$

Not available

5

Homelite 638120001

Brushcutter Guard

$

$

Not available

6

Homelite 308473001

Grass Deflector Assy

$

$

Not available

7

Homelite 638006004

Tri-Arc® Blade

$12.99

$

Usually ships in 3-7 days

0

8

Homelite 660886001

Screw (1/4-20 x 1-1/4 in.)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

In Stock, only 2 left!

0

9

Homelite 678018001

Lock Nut
(Superseded to 04277)

$

$

Not available

10

Homelite 638017001

Cupped Washer
(Superseded to 04409)

$2.49

$

In Stock, only 1 left!

0

11

Homelite 678011001

Flanged Washer
(Superseded to 099078001005)

$6.49

$

Usually ships in 3-7 days

0

12

Homelite 660737001

Screw (10-24 x 1/2 in.)
(Superseded to 88049)

Note: Purchase locally from retailer where unit was purchased.

$

$

Not available

13

Homelite 660736001

Screw (10-24 x 5/8 in.)
(Superseded to 983774003)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

In Stock, only 1 left!

0

14

Homelite 638125001

Clamp
(Superseded to PS04420)

$2.99

$

In Stock, only 2 left!

0

15

Homelite 660642001

Screw (1/4-20 x 1-1/4 in.)
(Superseded to 983381007)

Note: Purchase locally from retailer where unit was purchased.

$1.49

$

Usually ships in 3-7 days

0

16

Homelite 678020001

Holding Pin
(Superseded to 099078001040)

$1.49

$

In Stock, only 4 left!

0

17

Homelite 308042003

Spool Retainer (Red)

$1.49

$

Usually ships in 3-7 days

0

18

Homelite 000998361

Complete String Head (.095 in.)
(Superseded to 000998265)

Note: Inc Key Nos 17, 19, and 20

$60.99

$

Usually ships in 3-7 days

0

19

Homelite 308044008

Spool and String (.095 in.)

$

$

Not available

20

Homelite 678022001

Compression Spring
(Superseded to 099068001004)

$1.49

$

In Stock, only 2 left!

0

21

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

22

Homelite 678019002

Shaft Adapter

$2.49

$

In Stock, only 3 left!
