RY 34446 - Ryobi String Trimmer, 30cc Figure C Parts Diagram

String Trimmer, 30cc

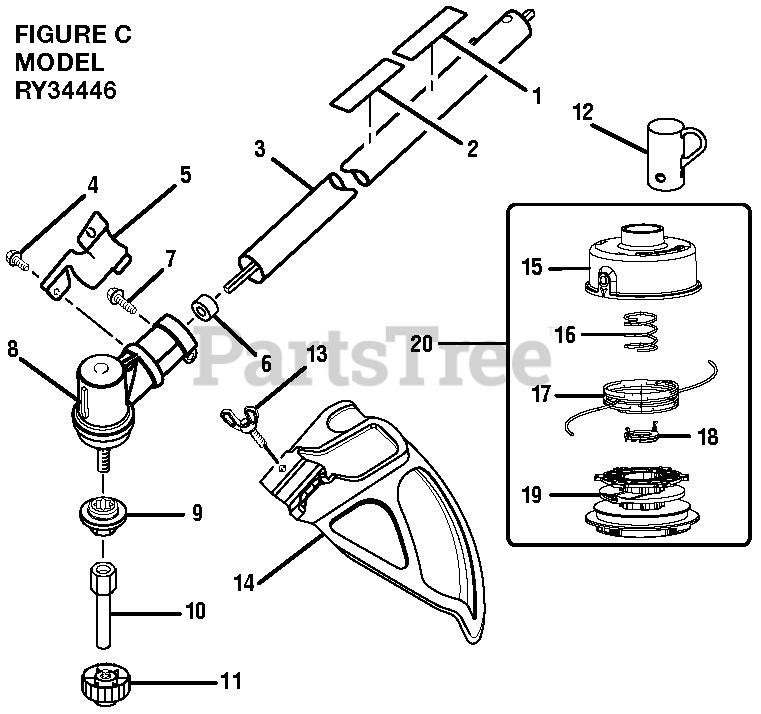

Figure C Parts Diagram

  • Title

1

Homelite 940726013

Expand-it Label

$1.49

$

Usually ships in 3-7 days

0

2

Homelite 940230132

Warning Decal
(Superseded to 984032001)

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 308035013

Straight Shaft Assembly

$

$

Not available

4

Homelite 660736001

Screw (10-24 x 5/8 in.)
(Superseded to 983774003)

$1.49

$

In Stock, only 1 left!

0

5

Homelite 638125001

Clamp
(Superseded to PS04420)

$2.99

$

In Stock, only 2 left!

0

6

Homelite 518367001

Spacer

$1.49

$

In Stock, Qty 5

0

7

Homelite 660642001

Screw (1/4-20 x 1-1/4 in., Hex Hd.)
(Superseded to 983381007)

$1.49

$

Usually ships in 3-7 days

0

8

Homelite 308210002

Gear Head
(Superseded to 308210009)

$28.99

$

Usually ships in 3-7 days

0

9

Homelite 678011002

Flanged Washer

$

$

Not available

10

Homelite 678019002

Stringhead Adapter w/Shaft

$2.49

$

In Stock, only 3 left!

0

11

Homelite 308042003

Spool Retainer (Red)

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

13

Homelite 660886001

Wing Screw (1/4-20 x 1-1/4 in.)

$1.49

$

In Stock, only 2 left!

0

14

Homelite 308473001

Grass Deflector Assembly

$

$

Not available

15

Homelite 310643003

Main Housing

$

$

Not available

16

Homelite 679958001

Compression Spring

$1.49

$

In Stock, only 4 left!

0

17

Homelite 900880000

Cutting Line

$

$

Currently unavailable

18

Homelite 525098001

Cover-Spool

$1.49

$

Usually ships in 3-7 days

0

19

Homelite 524999001

Spool

$

$

Not available

20

Homelite 309562005

Reel Easy String Cutting Head Assembly

Note: (Inc. 15-19)

$7.49

$

In Stock, only 1 left!

0
