RY 4 CCS (090432041) - Ryobi String Trimmer, 30cc, Rev 01 (2020-09) FIGURE C Parts Diagram

String Trimmer, 30cc, Rev 01

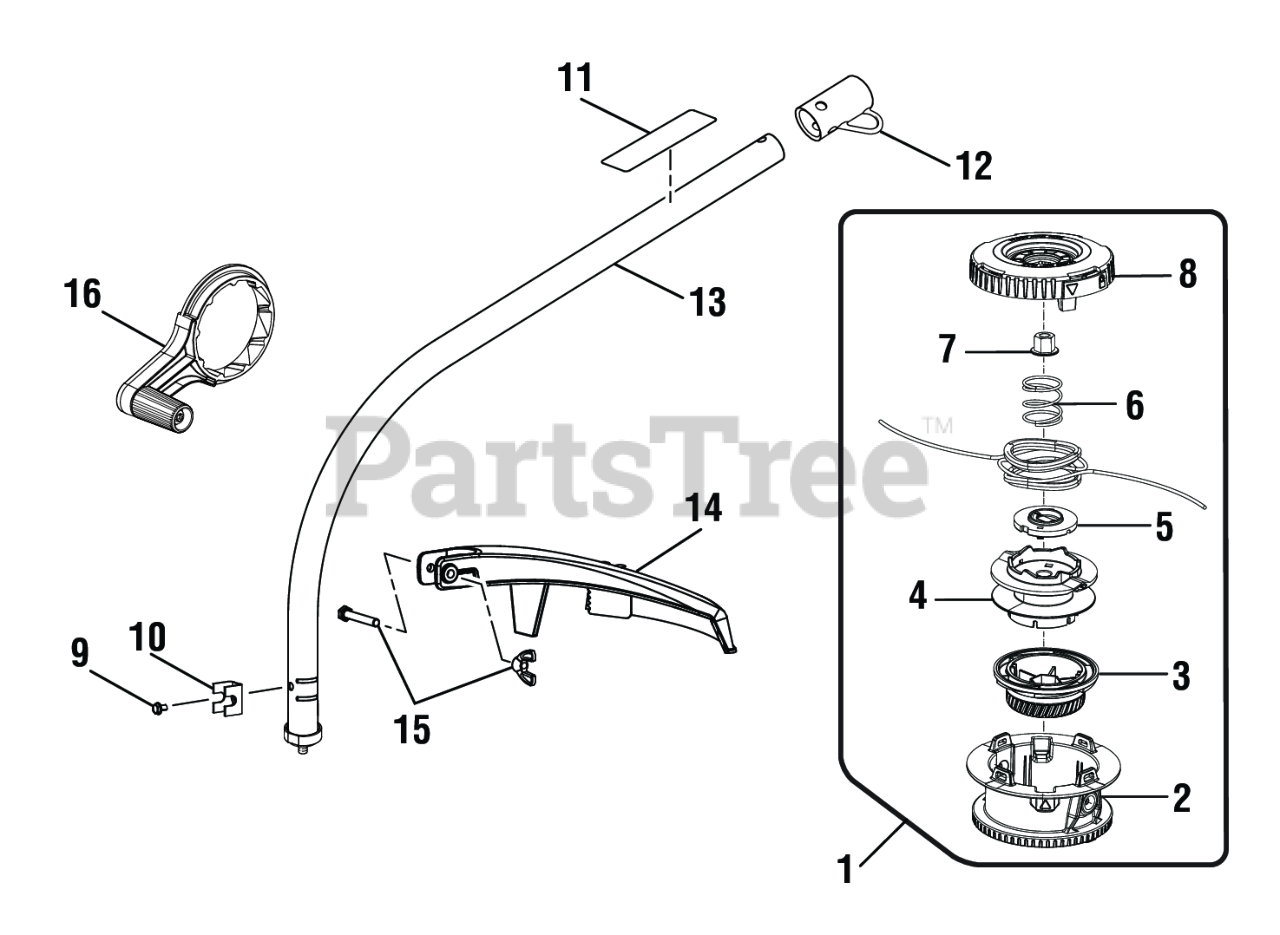

FIGURE C Parts Diagram

  • Title

1

Homelite 314608001

Trimmer Head Assembly (.095) (Inc. Key Nos. 2-8)

$33.99

$

In Stock, only 1 left!

0

2

Homelite 537189001

Bump Head

$8.99

$

Usually ships in 3-7 days

0

3

Homelite 530455002

Bump Knob (Green)

$2.49

$

Usually ships in 3-7 days

0

4

Homelite 530670001

Spool Assembly

$1.99

$

In Stock, only 4 left!

0

5

Homelite 529803001

String Guide

$1.49

$

In Stock, only 3 left!

0

6

Homelite 679958001

Compression Spring

$1.49

$

In Stock, Qty 7

0

7

Homelite 662569001

Flange Nut (M8)

$1.49

$

In Stock, only 4 left!

0

8

Homelite 314796001

Locking Assembly

$12.99

$

In Stock, only 1 left!

0

9

Homelite 660647001

Screw (#10-32 x 3/8 in., Hex Washer Hd. S.T.)

$1.49

$

In Stock, only 2 left!

0

10

Homelite 638001001

CLAMP

$1.49

$

In Stock, only 2 left!

0

11

Homelite 940657165

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

12

Homelite 518019002

Storage Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

13

Homelite 205371001

Curved Shaft Assembly (Inc. Key Nos. 9-12)

$37.99

$

In Stock, only 1 left!

0

14

Homelite 308744010

Grass Deflector Assembly

$8.49

$

In Stock, only 1 left!

0

15

Homelite 205012001

Fastener Parts Kit

$4.49

$

Usually ships in 3-7 days

0

16

Homelite 532048003

Crank Handle

$1.49

$

Usually ships in 3-7 days

0
