RY 40100 - Ryobi 40V Walk-Behind Mower Figure A (Part 2) Parts Diagram

40V Walk-Behind Mower

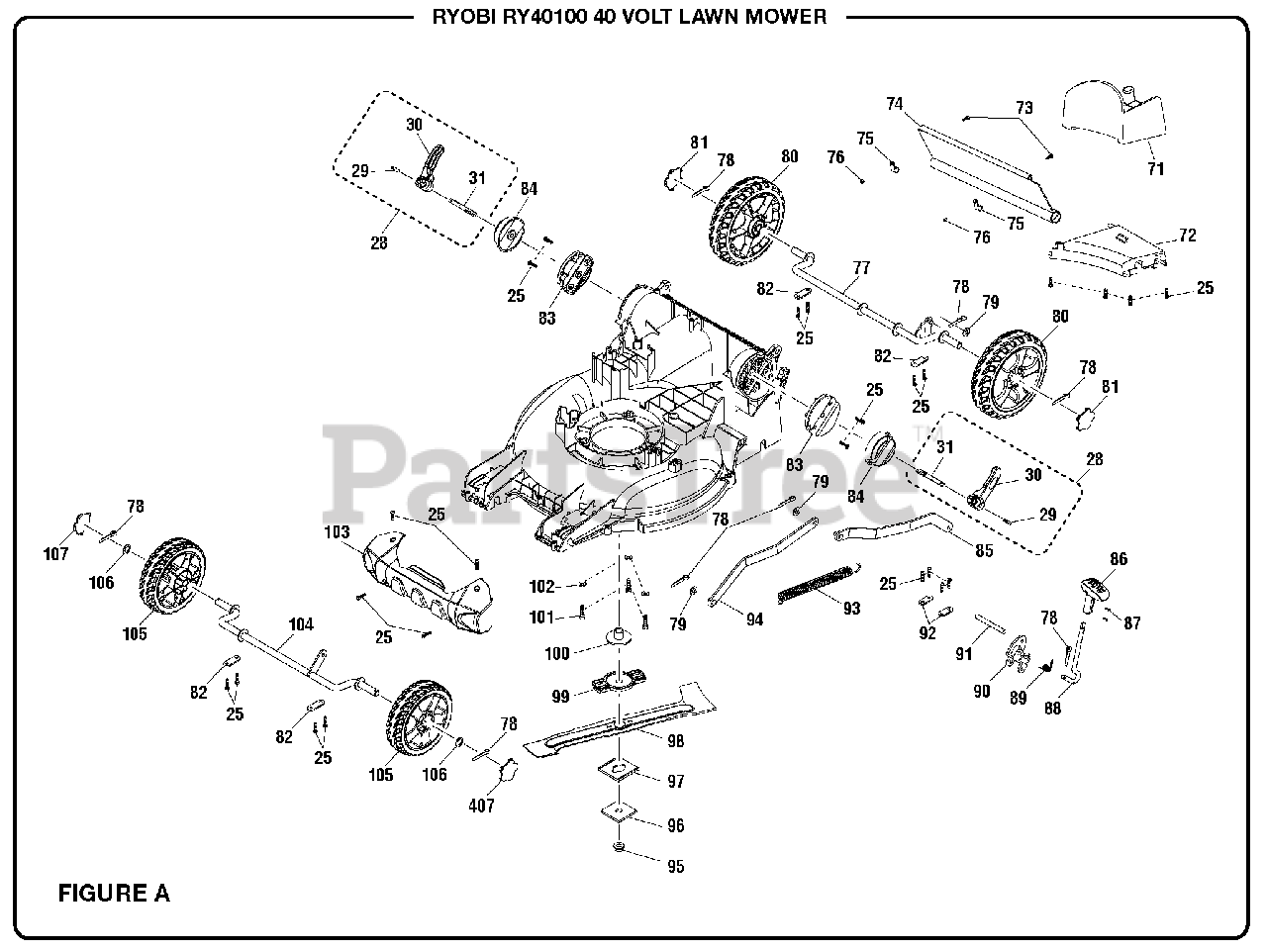

Figure A (Part 2) Parts Diagram

  • Title

71

Homelite 34104470G

Mulching Plug

$

$

Not available

72

Homelite 34103470G

Rear Cover

$

$

Not available

73

Homelite 3220131G

Screw (M4 x 20 mm, Pan Hd.)

$

$

Not available

74

Homelite 3330490AG

Mounting Bracket

$

$

Not available

75

Homelite 3221237G

Lock Nut (M4)

$

$

Not available

76

Homelite 34201470G

Rear Skirt

$

$

Not available

77

Homelite 33302470G

Rear Wheel Axle

$

$

Not available

78

Homelite 3290135G

Cotter Pindia (2.5)

$

$

Not available

79

Homelite 3290413G

Washer (8 mm)

$

$

Not available

80

Homelite 31103470G

Rear Wheel (7 in.)

$

$

Not available

81

Homelite 34108229G

Rear Wheel Cover (7 in.)

$

$

Not available

82

Homelite 33307470G

Axle Pressure Plate

$

$

Not available

83

Homelite 34106470G

Base (Lock Handle)

$

$

Not available

84

Homelite 34105470G

Pressure Block (Lock Handle)

$

$

Not available

85

Homelite 33304470G

Rear Lift Rod

$

$

Not available

86

Homelite 34109470G

Height Adjustment Handle

$

$

Not available

87

Homelite 32201470G

Screw (M3 x 10 mm, Flat Hd.)

$

$

Not available

88

Homelite 33313470G

Height Adjustment Lever

$

$

Not available

89

Homelite 33901470G

Torsion Spring (Height Adjustment)

$

$

Not available

90

Homelite 33305470G

Height Adjustment Bracket

$

$

Not available

91

Homelite 33201470G

Axle (Height Adjustment)

$

$

Not available

92

Homelite 33306470G

Pressure Plate (Height Adjustment)

$

$

Not available

93

Homelite 33902470G

Retention Spring

$

$

Not available

94

Homelite 33303470G

Front Lift Rod

$

$

Not available

95

Homelite 3221037G

Blade Nut (M10 x 1.25, Hex Hd.)

$

$

Not available

96

Homelite 3331435G

Blade Retainer

$

$

Not available

97

Homelite 3410535G

Spacer

$

$

Not available

98

Homelite 33307468G

Blade

$

$

Not available

99

Homelite 34117470G

Blade Holder

$

$

Not available

100

Homelite 3320238G

Motor Shaft Bushing

$

$

Not available

101

Homelite 3220135G

Bolt (M6 x 25 mm, Hex Hd.)

$

$

Not available

102

Homelite 3330226G

Washer (6 x 18 x 1.3t)

$

$

Not available

103

Homelite 34113470G

Bumper

$

$

Not available

104

Homelite 33301470G

Front Wheel Axle

$

$

Not available

105

Homelite 31102470G

Front Wheel (6 in.)

$

$

Not available

106

Homelite 3331638G

Washer (13.5 x 20 x 1.5t)

$1.49

$

In Stock, only 2 left!

0

107

Homelite 3411799G

Front Wheel Cover (6 in.)

$

$

Not available

Homelite 988000870

Operator's Manual

Note: Not Shown

$

$

Currently unavailable
