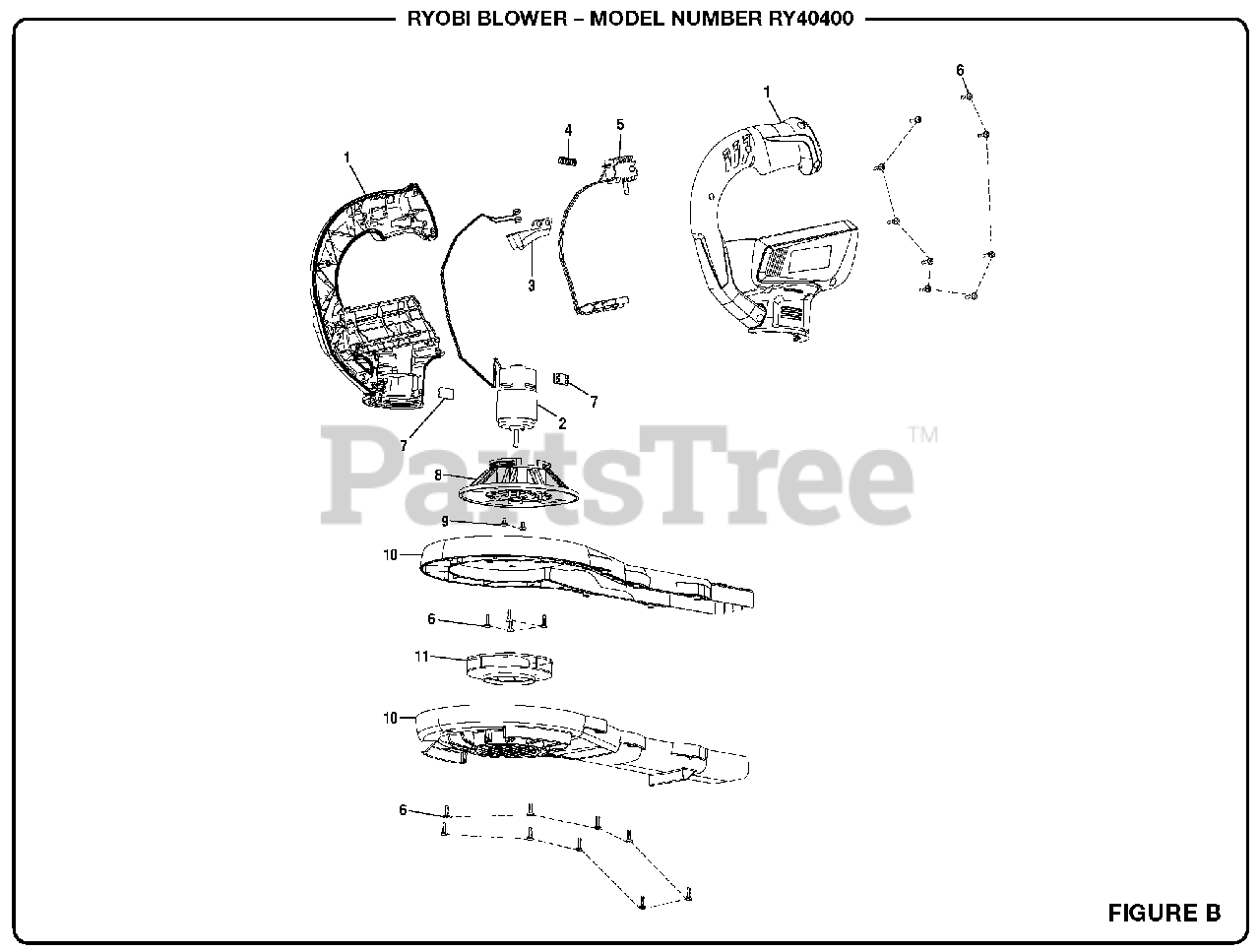

RY 40400 - Ryobi Blower Figure B Parts Diagram

Blower

Figure B Parts Diagram

  • Title

1

Homelite 31109207G

Handle Assembly

$

$

Currently unavailable

2

Homelite 099965002002

Motor Assembly

$

$

Not available

3

Homelite 099965002004

Switch Trigger

$

$

Not available

4

Homelite 099965002003

Compression Spring

$

$

Not available

5

Homelite 099965002005

Switch Assembly

$

$

Not available

6

Homelite 099965002006

Screw (M4 x 14 mm)

$

$

Currently unavailable

7

Homelite 099965002011

Rubber Pad

$

$

Not available

8

Homelite 099965002007

Motor Mount

$

$

Not available

9

Homelite 099965002008

Screw w/Washer (M4 x 10 mm)

$

$

Not available

10

Homelite 31110207G

Blower Housing Assembly

$

$

Not available

11

Homelite 099965002010

Impeller

$

$

Not available

Homelite 988000843

Operator's Manual

Note: Not Shown

$

$

Not available
