RY CST55 (090411004) - Ryobi Curved Shaft Trimmer Attachment General Assembly Parts Diagram

Curved Shaft Trimmer Attachment

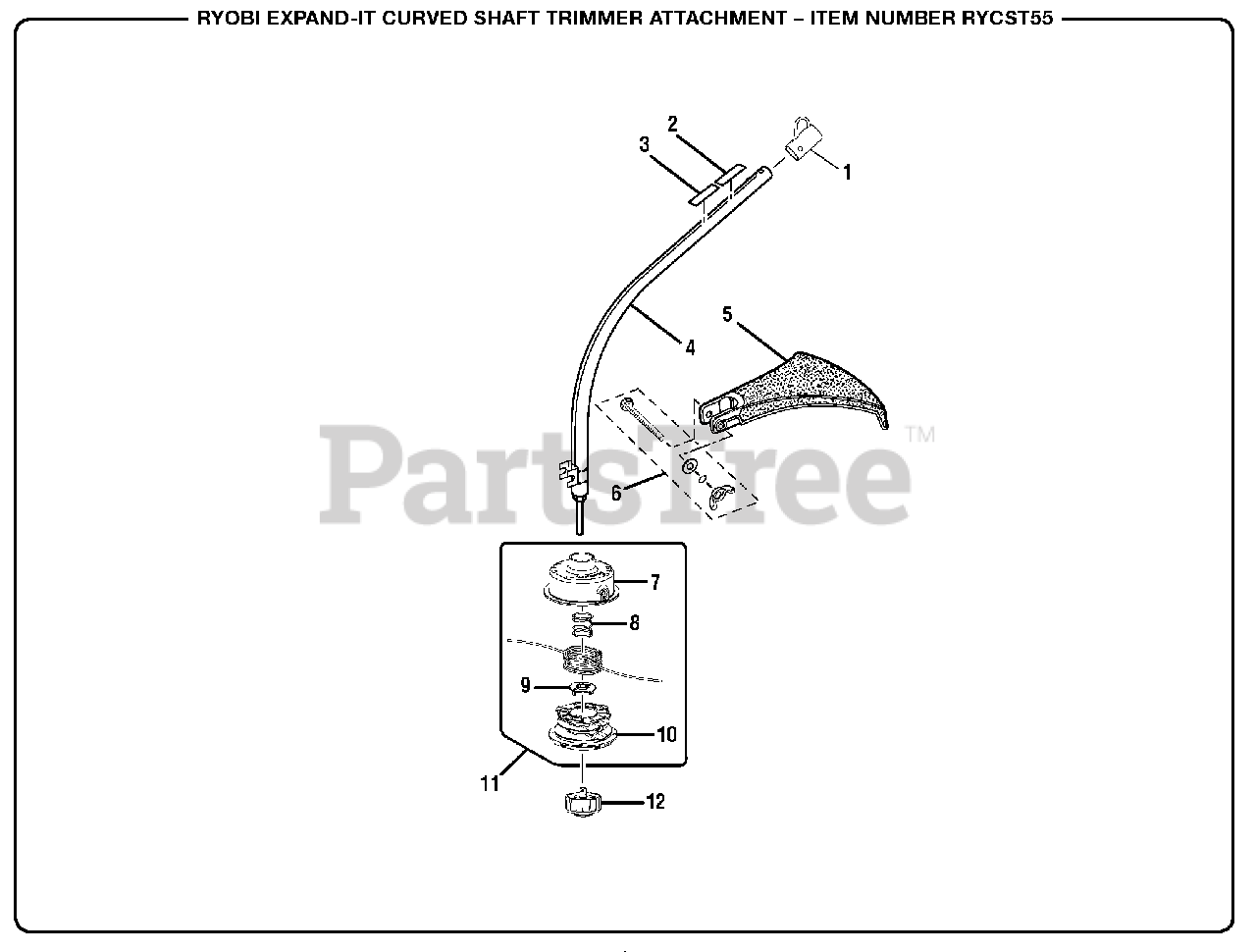

General Assembly Parts Diagram

  • Title

1

Homelite 518019002

Hanger Cap
(Superseded to 518019004)

$1.49

$

In Stock, Qty 6

0

2

Homelite 940657165

Warning Icon Label

$1.49

$

Usually ships in 3-7 days

0

3

Homelite 940726013

Expand-it Logo Label

$1.49

$

Usually ships in 3-7 days

0

4

Homelite 307486001

Curved Shaft Assembly

Note: (Inc. Key Nos.1-3)

$

$

Not available

5

Homelite 308052001

Curved Shaft Grass Deflector
(Superseded to T308744001)

$

$

Not available

6

Homelite 120642001

Washer and Bolt Assembly
(Superseded to A09361)

$1.49

$

In Stock, only 2 left!

0

7

Homelite 310643004

String Head Housing

$3.49

$

In Stock, Qty 5

0

8

Homelite 678022001

Compression Spring
(Superseded to 099068001004)

$1.49

$

In Stock, only 2 left!

0

9

Homelite 526939001

String Guide

$1.49

$

In Stock, only 2 left!

0

10

Homelite 526938001

Spool

$2.99

$

In Stock, Qty 7

0

11

Homelite 309562007

String Head Assembly

Note: (Inc. Key Nos. 7-10)

$

$

Not available

12

Homelite 308042002

Spool Retainer

$

$

Not available

Homelite 991000563

Operator's Manual

Note: NOT SHOWN

$

$

Not available
