RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2013-12) FRAME Parts Diagram

30" Zero-Turn Mower, CARB

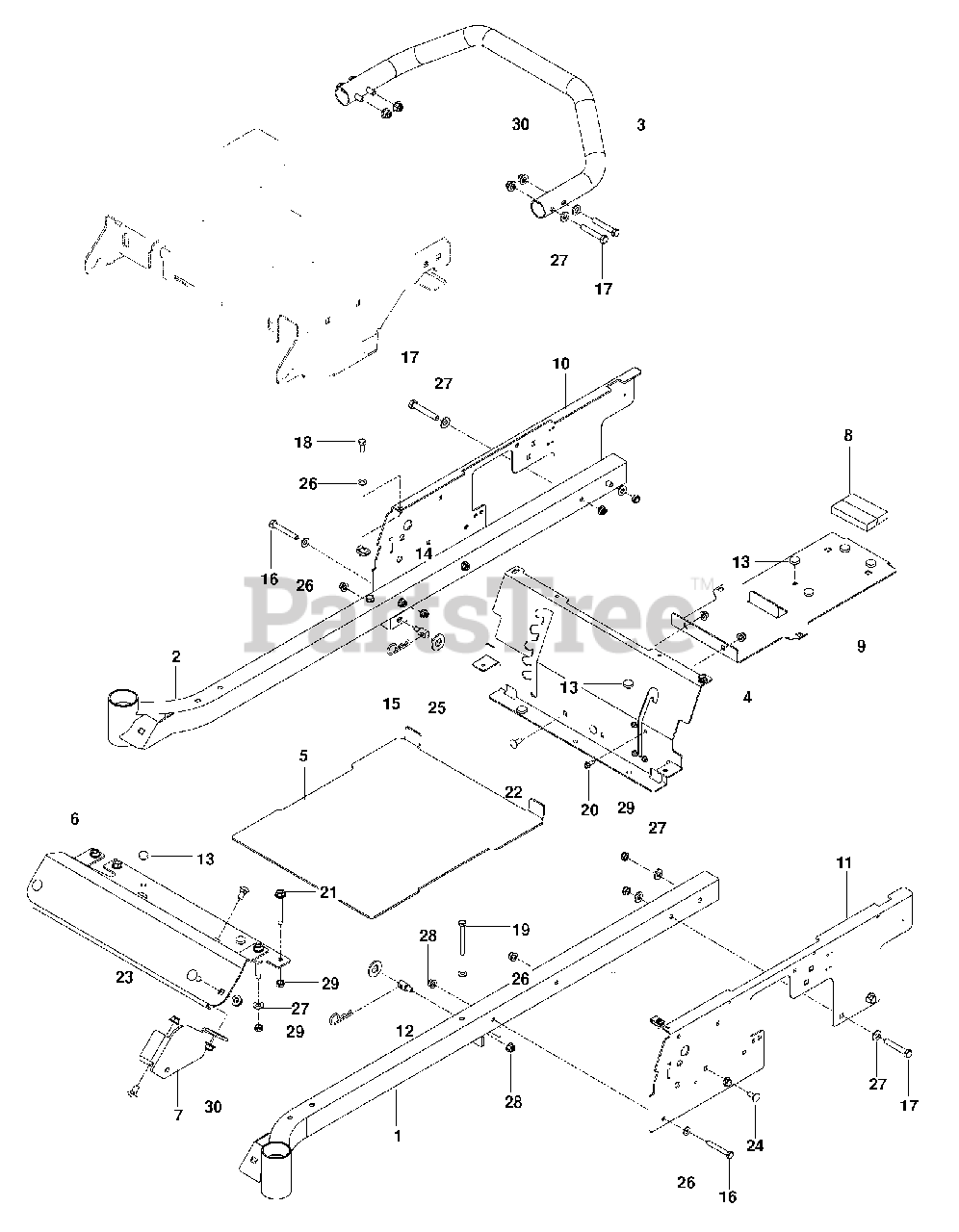

FRAME Parts Diagram

  • Title

1

Husqvarna 525454702

FRAME TUBE, LH, ORG

$182.99

$

Usually ships in 3-10 days

0

2

Husqvarna 525454902

FRAME TUBE, RH, ORG

$182.99

$

Usually ships in 3-10 days

0

3

Husqvarna 525865902

IMPACT BAR, ORG

$

$

Not available

4

Husqvarna 575852102

PANEL, SEAT SUPP. ORG

$

$

Not available

5

Husqvarna 576452401

FOOT PLATE, NARROW, ORG

Note: W / DECALS

$

$

Not available

6

Husqvarna 525835902

FOOT, REST 30/38, ORG

$97.99

$

Usually ships in 3-10 days

0

7

Husqvarna 525605502

BRACKET, FRONT DECK, BLK

$46.99

$

Usually ships in 3-10 days

0

8

Husqvarna 539110290

FOAM STRIP, FUEL TANK

$3.49

$

Usually ships in 3-10 days

0

9

Husqvarna 525798402

SUPPORT, TANK/BATT, BLK

$60.99

$

Usually ships in 3-10 days

0

10

Husqvarna 575328402

PLATE.RH.SIDE.ORANGE

$

$

Not available

11

Husqvarna 575328302

PLATE.LH.SIDE.ORANGE

$

$

Not available

12

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

13

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

14

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 15

0

15

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$4.99

$

Usually ships in 3-10 days

0

17

Husqvarna 874780636

BOLT.HEX
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

18

Husqvarna 874780512

BOLT
(Superseded to 596030501)

$3.99

$

In Stock, Qty 20+

0

19

Husqvarna 874780544

BOLT HEX

$

$

Not available

20

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

21

Husqvarna 874490644

HHFS 3/8-16 X 2-3/4 GR5 ZD

$

$

Not available

22

Husqvarna 872140506

BOLT 5/16-18 X3/4 ZN/YEL GR 5
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 872140608

BOLT D
(Superseded to 872110608)

$3.99

$

In Stock, Qty 10

0

24

Husqvarna 872140606

Bolt

$

$

Not available

25

Husqvarna 819212113

WASHER
(Superseded to 583609901)

$

$

Not available

26

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 819131316

WASHER
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

28

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

In Stock, only 2 left!

0

29

Husqvarna 539200282

NUT HEX 3/8-16 NYLON, THIN

$

$

Not available

30

Husqvarna 521996501

NUT 3/8-16 HEX FLG NYLOC ZD

$

$

Not available
