RZ 3016 CA (966612302) - Husqvarna 30" Zero-Turn Mower, CARB (2013-12) HYDRAULIC PUMP- MOTOR Parts Diagram

30" Zero-Turn Mower, CARB

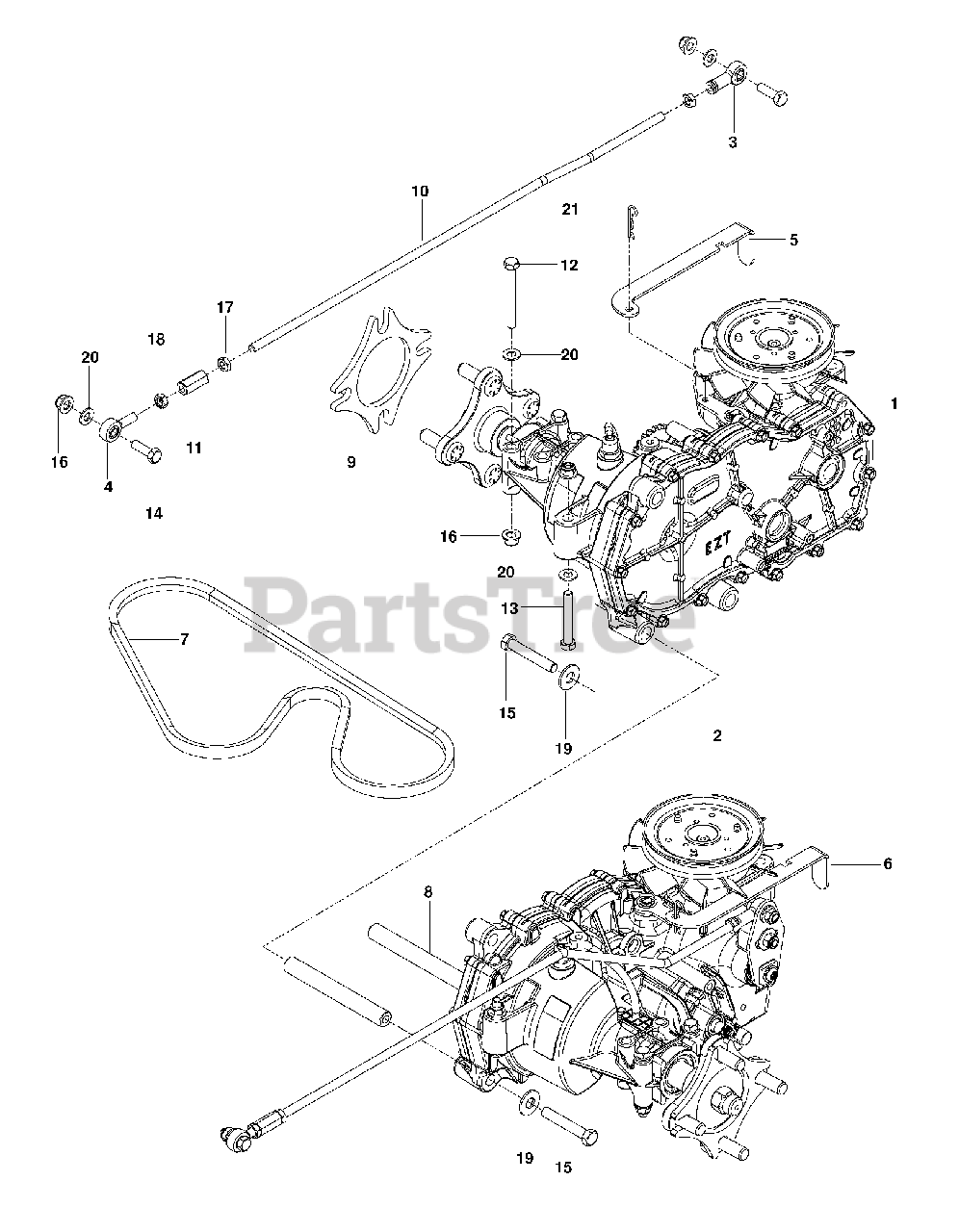

HYDRAULIC PUMP- MOTOR Parts Diagram

  • Title

1

Husqvarna 539120152

HG_HYDRO RH
(Superseded to 539120941)

$1942.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539120153

HG_HYDRO LH

$1455.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539115729

RH ROD END
(Superseded to 579764601)

$8.99

$

In Stock, Qty 6

0

4

Husqvarna 539116690

RB ROD.END.LH
(Superseded to 588692502)

$9.99

$

In Stock, Qty 11

0

5

Husqvarna 539120157

RELEASE LEVER RH

$12.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539120156

RELEASE LEVER LH

$30.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539120806

BELT 30 ZEZT

$27.99

$

In Stock, only 1 left!

0

8

Husqvarna 539120154

HYDRO SPACER

$40.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539114804

SPACER, WHEEL

$10.99

$

In Stock, only 1 left!

0

10

Husqvarna 539120169

CONTROL ROD

$14.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539116689

ROD END COUPLER

$

$

Not available

12

Husqvarna 874780544

BOLT HEX

$

$

Not available

13

Husqvarna 874780536

BOLT.FIN HEX 5/16-18UNC X2 1/4

$4.99

$

Usually ships in 3-10 days

0

14

Husqvarna 874780516

BOLT.FIN.HEX.5/16-18UNC X 1.00

$6.49

$

Usually ships in 3-10 days

0

15

Husqvarna 874780636

BOLT.HEX
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

17

Husqvarna 539115502

NUT 5/16-24 UNF HEX JAM

$3.99

$

In Stock, Qty 5

0

18

Husqvarna 539991073

NUT 5/16F LEFTHAND

$3.99

$

Usually ships in 3-10 days

0

19

Husqvarna 819141614

WASHER 3/8 FLAT
(Superseded to 539990517)

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 819111116

WASHER
(Superseded to 596204101)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539976988

HAIRPIN #2

$3.99

$

Usually ships in 3-10 days

0
