RZ 4219 BF (966514801-00) - Husqvarna 42" Zero-Turn Mower (2010-01) MOWER DECK / CUTTING DECK Parts Diagram

42" Zero-Turn Mower

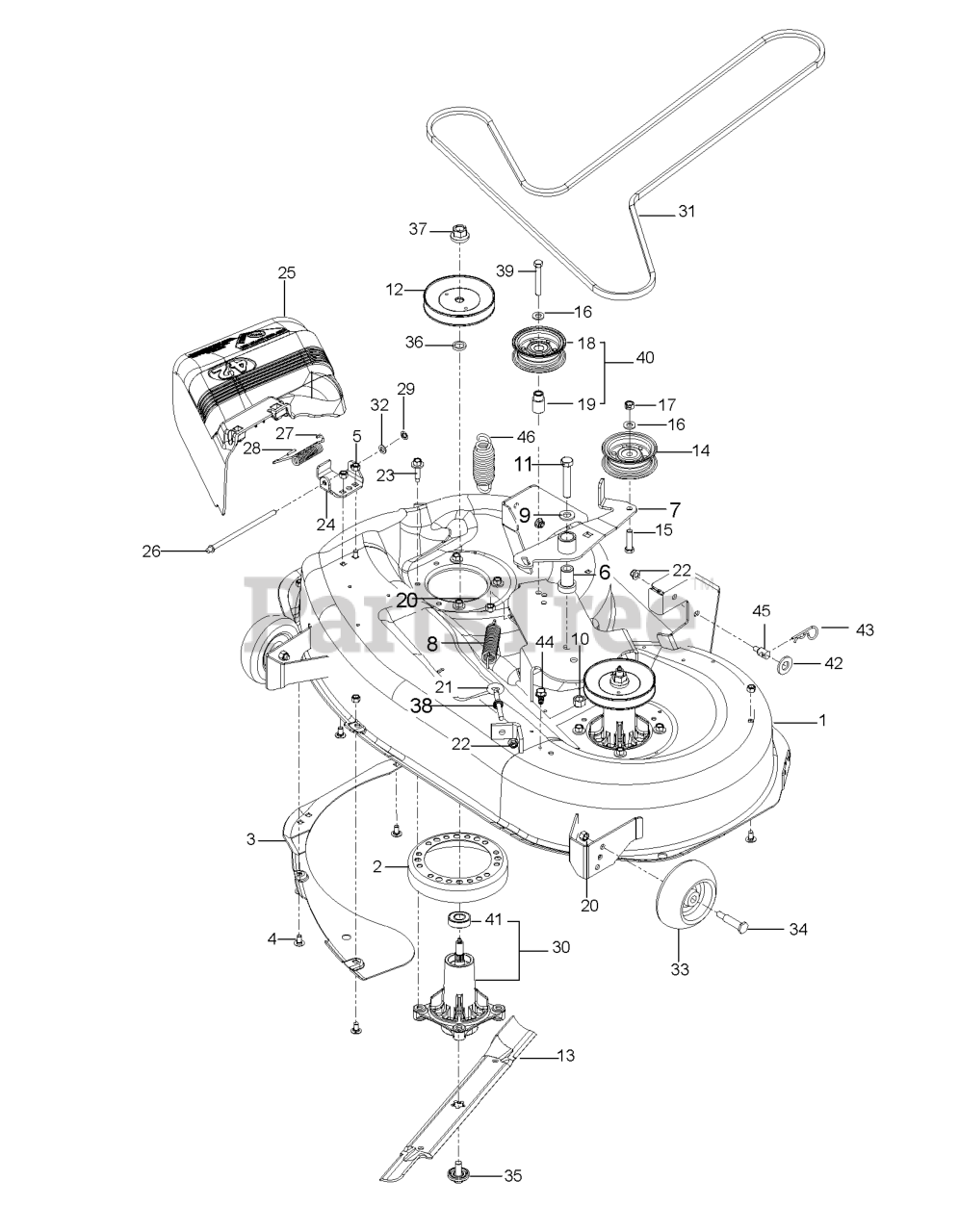

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

44

Husqvarna 539133027

SCREW, 3/8-16 X 3/4 THREAD CUT

$0.99

$

Usually ships in 3-10 days

0

45

Husqvarna 532195161

STUD.FASTNER.W/ANTI-ROTATE

$

$

Not available

9

Husqvarna 539990250

WASHER 1/2" FLAT

$1.49

$

Usually ships in 3-10 days

0

10

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

24

Husqvarna 532192557

BRKT.DEFLECTOR.38"2005+

$7.49

$

In Stock, Qty 20+

0

2

Husqvarna 539107518

STRIPPER-ROUND-UNIVERSAL
(Superseded to 532174493)

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 539101977

SPRING

$17.99

$

In Stock, Qty 12

0

29

Husqvarna 539107626

PUSH NUT
(Superseded to 532110452)

$3.99

$

In Stock, Qty 20+

0

17

Husqvarna 539990546

NUT 3/8C CENTERBLOCK

$

$

Not available

40

Husqvarna 539110317

IDLER PULLEY ASM

$

$

Not available

37

Husqvarna 539107590

LOCKNUT - 9/16
(Superseded to 596134801)

$3.49

$

In Stock, Qty 20+

0

28

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

11

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

35

Husqvarna 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

In Stock, Qty 20+

0

36

Husqvarna 539107520

WASHER-SPACER
(Superseded to 532187690)

$3.49

$

In Stock, Qty 20+

0

26

Husqvarna 539110462

ROD, HINGE
(Superseded to 595297001)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539115574

EYE BOLT 5/16 X 3.50

$

$

Not available

19

Husqvarna 539110081

BEARING INSERT

$

$

Not available

30

Husqvarna 539112057

MANDREL GREASABLE
(Superseded to 587820301)

$44.99

$

In Stock, Qty 20+

0

42

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

In Stock, only 2 left!

0

46

Husqvarna 539118762

SPRING

$

$

Not available

7

Husqvarna 539110217

DECK IDLER ARM WELDMENT

$

$

Not available

13

Husqvarna 532134149

BLADE.42".MULCH
(Superseded to 594892701)

$15.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539110318

PULLEY, MANDREL

$12.99

$

In Stock, only 1 left!

0

15

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

22

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 10

0

31

Husqvarna 522999901

BELT, DECK, 113"

$85.99

$

In Stock, only 1 left!

0

16

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

23

Husqvarna 539107630

WASHER HEAD SCREW
(Superseded to 584953901)

$3.49

$

In Stock, Qty 20+

0

20

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

6

Husqvarna 539101231

IDLER SPINDLE

$10.99

$

In Stock, Qty 20+

0

5

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 532193108

DEFLECTOR 42
(Superseded to 532403004)

$44.99

$

In Stock, Qty 5

0

18

Husqvarna 539110080

PULLEY, IDLER

$

$

Not available

38

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539110331

WASHER, 11/32 X 5/8 X 16 GA
(Superseded to 734116301)

$3.99

$

In Stock, Qty 20+

0

3

Husqvarna 539110463

BAFFLE VORTEX 42
(Superseded to 532159770)

$

$

Not available

1

Husqvarna 522744201

DECK W/DECALS - RZ42 ORANGE

Note: w/ SAFETY DECALS

$3885.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539110222

BOLT, SHOULDER
(Superseded to 532004898)

$

$

Not available

41

Husqvarna 539112050

BEARING, BALL

$7.49

$

In Stock, Qty 20+

0

43

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539110316

PULLEY, IDLER, SHORT

$

$

Not available

27

Husqvarna 539110328

SPRING, TORSION DEFLECTOR
(Superseded to 539107609)

$4.99

$

In Stock, Qty 20+

0

4

Husqvarna 539990799

CARRIAGE BOLT 5/16C X 5/8"
(Superseded to 596039401)

$3.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.49

$

Usually ships in 3-10 days

0

33

Husqvarna 539110289

WHEEL GUAGE

$8.99

$

In Stock, only 4 left!

0
