RZ 4619 CA (966503401) - Husqvarna 46" Zero-Turn Mower, CARB (2010-01) Seat Parts Diagram

46" Zero-Turn Mower, CARB

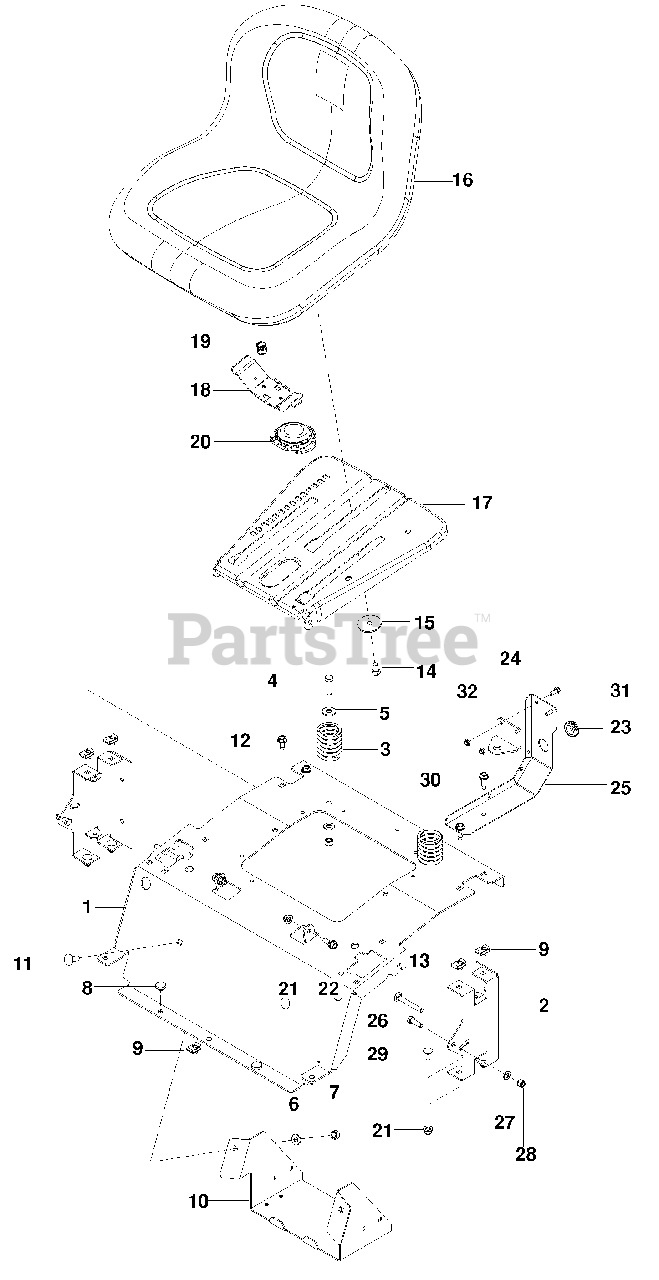

Seat Parts Diagram

  • Title

1

Husqvarna 510171903

SUPPORT, SEAT ORG

$141.99

$

In Stock, only 1 left!

0

2

Husqvarna 574522702

SUPPORT, SEAT RR BLK
(Superseded to 580308202)

$21.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539110300

SPRING, SEAT
(Superseded to 587613301)

$6.49

$

In Stock, Qty 19

0

4

Husqvarna 539976941

HCS 3/8-16 x 1 1/4

$4.99

$

In Stock, Qty 6

0

5

Husqvarna 539990517

WASHER 3/8 STD FLT

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539990122

WASHER 3/8 SAE FLT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

7

Husqvarna 539976979

NUT 3/8-16 HEX NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

8

Husqvarna 539102587

GROMMET, BUMPER

$4.99

$

In Stock, Qty 15

0

9

Husqvarna 539104763

RETAINER, U TYPE

$6.49

$

In Stock, Qty 15

0

10

Husqvarna 510231302

BOX, BATTERY BLK

$182.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539990645

RHSNB 3/8-16 x 1

$3.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107475

BOLT 5/16-18 x 3/4, THD FRM

$6.49

$

In Stock, Qty 5

0

13

Husqvarna 510422701

RHSNB 5/16-18 x 2 1/2

$3.99

$

Usually ships in 3-10 days

0

14

Husqvarna 539108503

HCS 3/8-16 x 5/8

$4.99

$

In Stock, only 2 left!

0

15

Husqvarna 539111897

WASHER 3/8 SPECIAL

$3.99

$

Usually ships in 3-10 days

0

16

Husqvarna 532424068

SEAT
(Superseded to 532439822)

$218.99

$

In Stock, Qty 8

0

17

Husqvarna 532196977

SEAT PAN
(Superseded to 596768801)

$26.99

$

In Stock, only 1 left!

0

18

Husqvarna 532197661

HANDLE, SLIDE, SEAT

$

$

Not available

19

Husqvarna 532198200

SPRING, LATCH SEAT

$6.49

$

In Stock, Qty 8

0

20

Husqvarna 539132140

SWITCH, SEAT

$13.99

$

In Stock, only 2 left!

0

21

Husqvarna 539112899

NUT 5/16-18 FLANGE NYLOC
(Superseded to 594944401)

$4.99

$

In Stock, Qty 12

0

22

Husqvarna 539110303

BOLT 5/16 SHOULDER

$4.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539110433

GROMMET

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 575296902

BRACKET, VALVE BLK

$

$

Not available

25

Husqvarna 575328002

MOUNT, VALVE BLK

$

$

Not available

26

Husqvarna 539990209

HCS 5/16-18 x 1

$3.49

$

Usually ships in 3-10 days

0

27

Husqvarna 539990188

WASHER 5/16 SAE FLAT
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

28

Husqvarna 539990717

NUT 5/16-18 HEX NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990316

RHSNB 5/16-18 x 3/4
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

30

Husqvarna 539113226

BOLT 5/16-18 x 1 THD FRM
(Superseded to 593337201)

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539108499

HCS 1/4-20 x 5/8

$1.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539108120

NUT 1/4-20 HEX NYLOC THIN

$3.99

$

In Stock, only 2 left!

0
