RZ 5424 (965881301-00) - Husqvarna 54" Zero-Turn Mower (2010-01) ENGINE MOUNTING, GUARDS & MUFFLER 2 Parts Diagram

54" Zero-Turn Mower

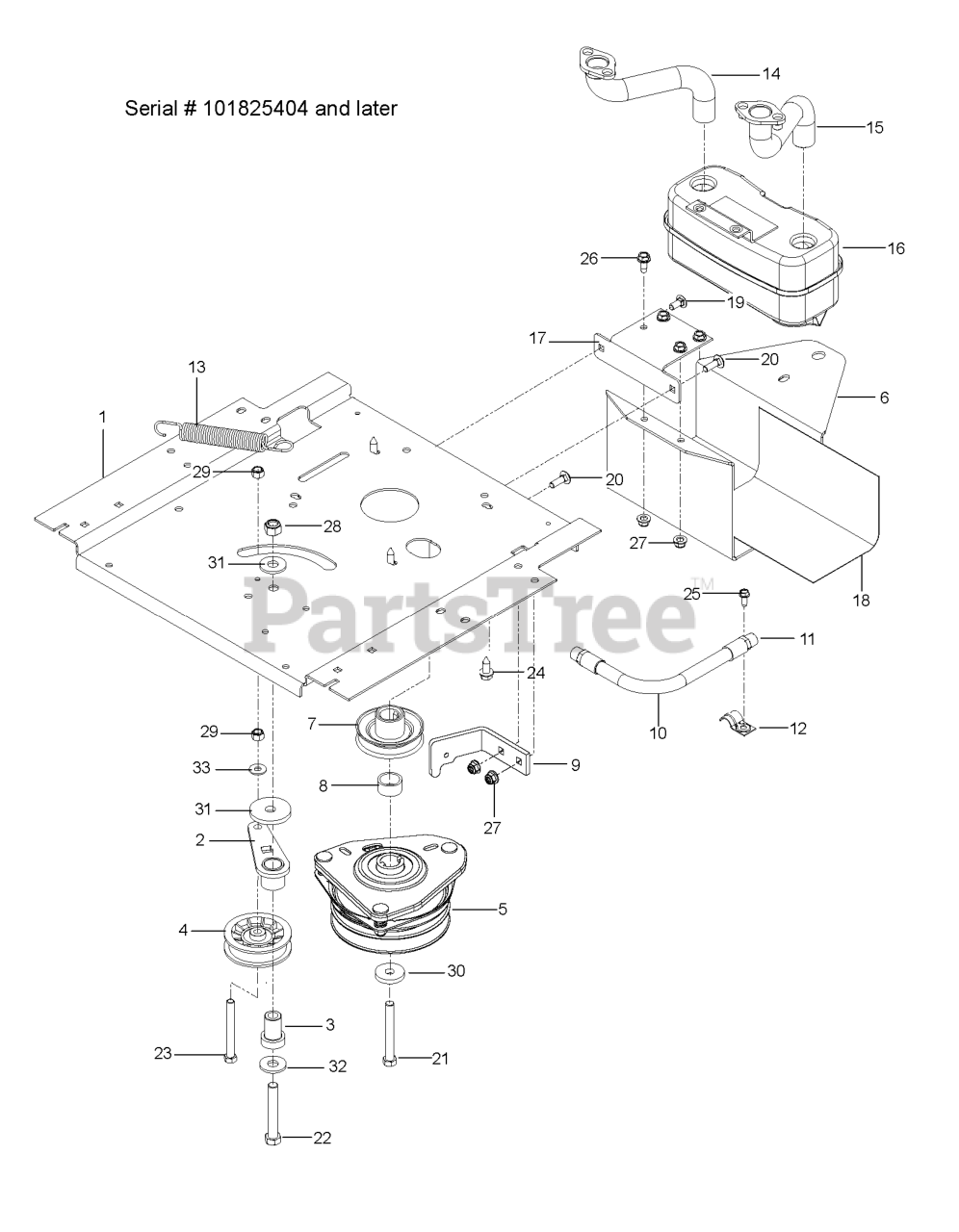

ENGINE MOUNTING, GUARDS & MUFFLER 2 Parts Diagram

  • Title

25

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

3

Husqvarna 522432501

PIVOT, IDLER

$

$

Not available

1

Husqvarna 510172002

PLATE ENGINE, BLACK
(Superseded to 575327002)

$67.99

$

Usually ships in 3-10 days

0

13

Husqvarna 532196105

SPRING, DECK DRIVE

$7.49

$

In Stock, Qty 20+

0

Husqvarna 532198316

PIGTAIL.MATNLK.OLD.HARN

Note: NOT SHOWN

$10.99

$

Usually ships in 3-10 days

0

30

Husqvarna 532126197

WASHER

$8.99

$

In Stock, Qty 20+

0

10

Husqvarna 539101362

OIL DRAIN HOSE

$47.99

$

Usually ships in 3-10 days

0

28

Husqvarna 873800800

NUT.LK.W/WSH.1/2.
(Superseded to 596135601)

$3.99

$

In Stock, Qty 20+

0

12

Husqvarna 539101363

CLAMP

$3.99

$

In Stock, only 2 left!

0

26

Husqvarna 539107475

BOLT 5/16-18 X 3/4

$6.49

$

In Stock, Qty 5

0

8

Husqvarna 576747401

SPACER, CLUTCH, 0.600

$20.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539110311

PULLEY, IDLER RAKE & ZTR

$13.99

$

In Stock, Qty 20+

0

23

Husqvarna 539109389

HCS 3/8-16X3 1/2 GR5

$4.99

$

In Stock, Qty 8

0

17

Husqvarna 510260402

BRACKET, MUFFLER, BLACK
(Superseded to 581886702)

$34.99

$

In Stock, only 1 left!

0

11

Husqvarna 539101364

DRAIN CAP

$7.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539112092

RP.IDLER ARM WELDMENT
(Superseded to 583593901)

$13.99

$

In Stock, only 4 left!

0

31

Husqvarna 539112670

HEAVY WASHER

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539132859

HEAT SHIELD

$36.99

$

Usually ships in 3-10 days

0

14

Husqvarna 532146699

RP.PIPE-EXHAUST LH
(Superseded to 583954501)

$17.99

$

In Stock, Qty 10

0

19

Husqvarna 872140506

RP BOLT 5/16-18 X3/4 ZN/YEL GR
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

21

Husqvarna 539991120

BOLT 7/16F X 2 1/2

$6.49

$

In Stock, Qty 11

0

15

Husqvarna 532146700

RP.PIPE-EXHAUST RH
(Superseded to 583954801)

$17.99

$

In Stock, Qty 9

0

33

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

In Stock, Qty 20+

0

27

Husqvarna 539112899

5/16-18 NYLOC FLANGE NUT
(Superseded to 594944401)

$4.99

$

In Stock, Qty 10

0

29

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

32

Husqvarna 819182212

WASHER.9/16 X 1 3/8 X 12 GA.

$

$

Not available

9

Husqvarna 522442504

STOP, CLUTCH, OGURA BLK

$14.99

$

Usually ships in 3-10 days

0

16

Husqvarna 539131604

MUFFLER ASM TWIN

$44.99

$

In Stock, Qty 18

0

5

Husqvarna 532179335

CLUTCH MZ ZTR GT.48/54"1.125"

$278.99

$

In Stock, only 1 left!

0

20

Husqvarna 872140508

BOLT

$2.99

$

Usually ships in 3-10 days

0

24

Husqvarna 532120616

HHFS 3/8-16 X 1.0 THD FORMING
(Superseded to 817120616)

$5.99

$

In Stock, Qty 20+

0

6

Husqvarna 510260502

GUARD, MUFFLER, BLACK

$91.99

$

In Stock, only 1 left!

0

22

Husqvarna 539101332

HCS 1/2C X 2 3/4

$4.99

$

In Stock, only 4 left!

0

7

Husqvarna 539114530

PULLEY, ENGINE
(Superseded to 587537401)

$26.99

$

In Stock, Qty 7

0
