RZS730GKA603A3 - Exmark 60" Radius S-Series Zero-Turn Mower, Kawasaki FX730V (SN: 413950474 & Above) (Rev A) (2023) Complete Cutter Housing Assembly Parts Diagram
60" Radius S-Series Zero-Turn Mower, Kawasaki FX730V

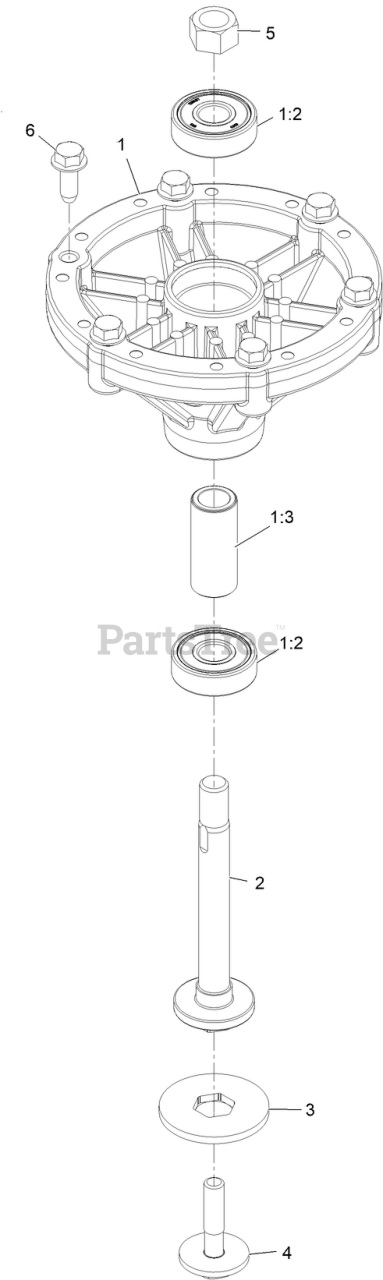

Complete Cutter Housing Assembly Parts Diagram
Exmark 126-4627
ASM-CUTTER HOUSING
$123.99
$
In Stock, only 1 left!
Exmark 116-4004
BEARING
$19.99
$
In Stock, Qty 20+
Exmark 116-4876
SPACER-BEARING
$7.99
$
In Stock, only 2 left!
Exmark 109-7431
SPINDLE-HEX PILOT
Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade anti-seize) to spindle shaft
$37.99
$
In Stock, Qty 16
Exmark 126-4530
WASHER-HEX BLADE DRIVE
$5.49
$
In Stock, Qty 20+
Exmark 116-0005
BOLT-BLADE, SEM
Note: Torque to 50-60 ft-lb | Apply lubricant to threads as needed to prevent seizing. Copper based anti-seize preferable. Grease is an acceptable substitute.
$7.99
$
In Stock, Qty 20+
$3.99
$
In Stock, Qty 20+
Exmark 126-1696
SCREW-FORMING, THREAD
$1.49
$
In Stock, only 3 left!
