RZT-50 (17BA5A7P712) - Cub Cadet 50" RZT Zero-Turn Mower, Briggs & Stratton Intek Mower Deck 50 inch Parts Diagram

50" RZT Zero-Turn Mower, Briggs & Stratton Intek

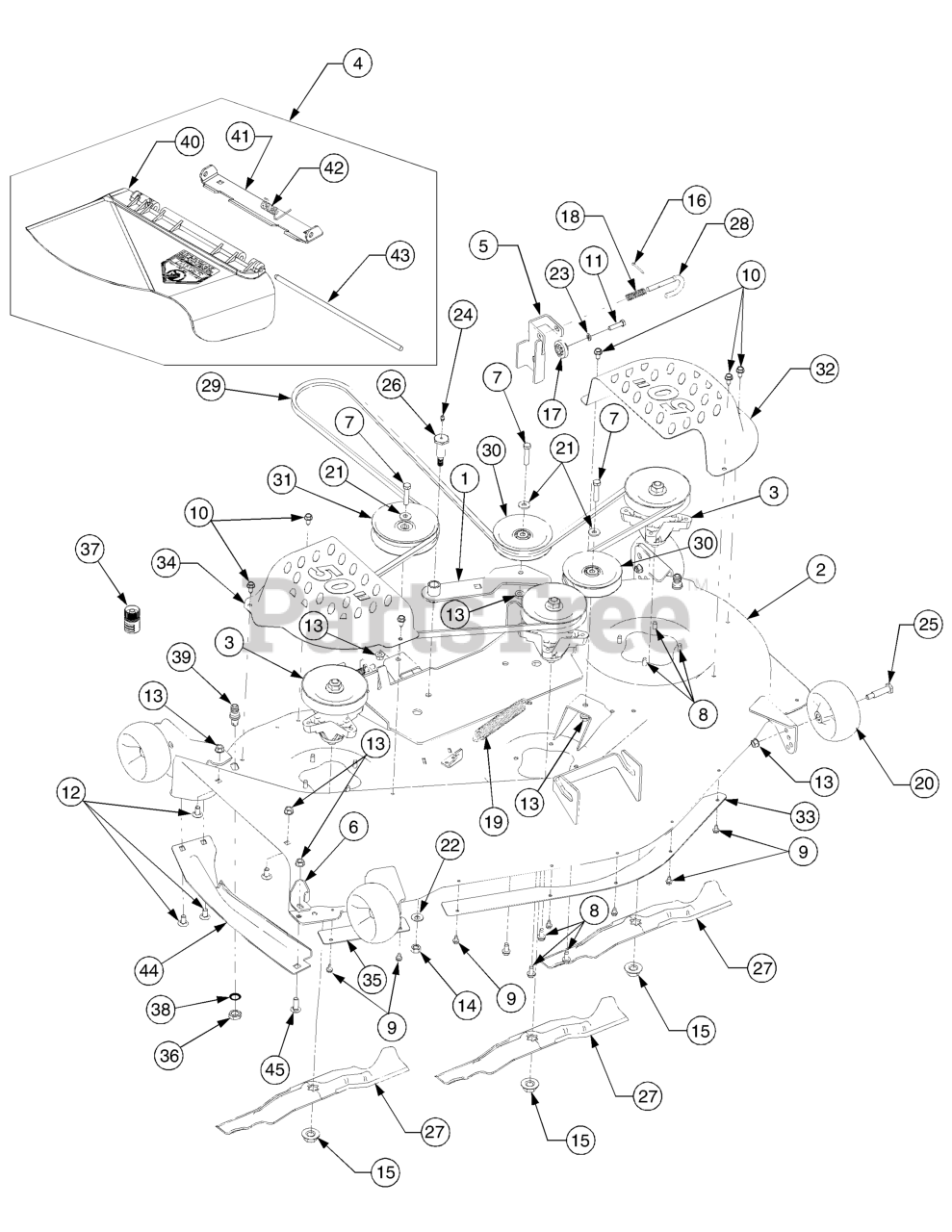

Mower Deck 50 inch Parts Diagram

  • Title

1

Cub Cadet 603-04154-0716

Arm, Idler

$

$

Not available

2

Cub Cadet 903-04328A-0716

Housing, Deck
(Superseded to 903-04328C-4021)

$1049.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 777S30015

Graphic, Danger

$8.49

$

Usually ships in 3-6 days

0

2

Cub Cadet 777S30503

Graphic, Danger

$10.99

$

In Stock, only 4 left!

0

2

Cub Cadet 977I22282

Graphic, Instruction

$18.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 918-04126A

Spindle Assembly
(Superseded to 918-04125C)

$133.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-0417A

Hex Flange Nut 5/8-18

Note: Not Shown

$6.99

$

In Stock, Qty 20+

0

3

Cub Cadet 736-0315

Washer, Flat .760 X 1.5

Note: Not Shown

$6.49

$

In Stock, Qty 7

0

3

Cub Cadet 937-3000

Grease Fitting

Note: Not Shown

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 738-1010A

Spindle Shaft 5.75"

Note: Not Shown

$46.99

$

In Stock, Qty 13

0

3

Cub Cadet 941-0919

Ball Bearing 20 x 47 x 14:62
(Superseded to 941-0919B)

Note: Not Shown

$20.99

$

In Stock, Qty 20+

0

3

Cub Cadet 748-0160A

Spacer .790 ID x 1.25 OD x .175

Note: Not Shown

$6.49

$

In Stock, Qty 9

0

3

Cub Cadet 750-1000

Spacer .80 x 1.10 x 1.322

Note: Not Shown

$4.49

$

In Stock, Qty 19

0

3

Cub Cadet 750-1349A

Spacer .79 X 1.82 X .55

Note: Not Shown

$12.99

$

In Stock, Qty 5

0

3

Cub Cadet 756-04216

Deck V Type Pulley 5.39"

Note: Not Shown

$30.99

$

In Stock, Qty 14

0

4

Cub Cadet 631-04070A

Chute Assembly, Discharge
(Superseded to 631-04070C)

$116.99

$

In Stock, Qty 20+

0

4

Cub Cadet 977S30145

Graphic, Danger

$9.49

$

In Stock, only 1 left!

0

5

Cub Cadet 683-0254B

Bracket, Deck Hanger

Variations

Cub Cadet 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 9

0

Cub Cadet 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 9

0

Cub Cadet 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$46.99

$

In Stock, Qty 9

0

Cub Cadet 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$46.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-3279

Bracket, Stop

Variations

Cub Cadet 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-0716

Chute Deflector Stop - CUB YELLOW-99 (0716)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$37.99

$

In Stock, only 3 left!

0

Cub Cadet 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$37.99

$

In Stock, only 3 left!

0

$37.99

$

In Stock, only 3 left!

0

7

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 GR5

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-0726

Screw, Hex Wash. Hd. Tapp 5/16-12 x .75

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 GR5

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3178

Screw, Carriage, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 912-0431

Nut, Hex Flange Lock, 3/8-16 GRF ..

$4.99

$

In Stock, Qty 20+

0

14

Cub Cadet 912-3019

Nut, Hex, 7/16-14
(Superseded to 712-3019)

$6.49

$

In Stock, only 4 left!

0

15

Cub Cadet 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

16

Cub Cadet 914-0470

Pin, Cotter, 1/8 x 1.25
(Superseded to 714-0470)

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 917-04074

Gear, Deck Adjustment

$12.99

$

In Stock, Qty 20+

0

18

Cub Cadet 932-0306A

Spring, Compression

$7.99

$

In Stock, Qty 20+

0

19

Cub Cadet 732-0459C

Spring, Extension, .94 Dia. x 6.74

$17.99

$

In Stock, Qty 20+

0

20

Cub Cadet 753-04856A

Wheel, Deck Ball, 5.0

$19.99

$

In Stock, Qty 20+

0

21

Cub Cadet 736-3072

Washer, Flat, .38 x .93 x .110 HT

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet 736-0407

Washer, Bell, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

23

Cub Cadet 936-0119

Washer, Lock, 5/16

$4.49

$

In Stock, Qty 20+

0

24

Cub Cadet 937-3000

Fitting, Lube, 3/16 Drive

$4.49

$

In Stock, Qty 20+

0

25

Cub Cadet 938-0373

Screw, Shoulder, .498 x 1.53:3/8-16

$8.49

$

In Stock, Qty 20+

0

26

Cub Cadet 638-04012A

Screw, Shoulder, .68 x 1.59

$20.99

$

In Stock, Qty 20+

0

27

Cub Cadet 942-04053C

Blade, 2 in 1, 17.9 Lg

$28.99

$

In Stock, Qty 20+

0

27

Cub Cadet 742-04056C-0637

Blade, Hi-Lift, 17.9 Lg
(Superseded to 942-04056C)

$35.99

$

In Stock, only 4 left!

0

28

Cub Cadet 747-1116

Rod, Deck Hanger

$11.99

$

In Stock, Qty 20+

0

29

Cub Cadet 954-04044A

Belt V, Type A Sec x 134

$63.99

$

In Stock, Qty 20+

0

30

Cub Cadet 756-1229

Pulley, Idler, 4.06 Dia

$43.99

$

In Stock, Qty 16

0

31

Cub Cadet 756-04141

Pulley, Idler,

$42.99

$

In Stock, Qty 8

0

32

Cub Cadet 783-04399

Cover, Belt LH

Variations

Cub Cadet 783-04399-0637

Belt Cover, LH Black - POWDER BLACK (0637)

$88.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04399-0606

Belt Cover, LH Orange - MAJESTIC ORANGE (0606)

$88.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04399-0650

Belt Cover, LH - RED METALLIC (0650)

$88.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04399-0691

Belt Cover, LH Black - BLACK JACK (0691)

$88.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04399-0716

Belt Cover, LH Yellow - CUB YELLOW-99 (0716)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04399-4008

COVER-BELT LH - WINE RED (4008)

$71.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04399-4021

Belt Cover, LH Yellow - CUB YELLOW 2 (4021)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04399-4033

Belt Cover, LH Flint - FLINT MICA (4033)

$88.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04399-4044

COVER-BELT LH - CRAFTSMAN RED (4044)

$88.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04399-0638

COVER-BELT LH - MTD/TROY-BILT RED (0638)

$88.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04399-0665

COVER-BELT LH - YARDMAN GREEN (0665)

$

$

Not available

$88.99

$

In Stock, only 3 left!

0

33

Cub Cadet 783-04414A-0637

Skirt, Center
(Superseded to 783-04414A)

$30.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 783-04400

Cover, Belt RH

Variations

Cub Cadet 783-04400-4021

Belt Cover, RH Yellow - CUB YELLOW 2 (4021)

$88.99

$

In Stock, Qty 7

0

Cub Cadet 783-04400-0606

Belt Cover, RH Orange - MAJESTIC ORANGE (0606)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04400-0637

Belt Cover, RH Black - POWDER BLACK (0637)

$88.99

$

In Stock, Qty 7

0

Cub Cadet 783-04400-0638

COVER-BELT RH - MTD/TROY-BILT RED (0638)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04400-0650

COVER-BELT RH - RED METALLIC (0650)

$82.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04400-4033

COVER-BELT RH - FLINT MICA (4033)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04400-0665

COVER-BELT RH - YARDMAN GREEN (0665)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04400-4008

COVER-BELT RH - WINE RED (4008)

$88.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04400-0691

Belt Cover, RH Black - BLACK JACK (0691)

$

$

Not available

Cub Cadet 783-04400-0716

BELT COVER (RH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 783-04400-4044

COVER-BELT RH - CRAFTSMAN RED (4044)

$

$

Not available

$88.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 783-04415

Skirt, RH

Variations

Cub Cadet 783-04415-4021

Right Skirt for 50" Deck - CUB YELLOW 2 (4021)

$28.99

$

In Stock, Qty 5

0

Cub Cadet 783-04415-0606

Right Skirt for 50" Deck - MAJESTIC ORANGE (0606)

$28.99

$

In Stock, Qty 5

0

Cub Cadet 783-04415-0637

Right Skirt for 50" Deck - POWDER BLACK (0637)

$28.99

$

In Stock, Qty 6

0

Cub Cadet 783-04415-0665

SKIRT-RH 50" - YARDMAN GREEN (0665)

$28.99

$

In Stock, Qty 6

0

Cub Cadet 783-04415-0691

SKIRT-RH 50" - BLACK JACK (0691)

$28.99

$

In Stock, Qty 6

0

Cub Cadet 783-04415-0716

Right Skirt for 50" Deck - CUB YELLOW-99 (0716)

$28.99

$

In Stock, Qty 6

0

Cub Cadet 783-04415-4008

SKIRT-RH 50" - WINE RED (4008)

$28.99

$

In Stock, only 1 left!

0

Cub Cadet 783-04415-4028

Right Skirt for 50" Deck - SEARS YELLOW (4028)

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-04415-4033

Right Skirt for 50" Deck - FLINT MICA (4033)

$28.99

$

In Stock, Qty 6

0

Cub Cadet 783-04415-4044

SKIRT-RH 50" - CRAFTSMAN RED (4044)

$26.99

$

Usually ships in 3-6 days

0

$26.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 912-0641

Nut, Hex, M16-1.5
(Superseded to 712-0641)

$5.99

$

In Stock, Qty 20+

0

37

Cub Cadet 921-04041

Adapter, Water Nozzle

$21.99

$

In Stock, Qty 20+

0

38

Cub Cadet 936-0760

Washer, Lock

$3.99

$

In Stock, Qty 14

0

39

Cub Cadet 737-04003D

Nozzle, Deck Water

$21.99

$

In Stock, Qty 20+

0

40

Cub Cadet 931-3131A

Chute, Deflector

$100.99

$

In Stock, Qty 11

0

41

Cub Cadet 783-04470

Bracket, Chute Mounting

$30.99

$

In Stock, only 1 left!

0

42

Cub Cadet 732-3070A

Spring, Torsion

$10.99

$

In Stock, Qty 5

0

43

Cub Cadet 711-1762

Pin, Hinge

$17.99

$

In Stock, only 1 left!

0

44

Cub Cadet 703-3511A-0637

Guard, Finger
(Superseded to 703-3511B-0637)

$65.99

$

In Stock, Qty 20+

0

45

Cub Cadet 710-3168

Screw, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0
