RZT-54 (17AF2ACK897) - Columbia 54" Zero-Turn Mower (2011) Engine Accessories Kohler Parts Diagram

54" Zero-Turn Mower

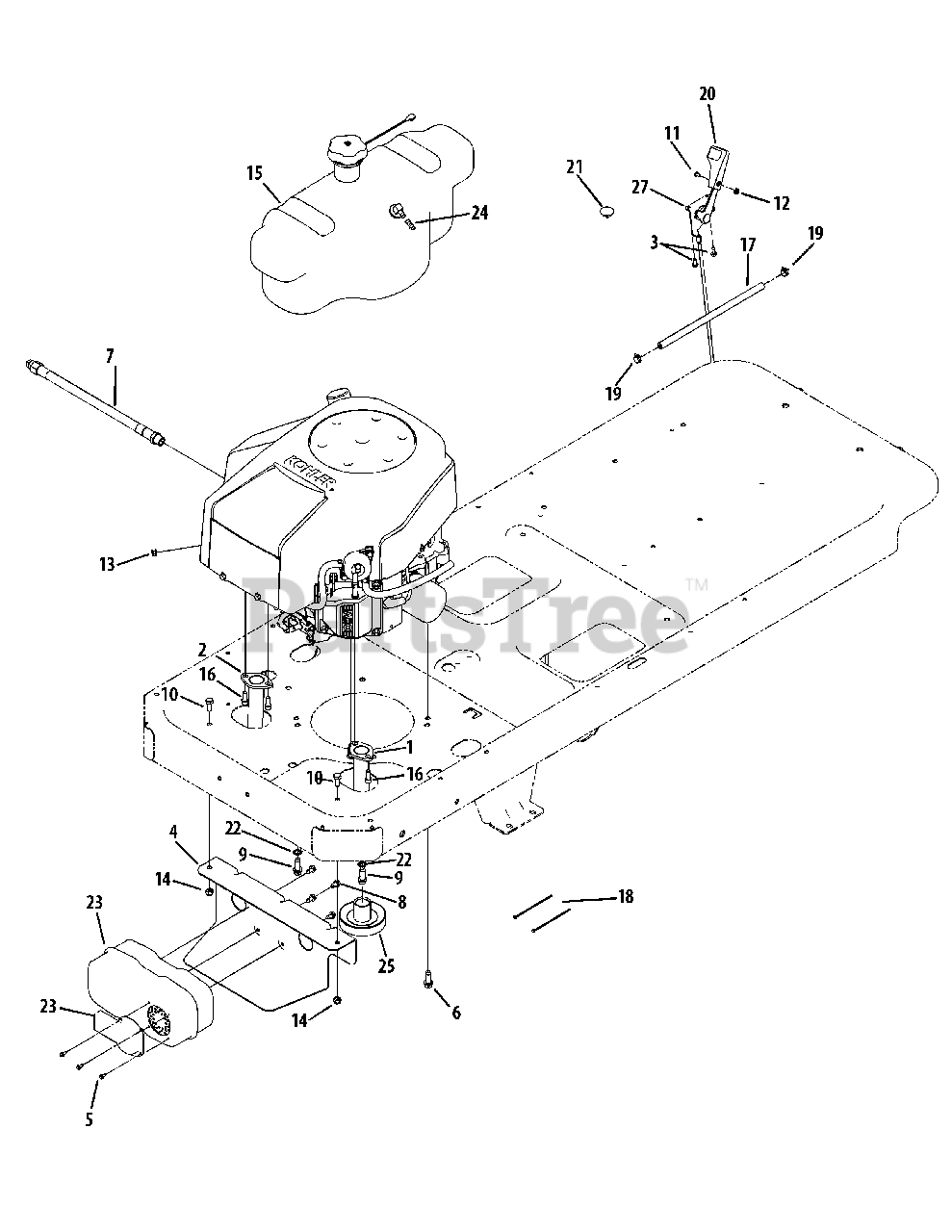

Engine Accessories Kohler Parts Diagram

  • Title

1

MTD 751-10254

Exhaust Pipe RH

$94.99

$

In Stock, only 3 left!

0

2

MTD 751-10253

Exhaust Pipe LH

$72.99

$

In Stock, only 3 left!

0

3

MTD 710-1017

Hex Wash. Hd. Tapp. Screw 1/4-14 x .625

$8.49

$

In Stock, Qty 20+

0

4

MTD 703-05441A

Muffler Mtg. Bracket

$52.99

$

In Stock, Qty 6

0

5

MTD 710-0227

Hex Wash HD AB S-Tapp Screw #8-.50

$4.49

$

In Stock, Qty 20+

0

6

MTD 710-04261

Hex Screw. #12-16 x .50

$6.49

$

In Stock, only 4 left!

0

7

MTD 751-10291

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

In Stock, Qty 5

0

8

MTD 710-0599

Hex Wash S-Tapp Screw 1/4-20 x .50

$4.49

$

In Stock, Qty 20+

0

9

MTD 710-1315

TT Screw 3/8-16 x 1.25

$4.49

$

In Stock, Qty 20+

0

10

MTD 710-3008

Hex Bolt 5/16-18 x .75" Lg. Gr. 5

$4.49

$

In Stock, Qty 20+

0

11

MTD 710-3217

Torx Screw, #8-32 x .375

$6.99

$

In Stock, Qty 10

0

12

MTD 712-0142

Hex Nut #8-32, 0.375

$4.49

$

In Stock, Qty 12

0

13

MTD 712-0271

Sems Hex Nut 1/4-20

$4.49

$

In Stock, Qty 19

0

14

MTD 712-04063

Flange Locknut 5/16-18 Gr. F, Nylon

$3.99

$

In Stock, Qty 20+

0

15

MTD 951-04209B

Fuel Tank 2.82 gal.
(Superseded to 951-05138)

$

$

Not available

16

MTD 710-1314A

Soc Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

17

MTD 751-10349-13

Fuel Hose; Low Permeation, 8" Lg.

Note: Cut to length

$17.99

$

In Stock, Qty 7

0

18

MTD 726-0197

Cable Tie

$3.99

$

In Stock, only 1 left!

0

19

MTD 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 20+

0

20

MTD 731-04914

Throttle Control Knob

$13.99

$

In Stock, only 3 left!

0

21

MTD 731-1999

Choke Plug

$10.99

$

Usually ships in 3-6 days

0

22

MTD 736-0148

L-Washer 3/8" ID (Ext. Tooth)

$3.99

$

In Stock, Qty 12

0

23

MTD 751-0616B

Muffler
(Superseded to 951-0616B)

$163.99

$

In Stock, Qty 20+

0

23

MTD 751-11053

Muffler Deflector
(Superseded to 751-11053B)

$5.49

$

In Stock, Qty 18

0

24

MTD 751-12089-34

Fuel Line 34" Lg.

$10.99

$

Usually ships in 3-6 days

0

25

MTD 756-04376

Engine Pulley, Electric PTO

$44.99

$

In Stock, only 3 left!

0

27

MTD 746-04539

Throttle/Choke Cable 41.5" Lg.
(Superseded to 746P04539)

$42.99

$

In Stock, Qty 5

0
