RZT-54 (17AI2ACK010) - Cub Cadet 54" RZT Zero-Turn Mower, Kawasaki (2008 & Before) Mower Deck 2007 & Before Parts Diagram

54" RZT Zero-Turn Mower, Kawasaki

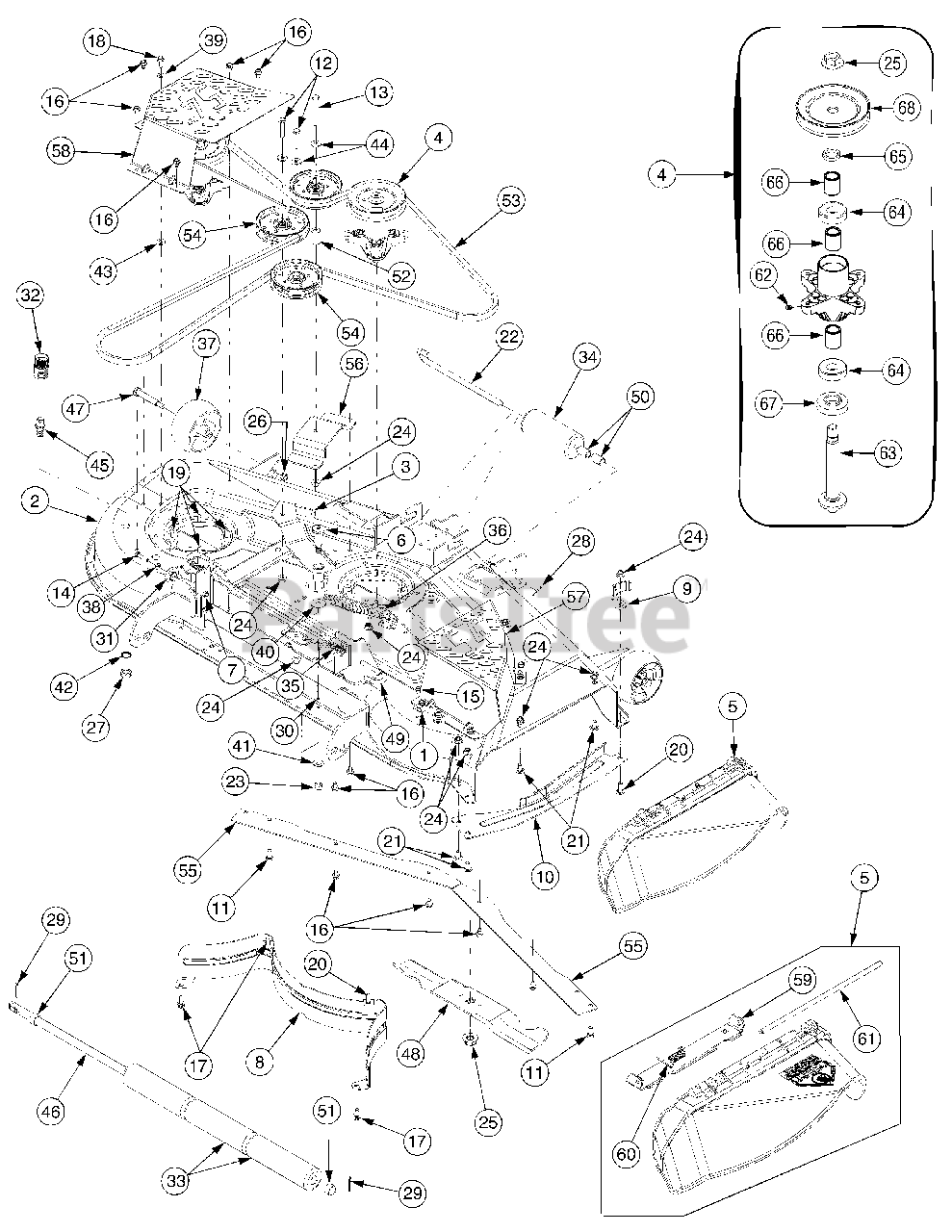

Mower Deck 2007 & Before Parts Diagram

  • Title

1

Cub Cadet 16606

Bracket, Retainer
(Superseded to 96606)

$6.99

$

In Stock, Qty 12

0

1

Cub Cadet 603-04367

Housing, Deck
(Superseded to 903-04603A)

Note: not shown

Variations

Cub Cadet 603-04367-0716

USE 903-04603A-0716 SHELL-54" - CUB YELLOW-99 (0716)

$822.99

$

Usually ships in 3-6 days

0

$822.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 777S32598

Graphic, Danger

Note: not shown

$9.49

$

Usually ships in 3-6 days

0

1

Cub Cadet 777S30503

Graphic, Danger

Note: not shown

$10.99

$

In Stock, only 4 left!

0

1

Cub Cadet 777I22282

Graphic, Instruction
(Superseded to 977I22282)

Note: not shown

$18.99

$

In Stock, only 1 left!

0

1

Cub Cadet 777D10633

Graphic, CycloCut

Note: not shown

$

$

Not available

1

Cub Cadet 777D10659

Graphic, 54" Cut

Note: not shown

$

$

Not available

1

Cub Cadet 777D10624

Graphic, Deck Wash

Note: not shown

$3.49

$

In Stock, Qty 7

0

3

Cub Cadet 603-04386

Idler Assembly
(Superseded to 603-04386A-4021)

Variations

Cub Cadet 603-04386-0716

Idler Assembly-Deck 54" - CUB YELLOW-99 (0716)

$88.99

$

In Stock, only 1 left!

0

Cub Cadet 603-04386-4021

Idler Assembly-Deck 54" - CUB YELLOW 2 (4021)

$88.99

$

In Stock, only 1 left!

0

$88.99

$

In Stock, only 1 left!

0

4

Cub Cadet 618-0671B

Spindle Assembly
(Superseded to 918-04608A)

$153.99

$

In Stock, Qty 20+

0

5

Cub Cadet 631-04070A

Chute Assembly, Discharge
(Superseded to 631-04070C)

$116.99

$

In Stock, Qty 20+

0

5

Cub Cadet 777S30284

Graphic, Danger
(Superseded to 977S30145)

Note: not shown

$9.49

$

In Stock, only 1 left!

0

6

Cub Cadet 638-04012A

Bolt Assembly, Shoulder

$20.99

$

In Stock, Qty 20+

0

7

Cub Cadet 683-0254B

Bracket, Deck Hanger

Variations

Cub Cadet 683-0254B-0498

Deck Bracket Assembly, LH - OLD CUB YELLOW (0498)

$46.99

$

In Stock, Qty 5

0

Cub Cadet 683-0254B-0716

Deck Bracket Assembly, LH - CUB YELLOW-99 (0716)

$46.99

$

In Stock, Qty 5

0

Cub Cadet 683-0254B-4021

Deck Bracket Assembly, LH - CUB YELLOW 2 (4021)

$46.99

$

In Stock, Qty 5

0

Cub Cadet 683-0254B-0637

Deck Bracket Assembly, LH - POWDER BLACK (0637)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4033

Deck Bracket Assembly, LH - FLINT MICA (4033)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4044

Deck Bracket Assembly, LH - CRAFTSMAN RED (4044)

$46.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0606

Deck Bracket Assembly, LH - MAJESTIC ORANGE (0606)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0638

Deck Bracket Assembly, LH - MTD/TROY-BILT RED (0638)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0650

BRACKET ASM-DECK LH - RED METALLIC (0650)

$46.99

$

In Stock, only 1 left!

0

Cub Cadet 683-0254B-0665

BRACKET ASM-DECK LH - YARDMAN GREEN (0665)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0691

Deck Bracket Assembly, LH - BLACK JACK (0691)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4008

BRACKET ASM-DECK LH - WINE RED (4008)

$43.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-0709

BRACKET ASM-DECK LH - MASTERCRAFT GREEN (0709)

$46.99

$

Usually ships in 3-6 days

0

Cub Cadet 683-0254B-4028

BRACKET ASM-DECK LH - SEARS YELLOW (4028)

$46.99

$

Usually ships in 3-6 days

0

$43.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-2093

Baffle, Rear Inner
(Superseded to 703-2093C)

Variations

Cub Cadet 703-2093-0637

Inner Rear Baffle, Black - POWDER BLACK (0637)

$89.99

$

In Stock, Qty 12

0

Cub Cadet 703-2093-0716

Inner Rear Baffle, Black - CUB YELLOW-99 (0716)

$89.99

$

In Stock, Qty 12

0

Cub Cadet 703-2093-4008

Inner Rear Baffle, Black - WINE RED (4008)

$89.99

$

In Stock, Qty 12

0

$83.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-3279

Bracket, Stop

Variations

Cub Cadet 703-3279-0498

Chute Deflector Stop - OLD CUB YELLOW (0498)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-0606

Chute Deflector Stop - MAJESTIC ORANGE (0606)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-0637

Chute Deflector Stop - POWDER BLACK (0637)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-0638

Chute Deflector Stop - MTD/TROY-BILT RED (0638)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-0650

Chute Deflector Stop - RED METALLIC (0650)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-0665

Chute Deflector Stop - YARDMAN GREEN (0665)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-0691

Chute Deflector Stop - BLACK JACK (0691)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-0716

Chute Deflector Stop - CUB YELLOW-99 (0716)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-4008

Chute Deflector Stop - WINE RED (4008)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-4021

Chute Deflector Stop - CUB YELLOW 2 (4021)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-4028

Chute Deflector Stop - SEARS YELLOW (4028)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-4033

Chute Deflector Stop - FLINT MICA (4033)

$37.99

$

In Stock, only 2 left!

0

Cub Cadet 703-3279-4044

Chute Deflector Stop - CRAFTSMAN RED (4044)

$37.99

$

In Stock, only 2 left!

0

$37.99

$

In Stock, only 2 left!

0

10

Cub Cadet 703-3511A

Guard, Finger
(Superseded to 703-3511B-0637)

Variations

Cub Cadet 703-3511A-0637

Finger Guard, Black - POWDER BLACK (0637)

$65.99

$

In Stock, Qty 20+

0

$65.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0216

Screw, Hex Cap, 3/8-16 x .75 Gr5 ..

$3.99

$

In Stock, Qty 17

0

12

Cub Cadet 710-0347

Screw, Hex Cap, 3/8-16 x 1.75 Gr5

$4.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0521

Screw, Hex Cap, 3/8-16 x 3.0 Gr8 ..

$4.99

$

In Stock, Qty 15

0

14

Cub Cadet 710-0528

Screw, Hex Cap, 5/16-18 x 1.25 Gr5

$4.49

$

In Stock, Qty 20+

0

15

Cub Cadet 710-0599

Screw, Hex Wash. Hd. Tapp 1/4-20 x .5

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0607

Screw, Hex Wash. Hd. Tapp 5/16-18 x .5

$6.49

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0623

Screw, Hex Wash. Hd. Tapp 3/8-16 x .75

$3.99

$

In Stock, Qty 6

0

18

Cub Cadet 710-0650

Screw, Hex Wash. Hd. Tapp 5/16-18 x .875

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 710-1260A

Screw, Hex Wash. Hd. Tapp 5/16-18 x .75

$3.49

$

In Stock, Qty 20+

0

20

Cub Cadet 710-3168

Screw, Carriage, 3/8-16 x 1.0

$3.99

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3178

Screw, Carriage, 3/8-16 x .75

$3.99

$

In Stock, Qty 20+

0

22

Cub Cadet 711-1737

Pin, Roller, .5 x 10.06

$23.99

$

In Stock, Qty 20+

0

23

Cub Cadet 712-0290

Nut, Hex Lock, 7/16-14

$4.49

$

In Stock, Qty 12

0

24

Cub Cadet 712-04065

Nut, Hx Insert Flange Lck, 3/6-16 GrF

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 712-0417A

Nut, Hex Flange, 5/8-18

$6.99

$

In Stock, Qty 20+

0

26

Cub Cadet 712-0431

Nut, Hex Flange Lock, 3/8-16 GRF
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

27

Cub Cadet 712-0641

Nut, Hex, M16-1.5

$5.99

$

In Stock, Qty 20+

0

28

Cub Cadet 714-0111

Pin, Cotter, 3/32 x 1.0

$4.49

$

In Stock, Qty 20+

0

29

Cub Cadet 714-0162

Pin, Cotter, 5/32 x 1.25

$4.99

$

In Stock, Qty 20+

0

30

Cub Cadet 714-0470

Pin, Cotter, 1/8 x 1.25

$3.99

$

In Stock, Qty 20+

0

31

Cub Cadet 717-1553B

Gear, Deck Adjustment
(Superseded to 917-04074)

$12.99

$

In Stock, Qty 20+

0

32

Cub Cadet 721-04041

Adapter, Water Nozzle
(Superseded to 921-04041)

$21.99

$

In Stock, Qty 20+

0

33

Cub Cadet 731-05825

Roller, Deck, 7.895

$33.99

$

In Stock, Qty 9

0

34

Cub Cadet 731-3005

Roller, Front

$26.99

$

In Stock, Qty 20+

0

35

Cub Cadet 732-0306A

Spring, Compression
(Superseded to 932-0306A)

$7.99

$

In Stock, Qty 20+

0

36

Cub Cadet 732-0459C

Spring, Extension, .94 Dia. x 6.74 ..

$17.99

$

In Stock, Qty 20+

0

37

Cub Cadet 734-04155

Wheel, Deck Ball, 5.0

$19.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-0119

Washer, Lock, 5/16
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

39

Cub Cadet 736-0275

Washer, Flat, .344 x .688 x .065

$6.49

$

Usually ships in 3-6 days

0

40

Cub Cadet 736-0406

Washer, Flat, .442 x 1.39 x .06
(Superseded to 936-0406)

$6.49

$

In Stock, Qty 11

0

41

Cub Cadet 736-0407

Washer, Bell, .45 x 1.0 x .062

$3.99

$

In Stock, Qty 7

0

42

Cub Cadet 736-0760

Washer, Lock,

$3.99

$

In Stock, Qty 11

0

43

Cub Cadet 736-3010

Washer, Flat, .407 x .812 x .135 HT

$4.49

$

In Stock, Qty 16

0

44

Cub Cadet 736-3072

Washer, Flat, .38 x .93 x .110 HT ...

$4.49

$

In Stock, Qty 20+

0

45

Cub Cadet 737-04003C

Nozzle, Deck Wash
(Superseded to 737-04003D)

$21.99

$

In Stock, Qty 18

0

46

Cub Cadet 738-04260

Shaft, .75 x 26.893

$80.99

$

In Stock, only 1 left!

0

47

Cub Cadet 738-3056

Screw, Shoulder, .5 x 2.5:3/8-16
(Superseded to 938-3056)

$8.99

$

In Stock, Qty 20+

0

48

Cub Cadet 742-0677A

Blade, 18.5 Lg
(Superseded to 942-0677B)

$30.99

$

In Stock, Qty 20+

0

49

Cub Cadet 747-1116

Rod, Deck Hanger

$11.99

$

In Stock, Qty 20+

0

50

Cub Cadet 750-0151

Spacer, .55 x .75 x 1.125
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

51

Cub Cadet 750-0212

Spacer, .82 x 1.0 x.53

$9.99

$

In Stock, Qty 20+

0

52

Cub Cadet 750-04597

Spacer, .38 x .9 x 1.313

$

$

Not available

53

Cub Cadet 754-04138A

Belt V, Type B Sec x 143
(Superseded to 954-04138A)

$87.99

$

In Stock, Qty 20+

0

54

Cub Cadet 756-04129

Pulley, Idler, 4.25 Dia
(Superseded to 753-08171)

$33.99

$

In Stock, Qty 20+

0

55

Cub Cadet 783-04690A

Skirt, Deck
(Superseded to 783-04690B)

Variations

Cub Cadet 783-04690A-0637

Deck Skirt, 54" Black - POWDER BLACK (0637)

$39.99

$

In Stock, Qty 8

0

$34.99

$

Usually ships in 3-6 days

0

56

Cub Cadet 783-04726

Bracket, Stationary Idler

Variations

Cub Cadet 783-04726-0637

Idler Pulley Bracket - POWDER BLACK (0637)

$34.99

$

In Stock, only 3 left!

0

Cub Cadet 783-04726-4008

Idler Pulley Bracket - WINE RED (4008)

$31.99

$

Usually ships in 3-6 days

0

$27.99

$

Usually ships in 3-6 days

0

57

Cub Cadet 783-1470A

Cover, Belt RH

Variations

Cub Cadet 783-1470A-0606

COVER-SPINDLE RH - MAJESTIC ORANGE (0606)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0637

Spindle Cover, RH - POWDER BLACK (0637)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0665

COVER-SPINDLE RH - YARDMAN GREEN (0665)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0716

COVER-SPINDLE RH - CUB YELLOW-99 (0716)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4021

Spindle Cover, RH - CUB YELLOW 2 (4021)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4028

Spindle Cover, RH - SEARS YELLOW (4028)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0691

COVER-SPINDLE RH - BLACK JACK (0691)

$99.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4008

COVER-SPINDLE RH - WINE RED (4008)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-4044

COVER-SPINDLE RH - CRAFTSMAN RED (4044)

$80.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1470A-0650

COVER-SPINDLE RH - RED METALLIC (0650)

$

$

Not available

$80.99

$

Usually ships in 3-6 days

0

58

Cub Cadet 783-1471

Cover, Belt LH
(Superseded to 783-1471A)

Variations

Cub Cadet 783-1471-0606

USE 783-1471A-0606 COVER-SPIN - MAJESTIC ORANGE (0606)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0637

Spindle Cover, LH - POWDER BLACK (0637)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0650

USE 783-1471A-0650 COVER-SPIN - RED METALLIC (0650)

$69.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0716

Spindle Cover, LH - CUB YELLOW-99 (0716)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-4021

Spindle Cover, LH - CUB YELLOW 2 (4021)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0665

USE 783-1471A-0665 COVER-SPIN - YARDMAN GREEN (0665)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-0691

USE 783-1471A-0691 COVER-SPIN - BLACK JACK (0691)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-4008

USE 783-1471A-4008 COVER-SPIN - WINE RED (4008)

$74.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-1471-4028

COVER-SPINDLE LH - SEARS YELLOW (4028)

$74.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

59

Cub Cadet 783-05030

Bracket, Chute Mounting

$27.99

$

In Stock, Qty 7

0

60

Cub Cadet 732-04372

Spring, Torsion

$9.49

$

In Stock, Qty 20+

0

61

Cub Cadet 711-04565

Pin, Hinge

$14.99

$

In Stock, Qty 5

0

62

Cub Cadet 737-3000

Fitting, Lube
(Superseded to 937-3000)

$4.49

$

In Stock, Qty 20+

0

63

Cub Cadet 738-1197

Shaft, Spindle, 6.95

$41.99

$

In Stock, Qty 20+

0

64

Cub Cadet 741-0919

Bearing, Ball
(Superseded to 941-0919B)

$20.99

$

In Stock, Qty 20+

0

65

Cub Cadet 748-0160A

Spacer, .79 x 1.25 x .175

$6.49

$

In Stock, Qty 6

0

66

Cub Cadet 750-1000

Spacer, .80 x 1.10 x 1.32

$4.49

$

In Stock, Qty 19

0

67

Cub Cadet 750-1349A

Spacer, .79 x 1.82 x .55

$12.99

$

In Stock, Qty 5

0

68

Cub Cadet 756-04216

Pulley, V Type, 5.39

$30.99

$

In Stock, Qty 13

0
