RZX921GKA604A3 - Exmark 60" Radius X-Series Zero-Turn Mower, Kawasaki FX921V (SN: 413950474 & Above) (Rev B) (2023) Deck Lift Assembly Parts Diagram

60" Radius X-Series Zero-Turn Mower, Kawasaki FX921V

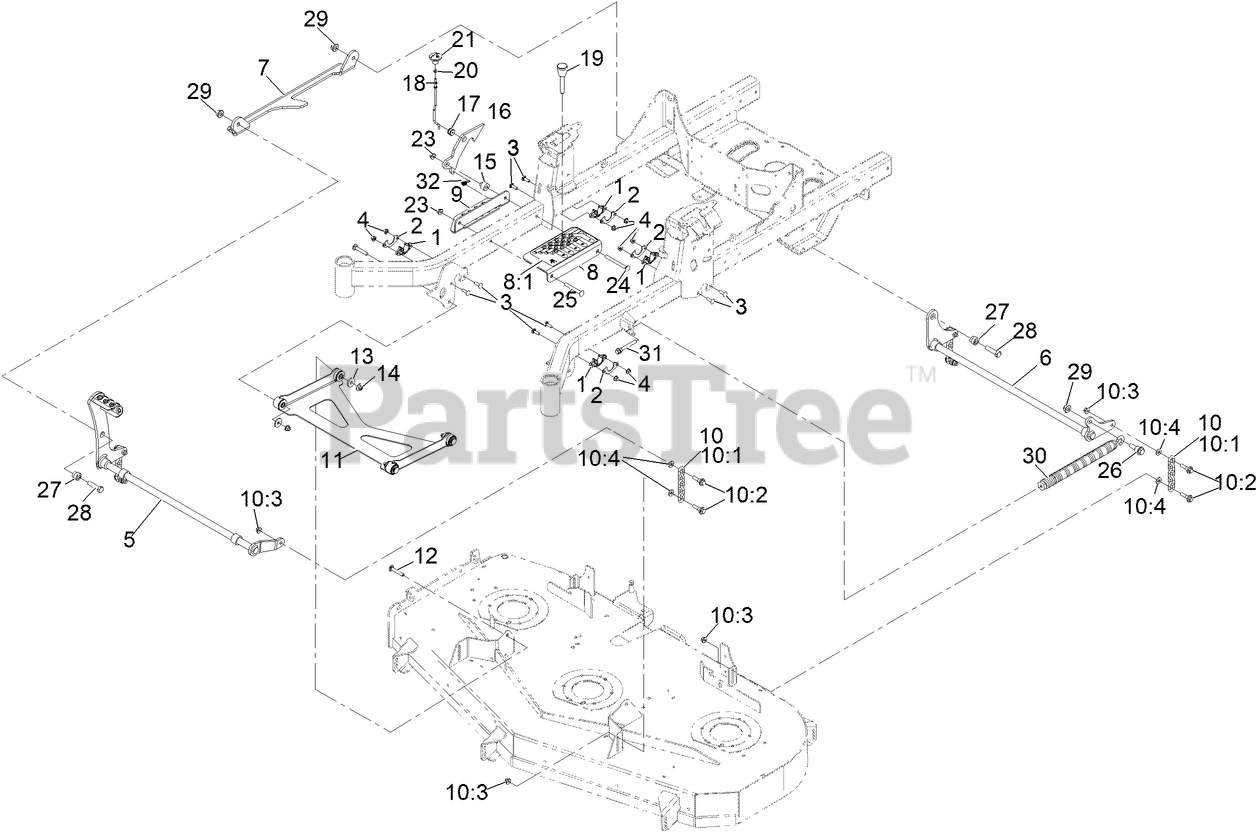

Deck Lift Assembly Parts Diagram

  • Title

1

Exmark 139-5872

BEARING-FLANGE

$

$

Not available

2

Exmark 116-2887

GUSSET-LIFT, DECK

$5.49

$

In Stock, Qty 20+

0

3

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

4

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

5

Exmark 135-5083-03

SHAFT-DECKLIFT FRONT

$121.99

$

Usually ships in 3-6 days

0

6

Exmark 135-5081-03

SHAFT-DECKLIFT REAR

$88.99

$

Usually ships in 3-6 days

0

7

Exmark 135-5079-03

LINK-DECKLIFT

$88.99

$

Usually ships in 3-6 days

0

8

Exmark 126-4535

BRACKET ASM

$35.99

$

Usually ships in 3-6 days

0

8:1

Exmark 126-4784

DECAL-HOC

$9.99

$

Usually ships in 3-6 days

0

9

Exmark 142-8483-03

Plate, HOC Lower

$28.99

$

0

10

Exmark 126-8877

DECK CHAIN ASM

$13.99

$

Usually ships in 3-6 days

0

10:1

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 20+

0

10:2

Exmark 130-0742

BOLT-SHOULDER

$2.99

$

In Stock, Qty 20+

0

10:3

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

10:4

Exmark 43-0940

SPACER

$5.49

$

In Stock, Qty 19

0

11

Exmark 126-8365

DECK STRUT ASM

$136.99

$

Usually ships in 3-6 days

0

12

Exmark 3231-40

BOLT-CARR, SHORT NECK

$2.99

$

In Stock, Qty 20+

0

13

Exmark 1-373034

WASHER

$3.49

$

In Stock, Qty 20+

0

14

Exmark 109-6658

Nut-Nyloc 3/8-16 Flg

$1.49

$

In Stock, Qty 20+

0

15

Exmark 126-5221

SPACER-STEPPED

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 142-8481

LATCH, TRANSPORT

$21.99

$

Usually ships in 3-6 days

0

17

Exmark 126-5593

GROMMET

$1.49

$

Usually ships in 3-6 days

0

18

Exmark 142-8482

LINKAGE, TRANSPORT

$6.49

$

Usually ships in 3-6 days

0

19

Exmark 126-5401

PIN-HOC

$20.99

$

Usually ships in 3-6 days

0

20

Exmark 3218-1

NUT-JAM

$1.49

$

In Stock, only 4 left!

0

21

Exmark 126-7019

KNOB

$10.99

$

Usually ships in 3-6 days

0

23

Exmark 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

24

Exmark 135-0313

SCREW-CARR

$2.99

$

Usually ships in 3-6 days

0

25

Exmark 3231-42

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

26

Exmark 142-7786

SCREW-SHOULDER HHF

$4.99

$

Usually ships in 3-6 days

0

27

Exmark 142-7110

SPACER, HOC

$2.99

$

Usually ships in 3-6 days

0

28

Exmark 142-7785

SCREW-HEX

$2.99

$

Usually ships in 3-6 days

0

29

Exmark 142-7784

NUT-HF, NI

$3.99

$

Usually ships in 3-6 days

0

30

Exmark 116-0886

SPRING-EXTENSION

$133.99

$

Usually ships in 3-6 days

0

31

Exmark 92-7674

BOLT-SHOULDER

$2.99

$

In Stock, only 2 left!

0

32

Exmark 142-8484

SPRING, EXTENSION

$1.99

$

Usually ships in 3-6 days

0
