RZX921GKA604A3 - Exmark 60" Radius X-Series Zero-Turn Mower, Kawasaki FX921V (SN: 413950474 & Above) (Rev B) (2023) Seat Assembly Parts Diagram

60" Radius X-Series Zero-Turn Mower, Kawasaki FX921V

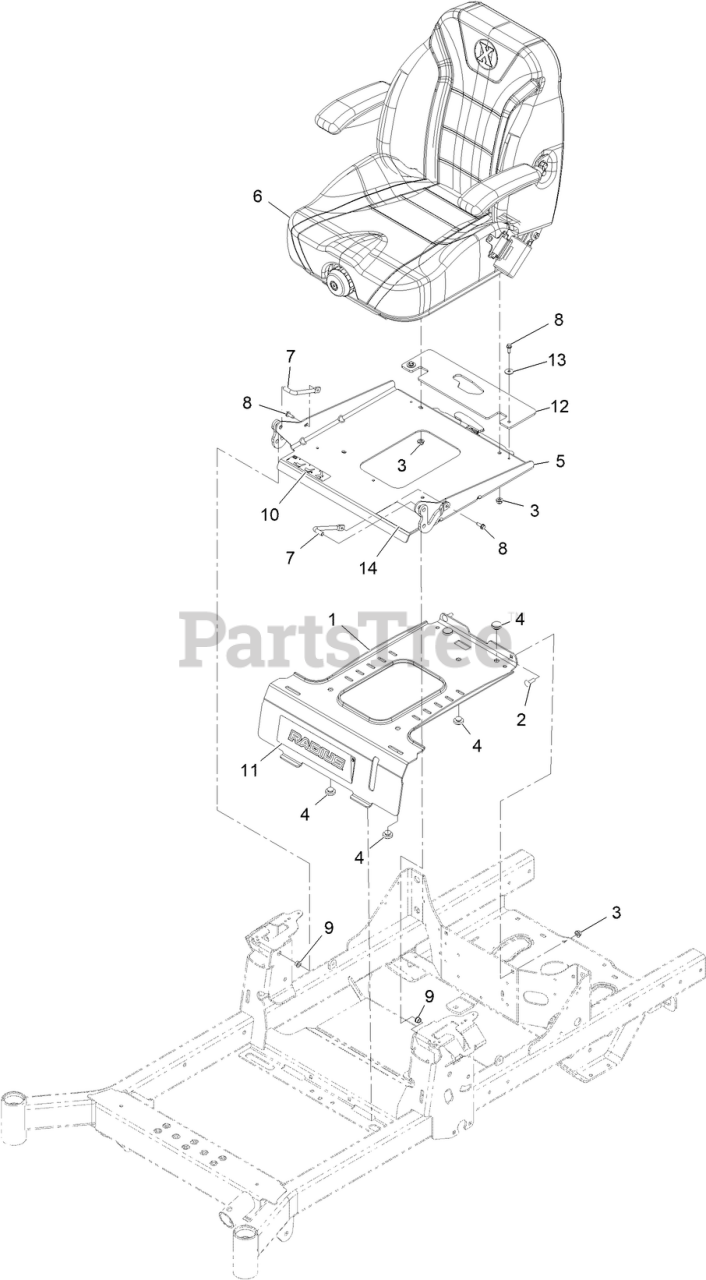

Seat Assembly Parts Diagram

  • Title

1

Exmark 126-4082-03

PLATE-RETAINER, TANK

$119.99

$

Usually ships in 3-6 days

0

2

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, Qty 20+

0

3

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

4

Exmark 135-0505

BUMPER-SEAT

$1.49

$

Usually ships in 3-6 days

0

5

Exmark 126-7309

SEAT PAN AND LATCH ASM

$194.99

$

Usually ships in 3-6 days

0

6

Exmark 146-0185

Seat, Susp.

$

$

Currently unavailable

7

Exmark 126-5914

PIN-PIVOT, SEAT

$5.49

$

Usually ships in 3-6 days

0

8

Exmark 32144-44

SCREW-HWH, THREAD ROLL

$1.49

$

In Stock, only 4 left!

0

9

Exmark 1-603735

BUSHING-FLANGED

$6.49

$

In Stock, Qty 6

0

10

Exmark 126-8161

DECAL-LATCH, SEAT

$2.99

$

Usually ships in 3-6 days

0

11

Exmark 126-9082

DECAL-RADIUS LOGO

$7.49

$

In Stock, only 1 left!

0

12

Exmark 135-0214

GUARD-SEAT, RUBBER

$15.99

$

Usually ships in 3-6 days

0

13

Exmark 3256-67

WASHER

$0.99

$

In Stock, Qty 9

0

14

Exmark 142-8229

DECAL-SERVICE AID

$3.99

$

Usually ships in 3-6 days

0
