S 125XT (5901246) - Snapper Pro S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton Electrical Group Parts Diagram

S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

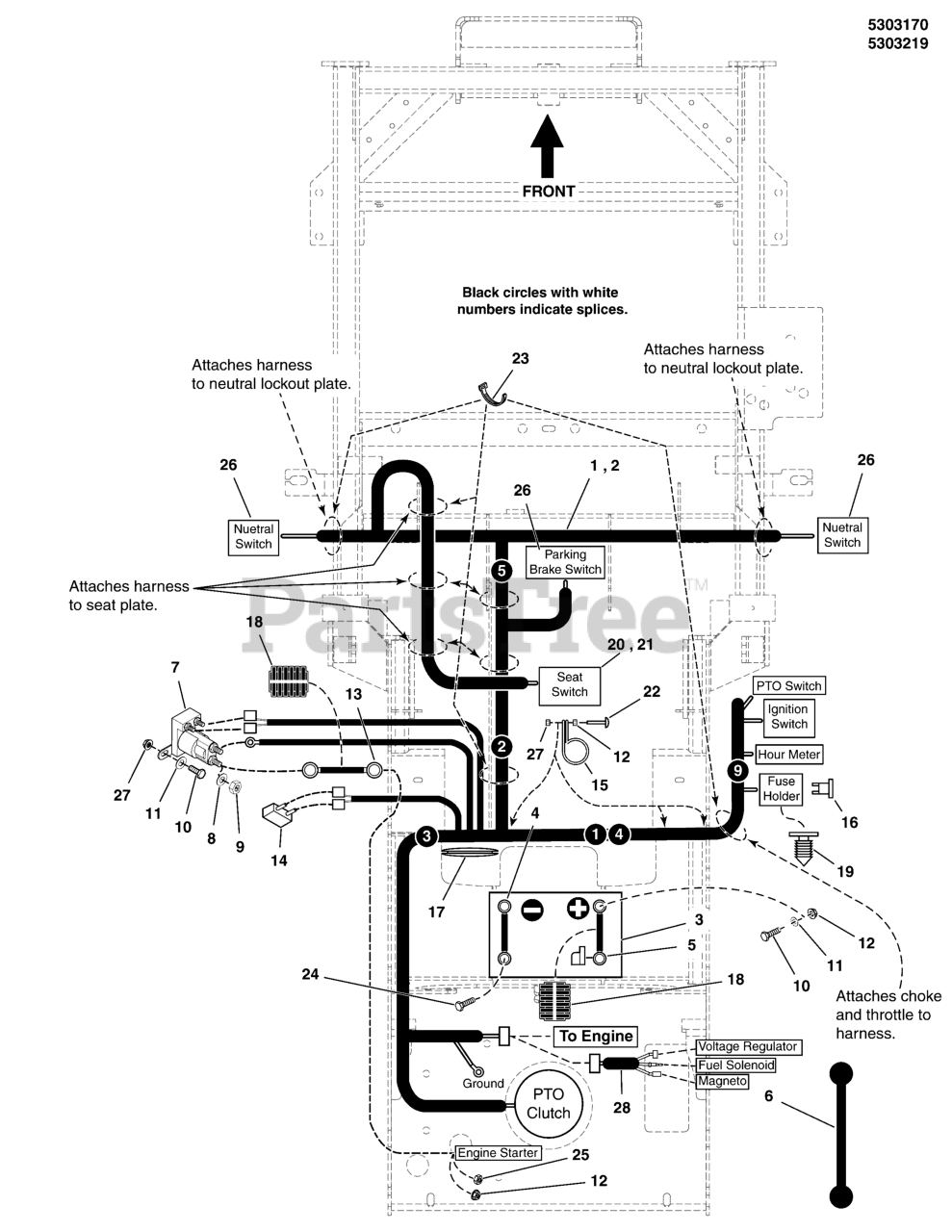

Electrical Group Parts Diagram

  • Title

1

Snapper Pro 5410289

WIRE HARNESS, C TURF,WARNER, S125XT

Note: (B&S Commercial Turf Engines S/N: All; Kawasaki Engines S/N: 2017301893 & Above)

$420.99

$

Usually ships in 2-12 days

0

2

USE 5410289 & 5104811

Note: (Kawasaki Engines S/N: 2017301892 & Below)

$

$

Not available

3

BATTERY, WET ( BCIU1, 340 CCA)

$

$

Not available

4

Snapper Pro 5047690

BATTERY CABLE, NEGATIVE, 14"
(Superseded to 5047690SM)

$16.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5021405

BATTERY CABLE, POSITIVE, 22
(Superseded to 5021405SM)

$18.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 1722009

STRAP-BLACK RUBB
(Superseded to 1722009FS)

$9.99

$

In Stock, only 1 left!

0

7

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5023217

WASHER, 5/16 LIGHT LOCK
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5023216

NUT, 5/16-24 JAM
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

11

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025126

NUT, 1/4-20 HEX SERR. FLANGE
(Superseded to 5025126FS)

Note: (Qty: 1 used to attach positive battery cable to engine starter - B&S Engine Only)

$4.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5023488

BATTERY CABLE, POSITIVE, 22
(Superseded to 5023488SM)

$27.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 1665238

BREAKER-CIRCUIT 12VOLT 20AMPS W/TAB
(Superseded to 1665238SM)

$14.99

$

In Stock, Qty 8

0

15

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5101935

FUSE, ATO 15 AMP
(Superseded to 5101935YP)

Note: (SV)

$4.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5102677

GROMMET, 1-1/2" ID FOR 1/4" METAL

$

$

Currently unavailable

18

Snapper Pro 5050927X18

WIRE LOOM, 3/8 ID X 18 IN

$

$

Currently unavailable

19

Snapper Pro 5103761

FIR TREE MOUNT, PACKARD
(Superseded to 5103761YP)

$5.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5100540

SWITCH, NC, W/ BOLT-IN BASE
(Superseded to 5100540YP)

Note: (SV)

$32.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5100541

SWITCH, NC, W/ TWIST-IN BASE

Note: (SV)

$29.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 5021029

TIE, SELF-LOCKING, 12"
(Superseded to 5021029SM)

$

$

Not available

24

Snapper Pro 5025249

BOLT, M8-1.25 X 2.MM GD 8.8
(Superseded to 5025249YP)

Note: (Kawasaki Engine Only - Bolt Negative Battery Cable to Engine)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025536

NUT, HEX, M8-1.25, CZ, GD 8.8
(Superseded to 5025536YP)

Note: (Kawasaki Engine Only - Attaches positive battery cable to engine starter)

$3.49

$

Usually ships in 2-12 days

0

26

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

27

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5104811

WIRE HARNESS, JUMPER, KAWI
(Superseded to 5104811YP)

Note: (Kawasaki Engines S/N: 2017301893 & Above)

$18.99

$

Usually ships in 2-12 days

0
