S 125XT (5901246) - Snapper Pro S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton Fuel Supply Hose & Tank Replacement Parts Parts Diagram

S125XT Series 52" Zero-Turn Mower, 25hp Briggs & Stratton

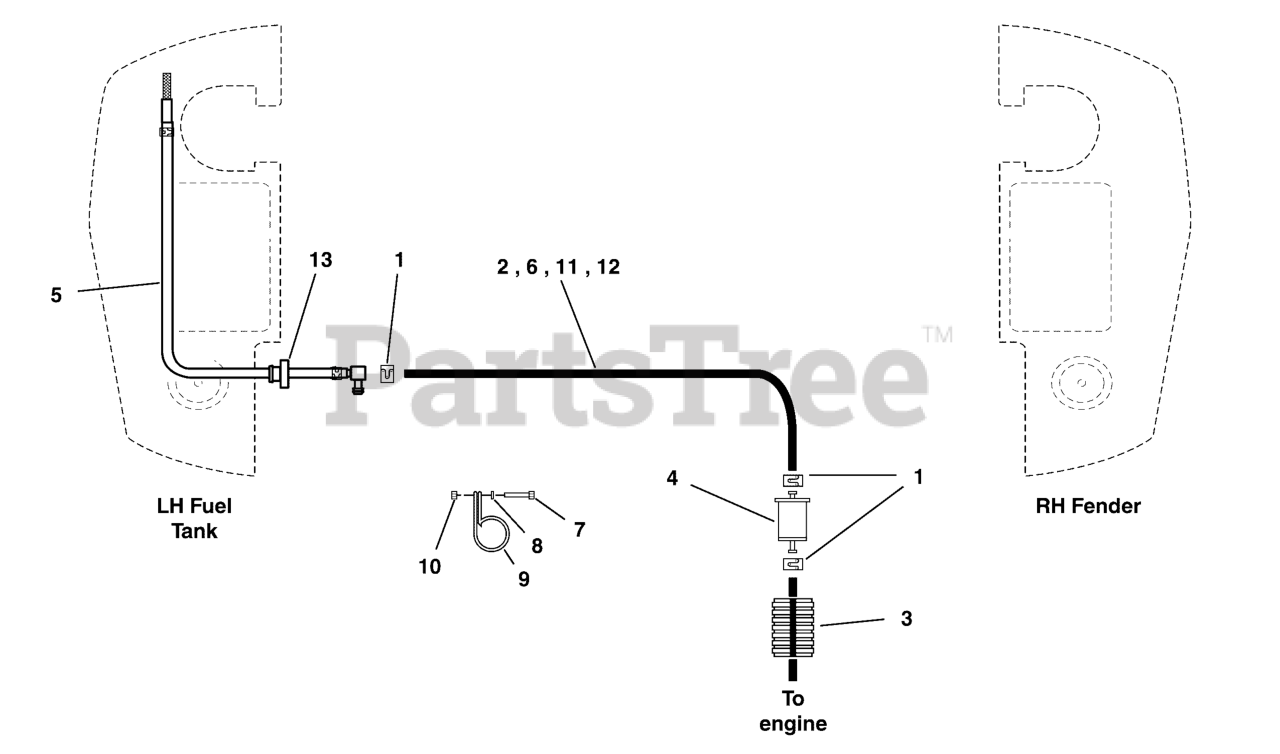

Fuel Supply Hose & Tank Replacement Parts Parts Diagram

  • Title

1

Snapper Pro 93807

CLAMP, Hose
(Superseded to 691038)

$3.99

$

In Stock, Qty 10

0

2

Snapper Pro 5050831X29

1/4" Fuel Line, 29" Long

Note: (Briggs & Stratton Commercial Turf Engines Only)

$

$

Not available

3

Snapper Pro 5050833X13

WIRE LOOM, 1/2 ID, 13.00 LONG
(Superseded to 5050833X13YP)

Note: (Briggs & Stratton Commercial Turf Engines Only)

$6.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

Note: (SV)

$12.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5101149

PICKUP TUBE ASM, FUEL TANK, 22"
(Superseded to 5101149SM)

Note: (SV)

$25.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5050831X5

1/4" Fuel Line, 5" Long
(Superseded to 5050831X5SM)

Note: (Kawasaki FS730V Carbureted Engines Only)

$5.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025010X6

BOLT, 1/4"-20 X 3/4" GD5 YZ
(Superseded to 5025010X6SM)

Note: (Briggs & Stratton Commercial Turf Engines Only)

$3.99

$

In Stock, Qty 13

0

8

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

Note: (Briggs & Stratton Commercial Turf Engines Only)

$4.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5021500

CLAMP, VINYL INSULATED, 1.00
(Superseded to 5021500FS)

Note: (Briggs & Stratton Commercial Turf Engines Only)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025391

NUT, 1/4-20 Hex Nylock Flange
(Superseded to 5025391FS)

Note: (Briggs & Stratton Commercial Turf Engines Only)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5050831X34

HOSE, 1/4" FUEL, 34.00"
(Superseded to 5050831X34FS)

Note: (Kawasaki Fuel Injected Engines Only)

$18.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5050831X5

1/4" Fuel Line, 5" Long
(Superseded to 5050831X5SM)

Note: (Kawasaki FS691V Carbureted Engines Only)

$5.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 5

0
