S 150X (5900696) - Snapper Pro S150X Series 48" Zero-Turn Mower, 23hp Kohler Wheel & Tire Group Parts Diagram

S150X Series 48" Zero-Turn Mower, 23hp Kohler

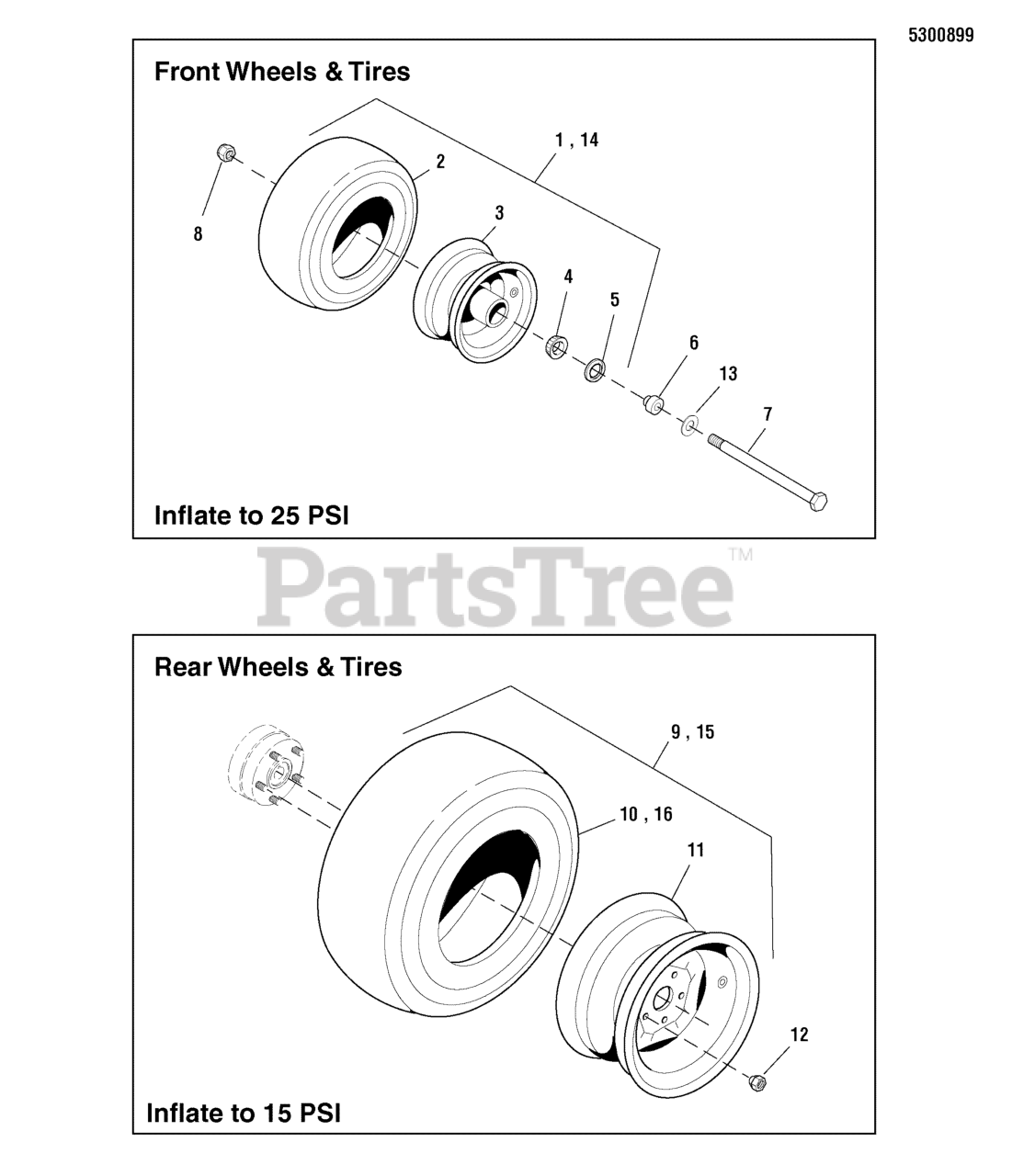

Wheel & Tire Group Parts Diagram

  • Title

1

Snapper Pro 5022631S

WHEEL & TIRE ASSEMBLY, 13 x 5.0 - 6
(Superseded to 5022631SSM)

Note: (S150X Models)

$168.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5022029X1

TIRE, 13 x 5.0 - 6

$112.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022631SX1

WHEEL ASSEMBLY, for 13 x 5.0 - 6 Tire
(Superseded to 5022631SX1SM)

Note: (Includes Ref No. 4 & 5)

$102.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5022631SX2

BEARING, Tapered Roller
(Superseded to 5022631SX2SM)

Note: (2 per tire)

$12.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5022631SX3

SEAL, GREASE
(Superseded to 5022631SX3SM)

Note: (2 per tire)

$9.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5047103

ADAPTER, CASTER AXLE, CZ
(Superseded to 5047103SM)

Note: (2 per tire)

$10.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025017X64

BOLT, 1/2-13 x 8"
(Superseded to 5025017X64SM)

$10.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

9

Snapper Pro 5023369

WHEEL & TIRE ASSEMBLY, 22 x 11 - 10
(Superseded to 5023369SM)

Note: (S150X Models)

$426.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5023369X2

TIRE, 22 X 11.0 - 10 (SV)

$

$

Currently unavailable

11

Snapper Pro 5023369X1

WHEEL ASSEMBLY, 10 X 7 (SV)
(Superseded to 5023369X1SM)

$192.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5020601

LUG NUT, 1/2-20
(Superseded to 5020601SM)

$3.49

$

In Stock, Qty 9

0

13

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, Qty 13

0

14

Snapper Pro 5023280

* FLAT-FREE TIRE ASSEMBLY, 13 x 5.0 - 6
(Superseded to 5023280SM)

$217.99

$

In Stock, only 4 left!

0

15

Snapper Pro 5100006

WHEEL & TIRE ASSEMBLY, 22 X 10 - 10

Note: (48" MODELS ONLY)

$337.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5100006X1

TIRE, 22 X 10.00 -10
(Superseded to 5100006X1FS)

Note: (48" MODELS ONLY)

$192.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5022631SX4

BEARING, RACE
(Superseded to 5022631SX4SM)

Note: (Not shown)

$10.99

$

In Stock, only 2 left!

0
