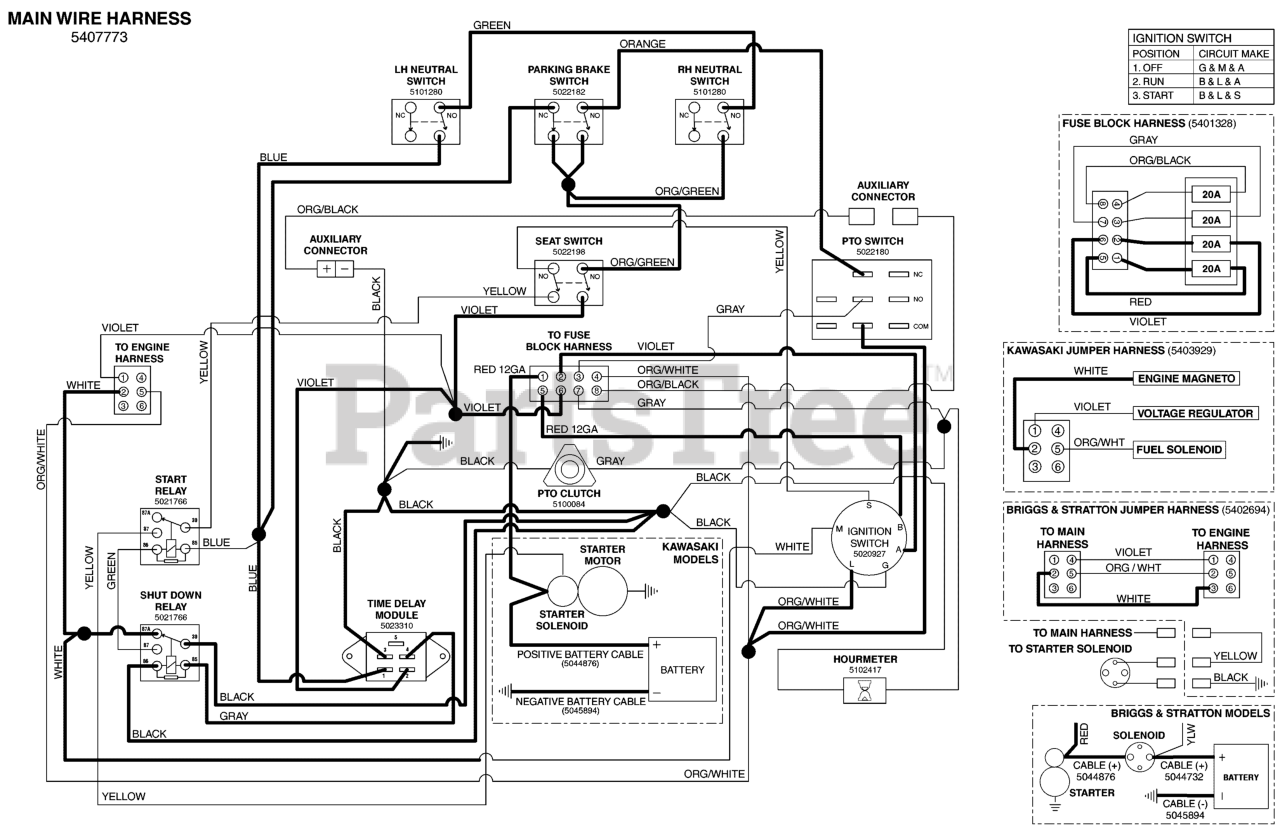

S 150XT (5900514) - Snapper Pro S150XT Series 48" Zero-Turn Mower, 20hp Kawasaki Electrical Schematic - Ignition Grouding Circuit/Operator Presence Parts Diagram

S150XT Series 48" Zero-Turn Mower, 20hp Kawasaki
