S 200X (5900692) - Snapper Pro S200X Series 61" Zero-Turn Mower, 27hp Kohler 61" Mower Deck Group - Housing, Covers, Spindles & Blades (S/N: 2012617339 & Above) Parts Diagram

S200X Series 61" Zero-Turn Mower, 27hp Kohler

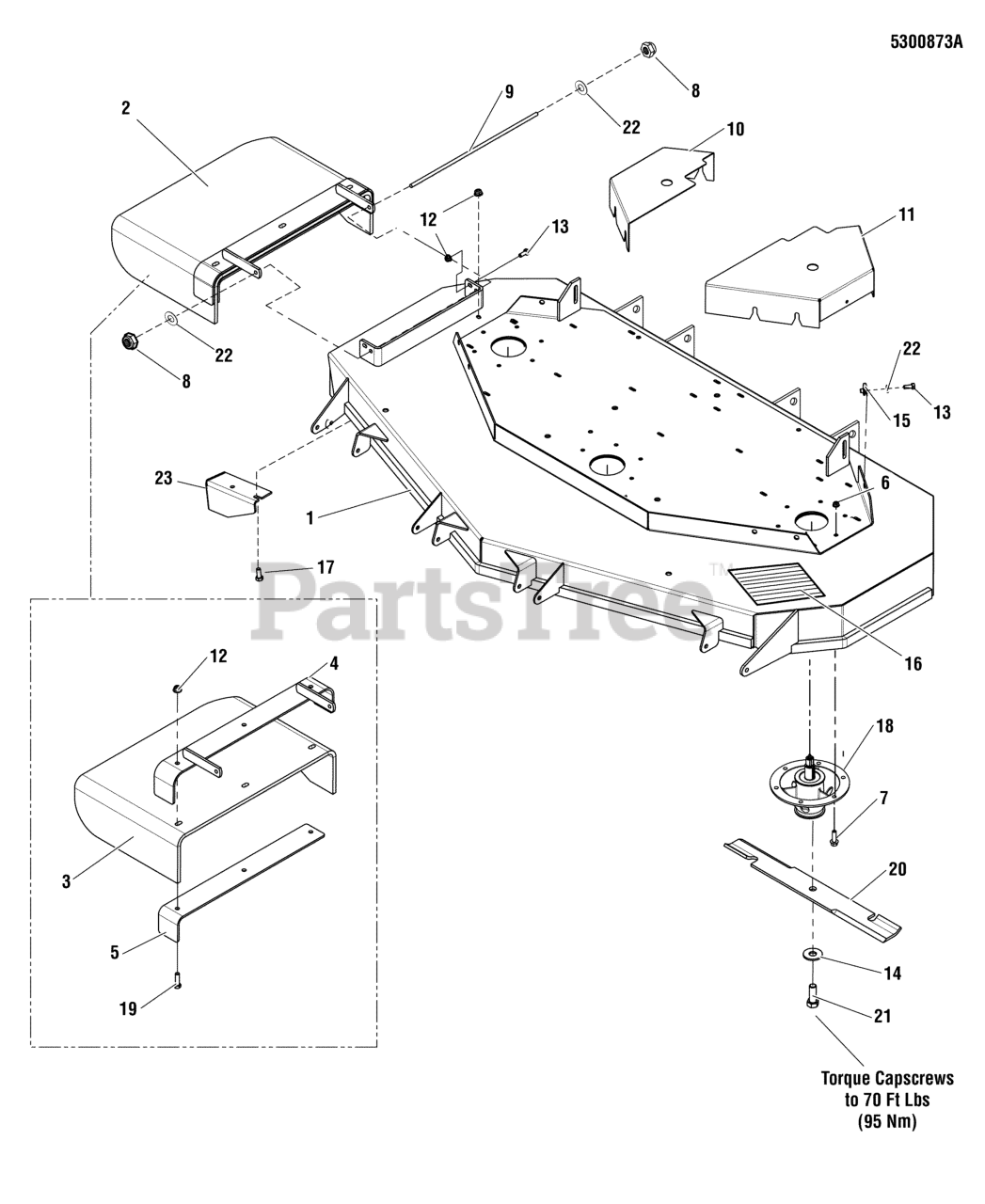

61" Mower Deck Group - Housing, Covers, Spindles & Blades (S/N: 2012617339 & Above) Parts Diagram

  • Title

1

Snapper Pro 5600135

DECK SHELL W/DECALS, 61" SIDE DISCHARGE

Note: (Includes Safety Decals)

$2165.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5061288D

61" RUBBER CHUTE ASSEMBLY, Complete
(Superseded to 5600131)

Note: (Includes Ref No. 3 - 7)

$

$

Not available

3

Snapper Pro 5402403

CHUTE, DISCHARGE, RUBBER, 61/72"
(Superseded to 5402403SM)

$186.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5061293D

WELD, FRAME, CHUTE, 61
(Superseded to 5061293DYP)

$67.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

8

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

9

Snapper Pro 5061300

ROD MOUNT, CHUTE 61"
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5400791D

GUARD, 61", RH

$49.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5405484D

GUARD, 61 - LH - RED
(Superseded to 5405484DYP)

$60.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

14

Snapper Pro 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 2 left!

0

15

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

16

Snapper Pro 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025145X6

BOLT, 5/16-18 X 3/4, CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5100993

ASSM, SPINDLE, CAST IRON
(Superseded to 5100993SM)

Note: (INCLUDES REF NOS 24 - 30)

$219.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5020842S

BLADE SET, 61 DECK (SET OF 3 BLADES)

$

$

Currently unavailable

21

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

23

Snapper Pro 5401344A

PLATE, DEFLECTOR - BLK
(Superseded to 84003247)

$11.99

$

Usually ships in 2-12 days

0
