S 200X (5900692) - Snapper Pro S200X Series 61" Zero-Turn Mower, 27hp Kohler 61" Mower Deck Group - Pulleys, Belts & Idler Arm Parts Diagram

S200X Series 61" Zero-Turn Mower, 27hp Kohler

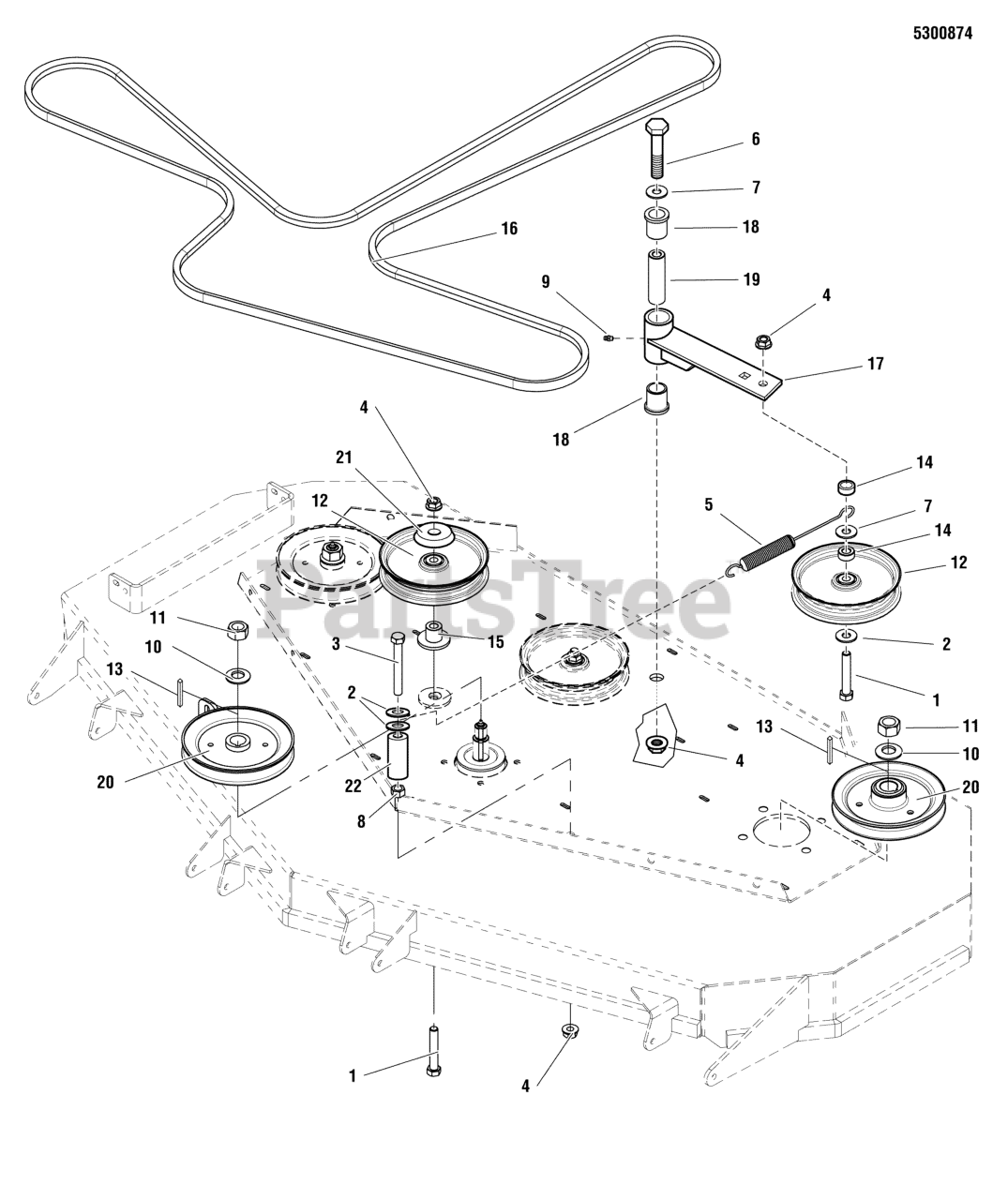

61" Mower Deck Group - Pulleys, Belts & Idler Arm Parts Diagram

  • Title

1

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

2

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 1 left!

0

4

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

5

Snapper Pro 5023340

SPRING, EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

6

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

8

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STRAIGHT
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

In Stock, only 2 left!

0

12

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

13

Snapper Pro 5050407X10

KEY, 1/4 SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

In Stock, only 2 left!

0

14

Snapper Pro 5044609

SPACER, .52 X 1.00 X .38
(Superseded to 5044609SM)

$6.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 2 left!

0

16

Snapper Pro 5100893

BELT, BP-SEC, 167.88EL, ARAMID, WRPD

$

$

Currently unavailable

17

Snapper Pro 5407343

ASSM, IDLER ARM
(Superseded to 5407343FS)

Note: (Includes bushings and grease fitting.)

$113.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 7

0

19

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5100444

PULLEY, SPIN, 6.5 OD X 25MM,
(Superseded to 5100444FS)

$99.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5050857X2P25

HOSE, 1/2-13 X 4 GD5 YZ
(Superseded to 5050857X2P25FS)

$5.49

$

Usually ships in 2-12 days

0
