S 200X (5900694) - Snapper Pro 72" Mower Deck 72" Mower Deck - Housing, Covers, and Spindles Parts Diagram

72" Mower Deck

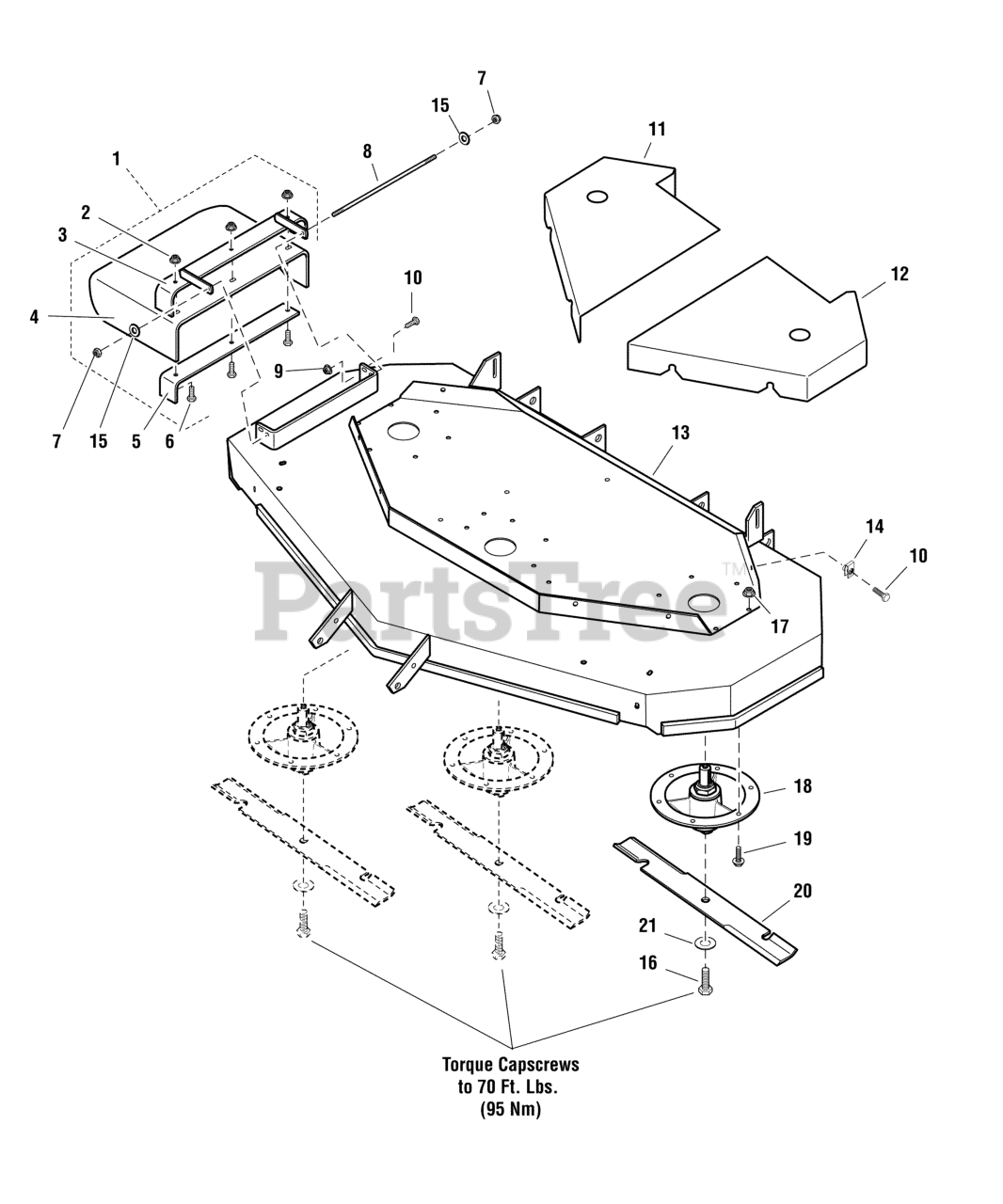

72" Mower Deck - Housing, Covers, and Spindles Parts Diagram

  • Title

1

Snapper Pro 5061288D

61" / 72" RUBBER CHUTE ASSEMBLY, Complete
(Superseded to 5600131)

Note: (Includes Ref No. 2 - 6)

$

$

Not available

2

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 4 left!

0

3

Snapper Pro 5061293D

WELD, FRAME, CHUTE, 61 / 72 - RED
(Superseded to 5061293DYP)

$67.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5402403

CHUTE, DISCHARGE, RUBBER, 61 / 72
(Superseded to 5402403SM)

$186.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5402360A

SUPPORT, DISCHARGE CHUTE - BLK
(Superseded to 5402360AYP)

$43.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0

7

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 6

0

8

Snapper Pro 5061300

ROD MOUNT, CHUTE
(Superseded to 5061300FS)

$11.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 8

0

11

Snapper Pro 5401136D

GUARD 72" - RH - RED

$

$

Currently unavailable

12

Snapper Pro 5403378D

GUARD 72" - LH - RED

$81.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5600151

DECK SHELL W/ DECALS (SV)

Note: (Includes safety decals.)

$2450.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 5

0

15

Snapper Pro 5025292

WASHER, 5/16 GR.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 3 left!

0

16

Snapper Pro 5025320X14

BOLT, 5/8-11 X 1-3/4" GD8
(Superseded to 5025320X14FS)

$3.49

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, only 4 left!

0

18

Snapper Pro 5100993

ASSM, SPINDLE, BOTTOM MOUNT
(Superseded to 5100993SM)

$219.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025390X8

BOLT, 3/8-16 X 1, FLANGE, GD 5, CZ
(Superseded to 5025390X8FS)

$3.49

$

Usually ships in 2-12 days

0

20

Snapper Pro 5022476S

BLADE, 25" (SET OF 3)

$113.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025477

WASHER, 5/8" GRADE 8, YZ
(Superseded to 5025477SM)

$3.99

$

In Stock, only 3 left!

0
