S 200X (5900694) - Snapper Pro 72" Mower Deck 72" Mower Deck - Pulleys, Belt, and Idler Arm Parts Diagram

72" Mower Deck

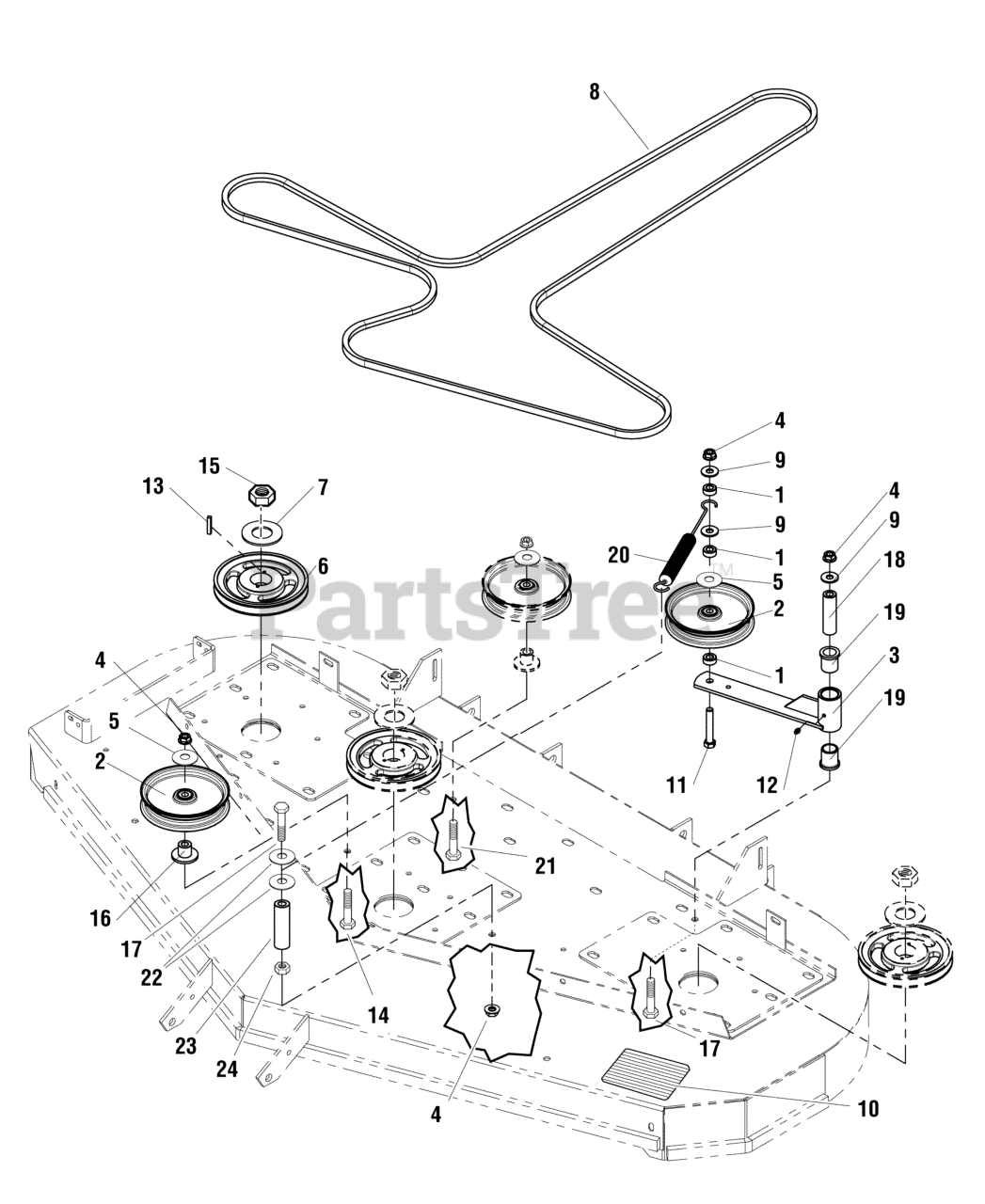

72" Mower Deck - Pulleys, Belt, and Idler Arm Parts Diagram

  • Title

1

Snapper Pro 5045023

SPACER, .52 X 1.00 X .44
(Superseded to 5045023SM)

$6.49

$

Usually ships in 2-12 days

0

2

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

3

Snapper Pro 5045019D

WELD, IDLER ARM - RED

$87.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, only 4 left!

0

5

Snapper Pro 5101103

SHIELD, PULLEY BEARING
(Superseded to 5101103SM)

$10.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5101171

PULLEY, 7.15 OD X 25MM BORE (BC72)

$80.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5022399

BELT, # 7-6212
(Superseded to 5022399FS)

$171.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

10

Snapper Pro 5101005

SAFETY WALK, 9.75 X 6.00
(Superseded to 5101005SM)

$15.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

12

Snapper Pro 5020095

GREASE FITTING, 1/4-28 STR
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

13

Snapper Pro 5022726

KEY 1/4 SQ X 1-1/2 LONG
(Superseded to 5022726YP)

$4.99

$

In Stock, only 1 left!

0

14

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 1 left!

0

15

Snapper Pro 5025405

NUT, 3/4-16 HEX
(Superseded to 5025405SM)

$3.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5103430

IDLER MOUNT
(Superseded to 5103430YP)

$10.99

$

In Stock, only 1 left!

0

17

Snapper Pro 5025017X36

BOLT, 1/2-13 X 4-1/2 GD5
(Superseded to 5025017X36SM)

$6.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5045022

SPACER, .52 X 1.00 X 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 1 left!

0

19

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 11

0

20

Snapper Pro 5023340

SPRING, EXTENSION, SWIVEL END
(Superseded to 5023340SM)

$36.99

$

In Stock, only 1 left!

0

21

Snapper Pro 5025017X24

BOLT, 1/2-13 X 3" GD5 CZ
(Superseded to 5025017X24SM)

$5.99

$

In Stock, only 2 left!

0

22

Snapper Pro 5025440

WASHER, 1/2 GD9 YZ
(Superseded to 5025440SM)

$4.49

$

Usually ships in 2-12 days

0

23

Snapper Pro 50508572P25

HOSE, 1/2" PUSH-ON, 2.25"

$

$

Currently unavailable

24

Snapper Pro 5025038

NUT, 1/2-13 HEX
(Superseded to 703340)

$7.99

$

In Stock, only 2 left!

0
