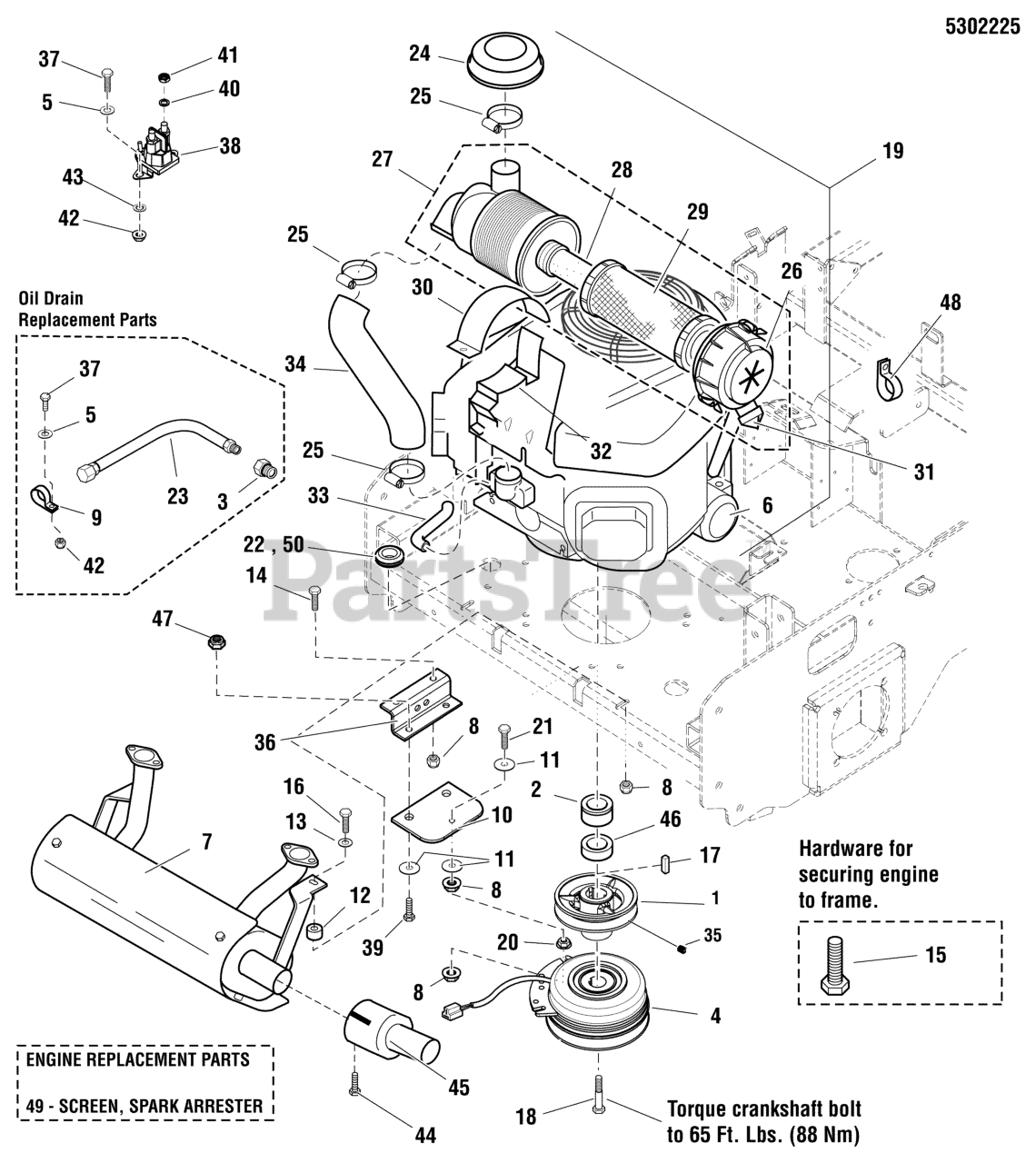

S 200XT (5900937) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki Engine & PTO Group - Kawasaki Parts Diagram

S200XT Series 61" Zero-Turn Mower, 26hp Kawasaki

Engine & PTO Group - Kawasaki Parts Diagram

  • Title

1

Snapper Pro 5021682

PULLEY, 4.75 OD X 1-1/8 BORE, BC-48
(Superseded to 5021682YP)

$48.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5047033

SPACER, 1.13 X 1.75 X 1.03, CZ
(Superseded to 5047033SM)

$13.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5102629

HOSE, OIL DRAIN, M20 X 2.5
(Superseded to 5102629FS)

$52.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5105090

* CLUTCH, 5218-134, WARNER
(Superseded to 5105090YP)

$456.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5102278X1

OIL FILTER (49065-2078) (SV)

$

$

Not available

7

Snapper Pro 5104326

MUFFLER, KAWI, HORIZONTAL, 5" CAN
(Superseded to 5104326YP)

$207.99

$

In Stock, only 1 left!

0

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5021500

CLAMP, VINYL INSULATED
(Superseded to 5021500FS)

$4.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5043636

CLUTCH ANCHOR PAD
(Superseded to 5043636SM)

$11.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5044617

WASHER, .34 X 1.25 X 10 GA
(Superseded to 5044617SM)

$8.49

$

In Stock, only 2 left!

0

12

Snapper Pro 5046446

SPACER, .39 X 1.00 X .80
(Superseded to 5046446SM)

$7.49

$

In Stock, only 1 left!

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025532

BOLT,HEX FLG,SER GD5 3/8-16X1-1/4PACH CZ
(Superseded to 84003591)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5050407X10

KEY, 1/4 SQ X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5047632

BOLT, CRANKSHAFT, 7/16X2-3/4, PATCH YZ
(Superseded to 5102865)

$5.49

$

Usually ships in 2-12 days

0

19

* ENGINE, KAWASAKI

$

$

Not available

20

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5025055X18

BOLT, 5/16-18 X 2-1/4 TFL, GD5 YZ
(Superseded to 5025055X18YP)

$3.99

$

In Stock, only 1 left!

0

22

Snapper Pro 5021379

GROMMET, 7/8
(Superseded to 5021379SM)

Note: (S/N: 2016499656 & Below)

$6.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5048681

HOSE, OIL DRAIN
(Superseded to 5048681SM)

$18.99

$

In Stock, only 1 left!

0

24

Snapper Pro 5023143

RAIN COVER (SV)

$

$

Not available

25

Snapper Pro 5023146

CLAMP (SV)

$11.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5102126X2

AIR FILTER CAP END (SV)

$

$

Not available

27

Snapper Pro 5102126X1

AIR FILTER ASSEMBLY, COMPLETE (SV)

$

$

Not available

28

Snapper Pro 5102126X4

AIR FILTER, SECONDARY (SV)

$

$

Not available

29

Snapper Pro 5102126X3

AIR FILTER, PRIMARY (SV)

$

$

Not available

30

Snapper Pro 5102126X5

CASE BRKT,AIR FILTER

$

$

Not available

31

Snapper Pro 5102126X8

RUBBER, DUST VALVE (SV)

$

$

Not available

32

Snapper Pro 5102126X6

CASE BRKT,AIR FILTER

$46.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5102126X10

BREATHER TUBE (SV)

$

$

Not available

34

Snapper Pro 5102126X9

AIR INLET TUBE (SV)

$

$

Not available

35

Snapper Pro 5025531

SET SCREW, 5/16-18 X 3/8, KNURL, W/PATCH
(Superseded to 5025531YP)

$3.49

$

In Stock, only 2 left!

0

36

Snapper Pro 5414825A

ANCHOR, CLUTCH - BLK

$

$

Not available

37

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

38

Snapper Pro 1724815

SOLENOID-4 POLE 12 VOLT DC (TROMBETTA)
(Superseded to 1724815FS)

$29.99

$

Usually ships in 2-12 days

0

39

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

40

Snapper Pro 5023217

WASHER, 5/16 LIGHT LOCK (SV)
(Superseded to 5023217SM)

$3.49

$

Usually ships in 2-12 days

0

41

Snapper Pro 5023216

NUT, 5/16-24 JAM (SV)
(Superseded to 5023216SM)

$2.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, only 2 left!

0

43

Snapper Pro 5025187

WASHER, 1/4 INTERNAL TOOTH LOCK

$

$

Not available

44

Snapper Pro 5025470

SCREW,SELF-TAP,#8-32 X 3/8,WASH HEX, CZ
(Superseded to 5025470YP)

$3.49

$

Usually ships in 2-12 days

0

45

Snapper Pro 5104348

EXTENSION, TAILPIPE, 3" - BLACK
(Superseded to 5104348YP)

$14.99

$

In Stock, only 1 left!

0

46

Snapper Pro 5046904

SPACER, 1.13 X 1.75 X .25
(Superseded to 5046904YP)

$17.99

$

In Stock, only 1 left!

0

47

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

48

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA
(Superseded to 5023173SM)

$3.99

$

Usually ships in 2-12 days

0

49

Snapper Pro 5101641

SCREEN, SPARK ARRESTER
(Superseded to 5101641YP)

Note: (Not Shown)

$84.99

$

Usually ships in 2-12 days

0

50

Snapper Pro 5103944

GROMMET, 7/8"ID, 1/4" THICK STK
(Superseded to 5103944YP)

Note: (S/N: 2016499657 & Above)

$2.99

$

Usually ships in 2-12 days

0
