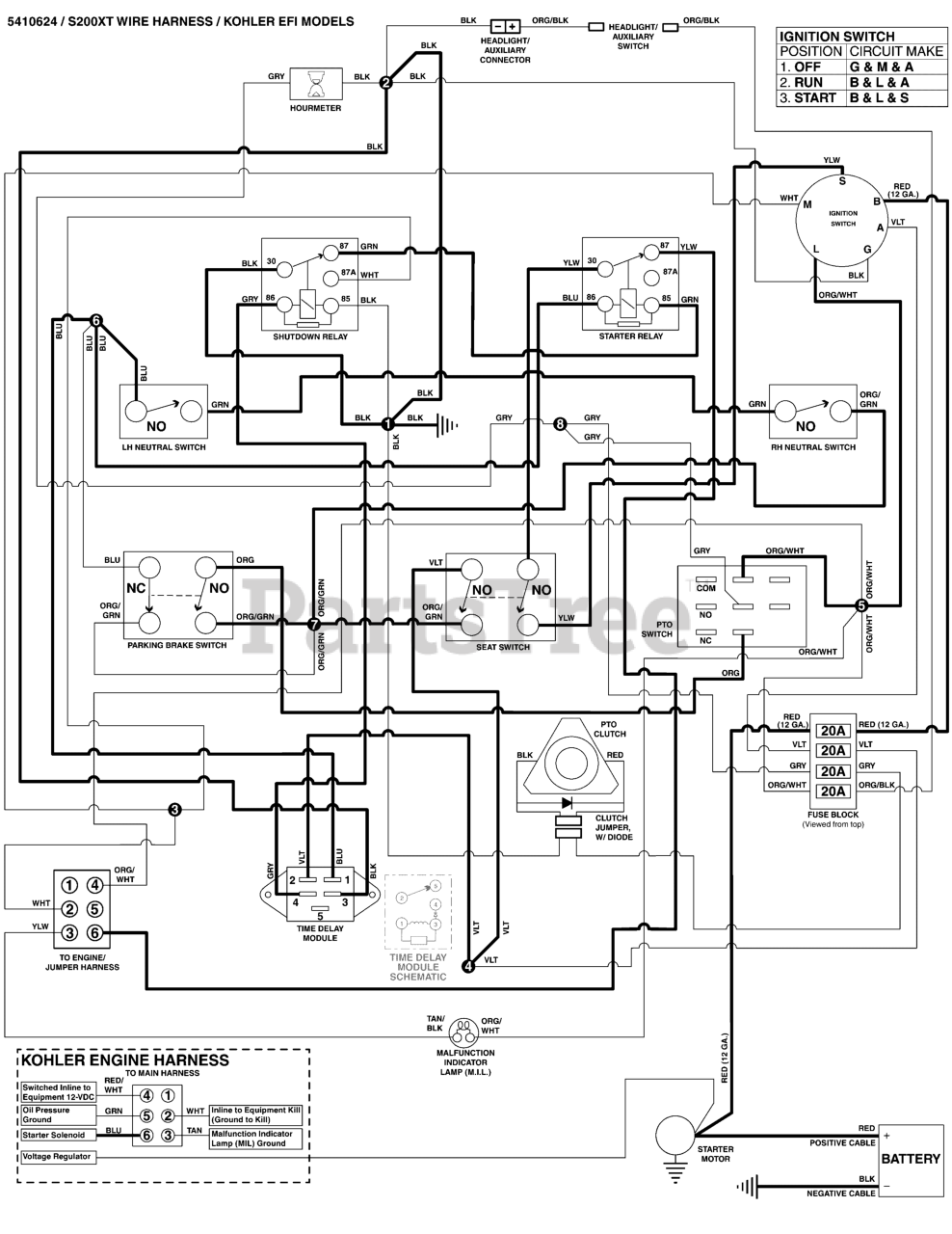

S 200XT (5901233.0) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 29hp Kohler (SN: 2016950122 & Below) Electrical Schematic - Cranking Circuit - Kohler EFI S/N: 2016950122 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 29hp Kohler
