S 200XT (5901233.0) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 29hp Kohler (SN: 2016950122 & Below) EVAP Canister Group - S/N: 2016803196 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 29hp Kohler

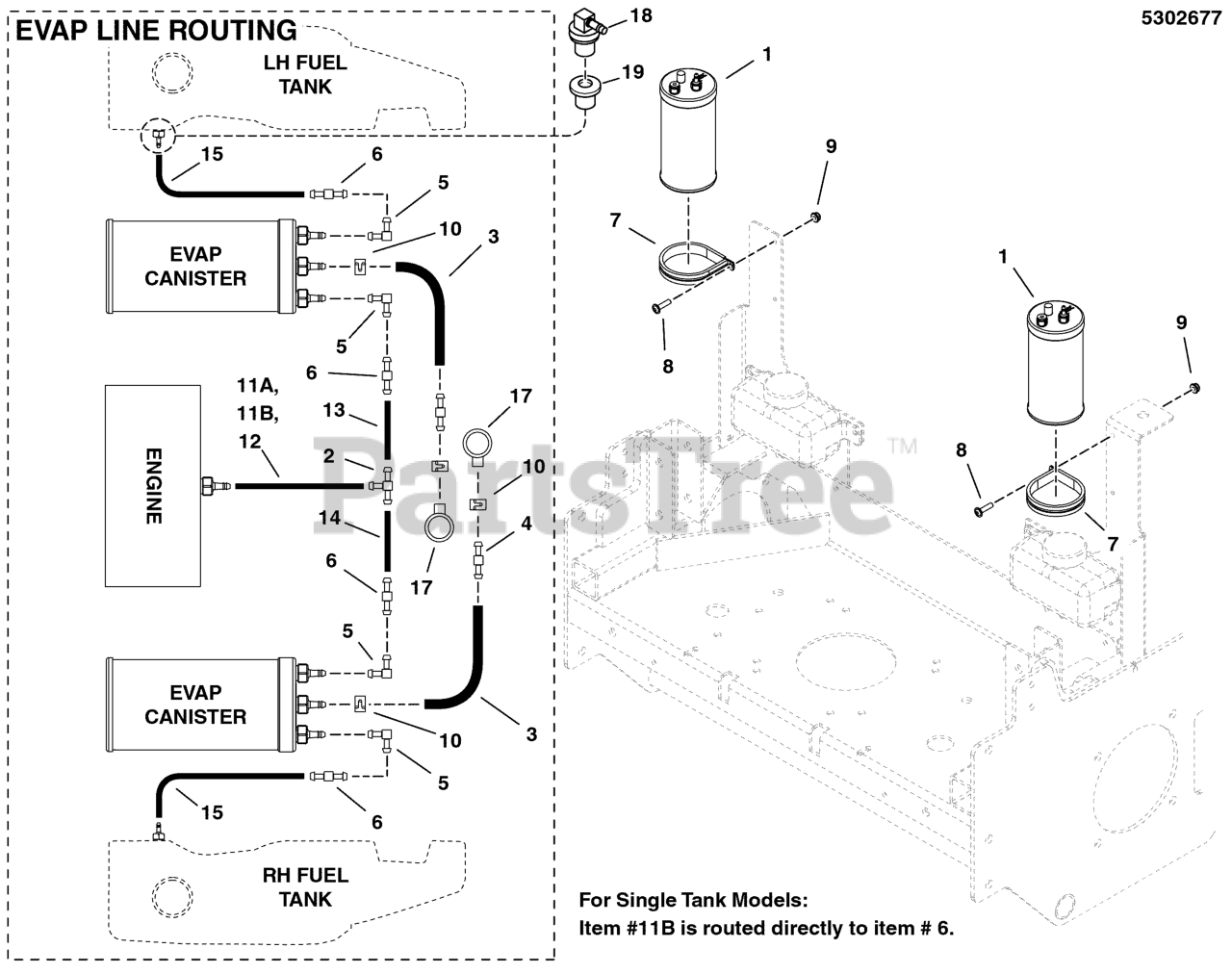

EVAP Canister Group - S/N: 2016803196 & Below Parts Diagram

  • Title

1

Snapper Pro 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

Note: (Qty: 1 - Single Tank Models)

$217.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103062

FITTING, 3/16" TEE, BARB TYPE, HDPE
(Superseded to 5103062YP)

Note: (Double Tank Models Only)

$10.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5103092

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

Note: (Qty: 1 - Single Tank Models)

$33.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5103080

FITTING, STRAIGHT, 10MMX10MM, PLASTIC
(Superseded to 5103080YP)

Note: (Qty: 1 - Single Tank Models)

$3.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5103082

FITTING, 90 DEG, 3/16X3/16, SANTOPRENE
(Superseded to 5103082YP)

Note: (Qty: 2 - Single Tank Models)

$10.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5103084

FITTING, STRAIGHT, 3/16X3/16, PLASTIC
(Superseded to 5103084YP)

Note: (Qty: 2 - Single Tank Models)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

Note: (Qty: 2 - Single Tank Models)

$7.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

Note: (Qty: 2 - Single Tank Models)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

Note: (Qty: 2 - Single Tank Models)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

Note: (Qty: 2 - Single Tank Models)

$3.49

$

In Stock, only 2 left!

0

11a

Snapper Pro 7700552X17P5

HOSE, VAPOR, 5MM ID, 17.50 LG

Note: (Briggs & Stratton Models - Double Tank)

$5.99

$

Usually ships in 2-12 days

0

11b

Snapper Pro 7700552X45

HOSE, VAPOR, 5MM ID, 45.00 LG
(Superseded to 7700552X45FS)

Note: (Briggs & Stratton Models - Single Tank)

$11.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 7700552X32

HOSE, VAPOR, 5MM ID, 32.00 LG
(Superseded to 7700552X32YP)

Note: (Kawasaki Models)

$9.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 7700552X29

HOSE, VAPOR, 5MM ID, 29.00 LG
(Superseded to 7700552X29YP)

Note: (All Other Models - Double Tank Models Only)

$7.49

$

Usually ships in 2-12 days

0

13

Snapper Pro 7700552X4

HOSE, VAPOR, 5MM ID, 4.00 LG
(Superseded to 7700552X4FS)

Note: (Briggs & Stratton Models - Double Tank Models Only)

$2.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7700552X40

HOSE, VAPOR, 5MM ID, 40.00 LG
(Superseded to 7700552X40FS)

Note: (All Other Models - Double Tank Models Only)

$10.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 7700552X48

HOSE, VAPOR, 5MM ID, 48.00 LG

Note: (Briggs & Stratton Models - Double Tank Models Only)

$10.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 7700552X8

HOSE, VAPOR, 5MM ID, 8.00 LG
(Superseded to 7700552X8FS)

Note: (Qty: 1 - Single Tank Models)

$3.49

$

Usually ships in 2-12 days

0

16

DECAL, EPA CERTIFICATION

Note: (Located on frame near Serial Tag)

$

$

Not available

17

Snapper Pro 1752800

DUST FILTER, CANISTER (SV)
(Superseded to 1752800YP)

Note: (Qty: 1 - Single Tank Models)

$15.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 770046

REMOTE VENT ASSEMBLY

Note: (Qty: 1 - Single Tank Models)

$16.99

$

In Stock, only 1 left!

0

19

Snapper Pro 209043

GROMMET
(Superseded to 799624)

Note: (Qty: 1 - Single Tank Models)

$8.99

$

In Stock, only 2 left!

0
