S 200XT (5901233.0) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 29hp Kohler (SN: 2016950122 & Below) Instrument Control Panel Group - EFI Models Parts Diagram

S200XT Series 61" Zero-Turn Mower, 29hp Kohler

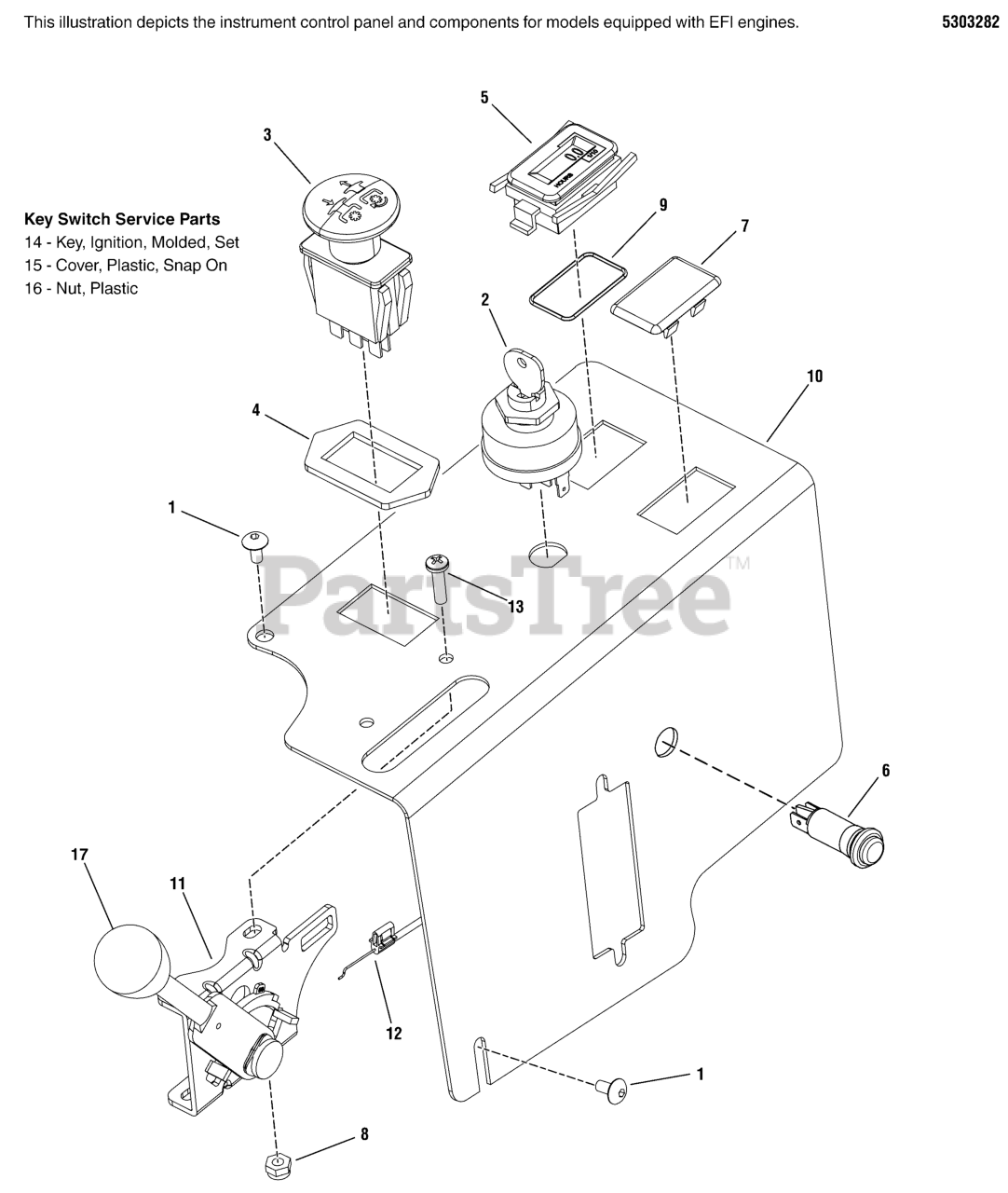

Instrument Control Panel Group - EFI Models Parts Diagram

  • Title

1

Snapper Pro 5025299X4

SCREW, ALLEN HEAD 1/4-20X.500 ZINC PHOS
(Superseded to 5106469)

$2.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5020927

SWITCH, IGNITION, 6 POST
(Superseded to 5020927FS)

$33.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5022180

SWITCH, BLADE ENGAGEMENT
(Superseded to 1722887SM)

$33.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5022222

RING, SWITCH RETAINER
(Superseded to 5022222SM)

$4.49

$

In Stock, only 1 left!

0

5

* HOUR METER, ASSEMBLY

Note: (S/N: 2015551938 & Above)

$

$

Not available

6

Snapper Pro 5103809

LIGHT, INDICATOR, PANEL, LED, RED
(Superseded to 5103809YP)

$29.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 1709188

PLUG, .820X1.44 HOLE, BLACK PLASTIC
(Superseded to 1709188SM)

$4.99

$

In Stock, Qty 6

0

8

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5022269

O-RING, 7/8 ID X 1/16 W
(Superseded to 5022269SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5410664A

PLATE, CONTROL PANEL, KOHLER, S200XT - BLK

Note: (S/N: 2016950122 & Below)

$29.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5413229A

PLATE, CONTROL PANEL, 200XT, EFI
(Superseded to 5413229AAFS)

Note: (S/N: 2016950123 & Above)

$29.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5101537

LEVER, THROTTLE CONTROL, HEAVY-DUTY
(Superseded to 5101537SM)

$48.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5101073

CABLE, THROTTLE, 42"
(Superseded to 5101073SM)

$33.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5022789

KEY, IGNITION MOLDED SET

Note: (SV)

$

$

Currently unavailable

15

Snapper Pro 5022790

COVER, PLASTIC, SNAP ON
(Superseded to 1704346SM)

Note: (SV)

$4.49

$

In Stock, only 1 left!

0

16

Snapper Pro 5022791

PLASTIC NUT
(Superseded to 5022791SM)

Note: (SV)

$3.49

$

Usually ships in 2-12 days

0
