S 200XT (5901233.0) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 29hp Kohler (SN: 2016950122 & Below) Motion Control Group S/N: 2017681136 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 29hp Kohler

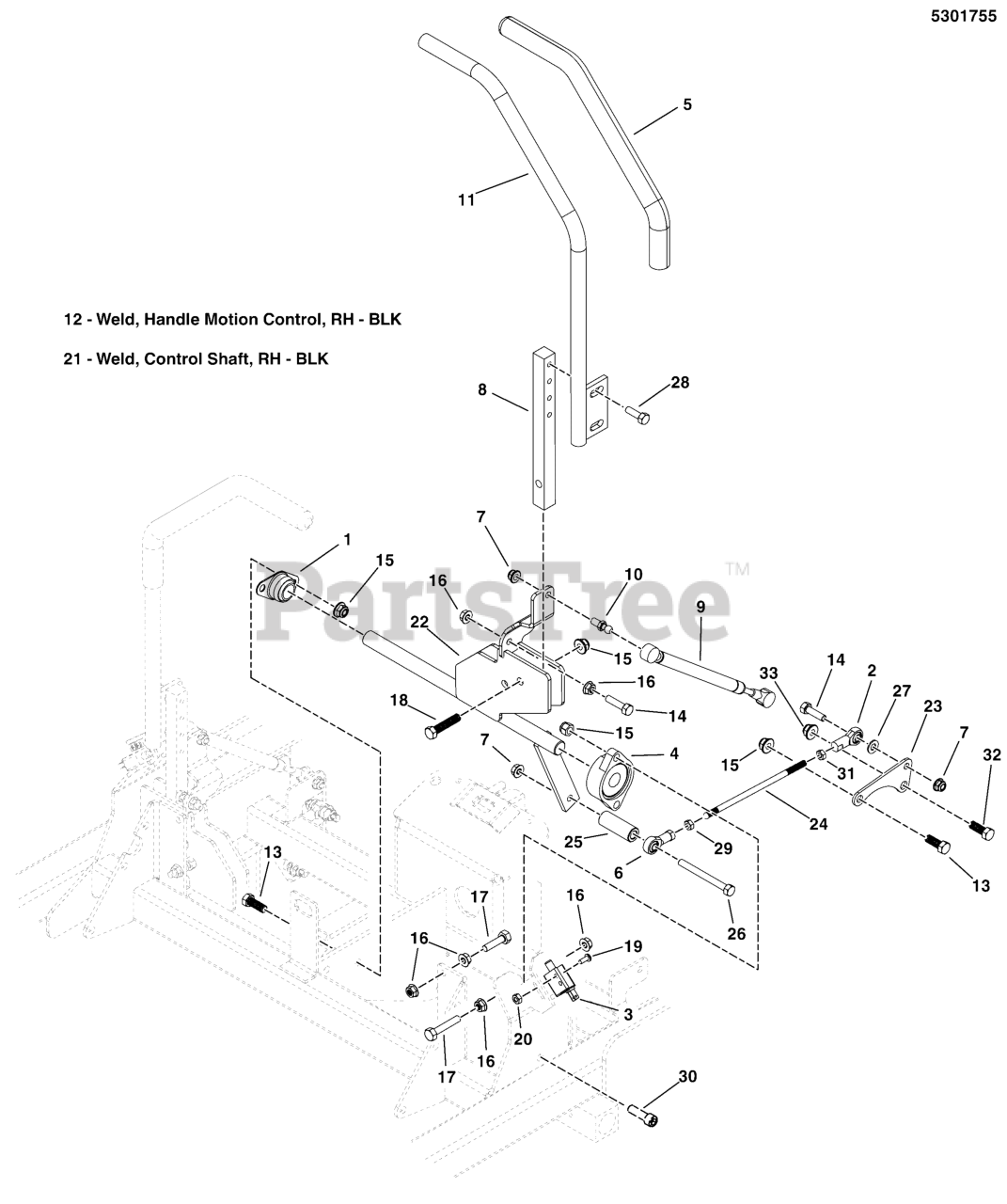

Motion Control Group S/N: 2017681136 & Below Parts Diagram

  • Title

1

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4"
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 8

0

2

Snapper Pro 5104578

BALL JOINT 5/16-24 RH FEMALE STAMPED STL
(Superseded to 5104578YP)

$11.99

$

In Stock, only 2 left!

0

3

Snapper Pro 5021451

SWITCH, PLUNGER, N.O., BOLT-ON
(Superseded to 5021451SM)

$11.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5021499

BEARING, FLANGE
(Superseded to 5021499SM)

$55.99

$

In Stock, only 2 left!

0

5

Snapper Pro 5022068

GRIP, FOAM, 3/4" ID, 16"" LONG
(Superseded to 5022068SM)

Note: (S/N: 2017501539 & Below)

$11.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5104722

GRIP, FOAM, 1" ID, 16" LONG
(Superseded to 5104722FS)

Note: (S/N: 2017501540 & Above)

$10.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5104579

BALL JOINT 5/16-24 LH FEMALE STAMPED STL
(Superseded to 5104579FS)

$10.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE NUT
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper Pro 5103106A

MOUNT, CONTROL ARM - BLK
(Superseded to 5103106AYP)

Note: (10.95" Total Length, 3 Adjustment Holes)

$54.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5100940

DAMPENER, CONTROL,#(P6709/P3610)
(Superseded to 5100940SM)

$55.99

$

In Stock, only 2 left!

0

10

Snapper Pro 5100941

BALL STUD, 5/16 X .50,# PC-477-2)
(Superseded to 5100941SM)

$4.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5400636A

WELD, HANDLE MOTION CONTROL LH - BLK
(Superseded to 5400636AYP)

Note: (S/N: 2017501539 & Below)

$50.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5414431A

WELD, HANDLE MOTION CNTRL, 19.0, 1.0, LH - BLK
(Superseded to 5414431AA)

Note: (S/N: 2017501540 & Above)

$54.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5400637A

WELD, HANDLE MOTION CONTROL RH - BLK

Note: (Not Illustrated)(S/N: 2017501539 & Below)

$

$

Currently unavailable

12

Snapper Pro 5414432A

WELD, HANDLE MOTION CNTRL, 19.0, 1.0, RH - BLK
(Superseded to 5108431AA)

Note: (Not Illustrated)(S/N: 2017501540 & Above)

$49.99

$

In Stock, only 1 left!

0

13

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

14

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4" GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

15

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 10

0

16

Snapper Pro 5025127

NUT, 5/16-18 HEX SERRATED FLANGE (SMALL)
(Superseded to 5025127SM)

$3.49

$

In Stock, Qty 9

0

17

Snapper Pro 5025055X14

BOLT, 5/16-18 X 1-3/4 TFL, GD5 YZ
(Superseded to 5025055X14SM)

$3.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

19

Snapper Pro 5025179X4

SCREW, #10-24 X 1/2" ROUND PHILLIPS

$

$

Currently unavailable

20

Snapper Pro 5025029

NUT, HEX, #10-24
(Superseded to 5025029SM)

$2.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5405072A

WELD, CONTROL SHAFT, RH - S200XT - BLK

Note: (Not Illustrated)

$128.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5405073A

WELD, CONTROL SHAFT, LH - S200XT- BLK

$

$

Not available

23

Snapper Pro 5405230A

PLATE, HYDRO CONNECTOR, S200XT - BLK

$5.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5102124

ROD, HYDRO LINKAGE - S200XT - YZ
(Superseded to 5102124YP)

$13.99

$

In Stock, only 1 left!

0

25

Snapper Pro 5101245

SPACER, .38 X .75 X 1.25, YZ
(Superseded to 5101245YP)

$7.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025011X20

BOLT, 5/16-18 X 2-1/2" GD5 YZ
(Superseded to 5025011X20FS)

$3.49

$

In Stock, only 1 left!

0

27

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

28

Snapper Pro 80003531

SCREW, 5/16-18x0.750, GR5, WHIZ-LOCK, ZC
(Superseded to 9357MA)

$5.49

$

In Stock, Qty 15

0

29

Snapper Pro 5025033

NUT, Hex, 5/16-24
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025327

BOLT, Allen Head, 3/8-16 x 1-1/4
(Superseded to 5025327SM)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5023212

NUT, 5/16-24 HEX, LH
(Superseded to 5023212SM)

$3.49

$

Usually ships in 2-12 days

0

32

Snapper Pro 5025015X6

BOLT, 7/16-14 X 3/4, GD 5 YZ
(Superseded to 5025015X6SM)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025044

NUT, 7/16-14 HEX TOP LOCK
(Superseded to 5025044SM)

$4.49

$

Usually ships in 2-12 days

0
