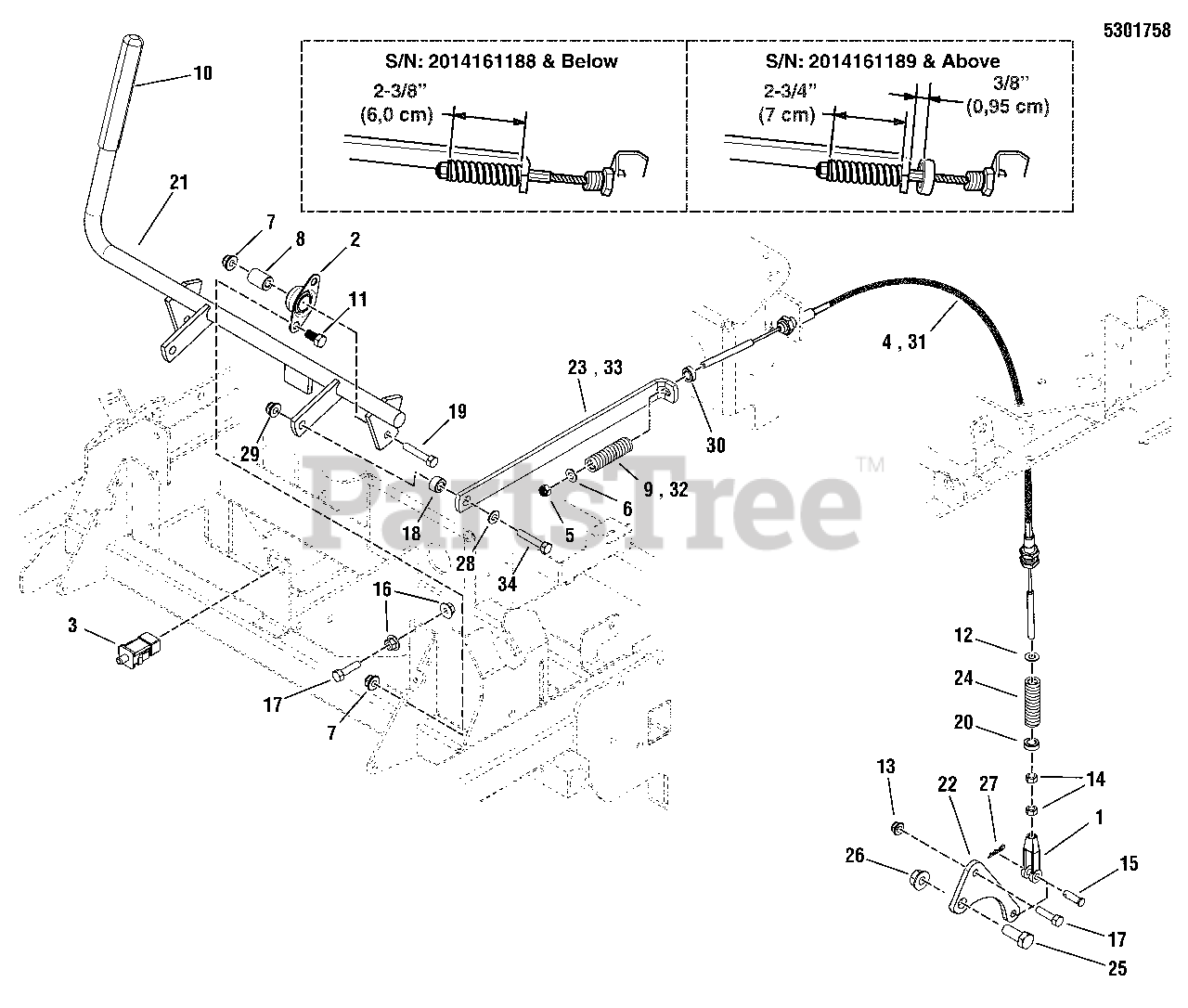

S 200XT (5901233.1) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 29hp Kohler (SN: 2016950123 & Above) Parking Brake Group S/N: 2017681136 & Below Parts Diagram

S200XT Series 61" Zero-Turn Mower, 29hp Kohler

Parking Brake Group S/N: 2017681136 & Below Parts Diagram

  • Title

1

Snapper Pro 5023323

CLEVIS, 5/16-24, STEEL, CLEAR ZINC
(Superseded to 5023323SM)

$9.49

$

Usually ships in 2-12 days

0

2

Snapper Pro 5021098

BEARING, BRONZE FLANGE, 3/4
(Superseded to 5021098SM)

$13.99

$

In Stock, Qty 7

0

3

Snapper Pro 7022886

SWITCH, DP NO/NC SNAP-IN
(Superseded to 7022886YP)

$14.99

$

In Stock, Qty 20+

0

4

Snapper Pro 5023324

CABLE, PARKING BRAKE
(Superseded to 5023324SM)

Note: (S/N: 2014161188 & Below)

$81.99

$

In Stock, only 1 left!

0

5

Snapper Pro 5025045

NUT, 5/16-24 HEX NYLON LOCK
(Superseded to 5025045SM)

$3.49

$

In Stock, Qty 7

0

6

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

7

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

8

Snapper Pro 5042134

SPACER, .32 X .75 X 1.06
(Superseded to 5042134SM)

$6.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5048719

SPRING-COMP, .75 X .162 X 2.5
(Superseded to 5048719SM)

Note: (S/N: 2014161188 & Below)

$9.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5101038

GRIP, FOAM, 3/4 ID X 6 X .187
(Superseded to 5101038SM)

$7.49

$

In Stock, only 1 left!

0

11

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

12

Snapper Pro 5025150

WASHER, 1/2 USS
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

13

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLON LOCK
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025033

NUT, 5/16-24 HEX
(Superseded to 5025033FS)

$3.49

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025213X8

PIN-CLEVIS, 5/16 X 1 YZ
(Superseded to 5025213X8SM)

$4.99

$

In Stock, only 1 left!

0

16

Snapper Pro 5025139

NUT, 5/16-18 HEX SERRATED FLANGE (LARGE)
(Superseded to 5025139SM)

$3.49

$

In Stock, only 2 left!

0

17

Snapper Pro 5025011X10

BOLT, 5/16-18 X 1-1/4 GD5 YZ
(Superseded to 5025055X10YP)

$3.49

$

In Stock, only 1 left!

0

18

Snapper Pro 5102289

SPACER, .38 X .50 X .31, CZ
(Superseded to 5102289YP)

$6.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025011X14

BOLT, 5/16-18 X 1-3/4 GD5 YZ
(Superseded to 5025011X14SM)

$3.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5061227

BUSHING, DECK PIVOT
(Superseded to 5061227SM)

$13.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5405833A

WELD, BRAKE SHAFT - BLK

$68.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5405383A

PLATE, BRAKE ARM EXTENSION - BLK

$11.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5405406D

LINK, BRAKE LOCK - RED

Note: (S/N: 2014161188 & Below)

$15.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5022845

SPRING, COMP, 1.1 X OD. X .085 WIRE X 5
(Superseded to 5022845SM)

$6.49

$

In Stock, Qty 9

0

25

Snapper Pro 5025017X10

BOLT, 1/2-13 X 1-1/4 GD5 CZ
(Superseded to 5025017X10YP)

$3.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5025332

NUT, 1/2-13 HEX SIDE LOCK
(Superseded to 5025332SM)

$3.49

$

In Stock, only 3 left!

0

27

Snapper Pro 5025203X6

PIN, COTTER, 1/8 X 3/4
(Superseded to 5025203X6SM)

$3.99

$

In Stock, only 1 left!

0

28

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

29

Snapper Pro 5025100

NUT, 3/8-16 HEX SIDE LOCK
(Superseded to 5025100SM)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5020047

COLLAR, 5/16 SET
(Superseded to 5020047SM)

Note: (S/N: 201416189 & Above)

$7.49

$

Usually ships in 2-12 days

0

31

Snapper Pro 5102568

CABLE, PARKING BRAKE, S200XT
(Superseded to 5102568YP)

Note: (S/N: 201416189 & Above)

$103.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5100385

SPRING, COMP. 1/2 ID X .140 WIRE X 3.25
(Superseded to 5100385YP)

Note: (S/N: 201416189 & Above)

$9.49

$

Usually ships in 2-12 days

0

33

Snapper Pro 5406710A

LINK, BRAKE LOCK - BLK

Note: (S/N: 201416189 & Above)

$12.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

In Stock, only 3 left!

0
