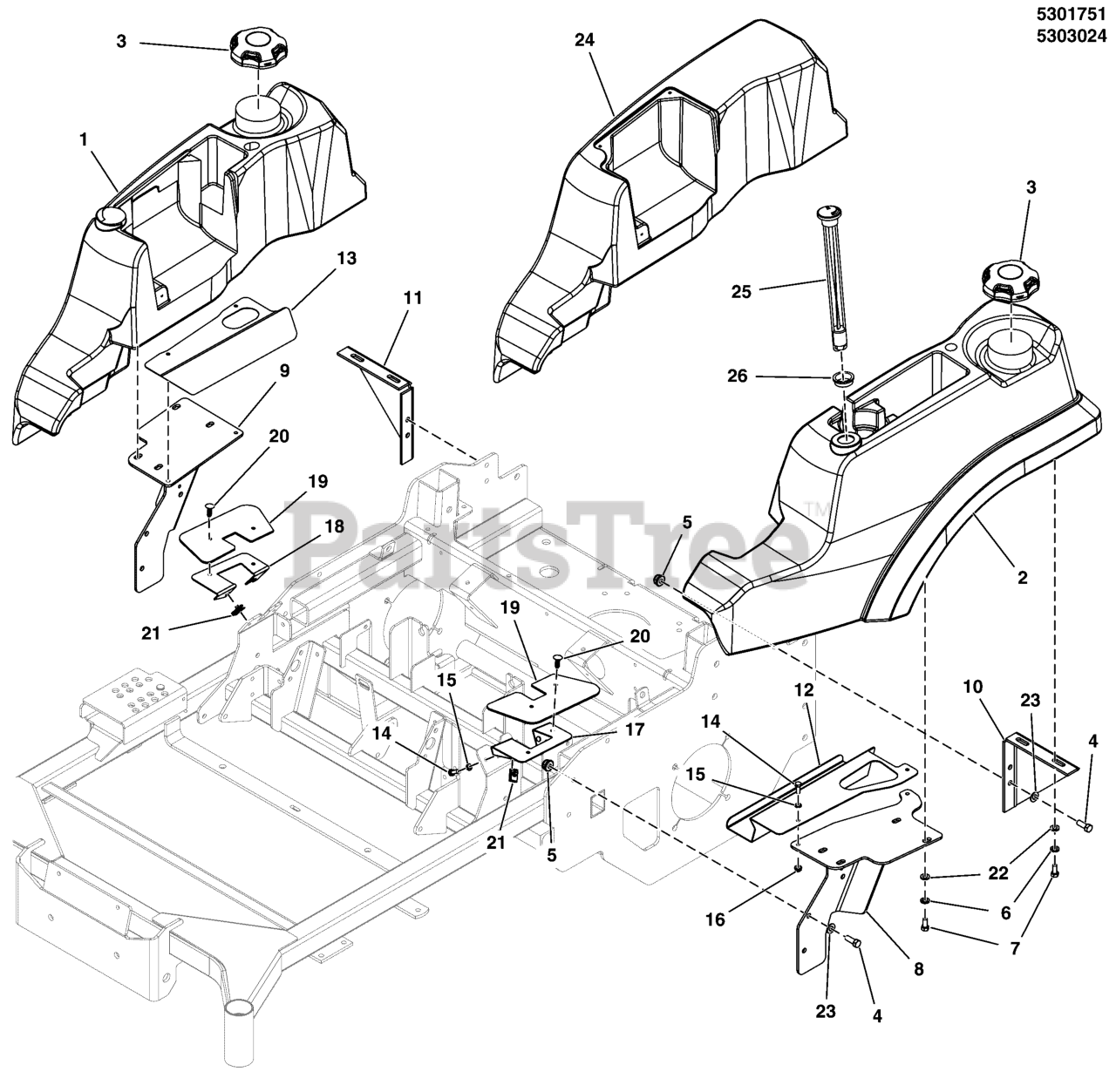

S 200XT (5901708) - Snapper Pro S200XT Series 61" Zero-Turn Mower, 32hp Briggs & Stratton Fuel Tank & Mount Group Parts Diagram

S200XT Series 61" Zero-Turn Mower, 32hp Briggs & Stratton

Fuel Tank & Mount Group Parts Diagram

  • Title

1

Snapper Pro 5103952

TANK, FUEL, 5 GAL, SNP-PRO, RH, 2013
(Superseded to 5103952FS)

Note: (Models w/ two fuel tanks)

$462.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5103953

TANK, FUEL, 5.75 GAL, SNP-PRO, LH, 2013
(Superseded to 5103953FS)

$509.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

$40.99

$

In Stock, only 1 left!

0

4

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

5

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 17

0

6

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

8

Snapper Pro 5413313A

WELD, FUEL MOUNT, 200XT, LH - BLK
(Superseded to 5413313AAFS)

$75.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5413315A

WELD, FUEL MOUNT, 200XT, RH - BLK

$

$

Currently unavailable

10

Snapper Pro 5411930A

MOUNT, REAR TANK, LH - BLK

$32.99

$

Usually ships in 2-12 days

0

11

Snapper Pro 5411929A

MOUNT, REAR TANK, RH - BLK
(Superseded to 5411929AAFS)

$30.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5416058A

GUARD, SEAT, LH, S200XT - BLK
(Superseded to 5416058AFS)

$35.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5415046A

GUARD, SEAT, RH, F210Z - BLK
(Superseded to 5415046AFS)

$15.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5025010X6

BOLT, 1/4-20 X 3/4 GD5 CZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 13

0

15

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5408339A

PLATE, FLAP MOUNTING, S200XT - LH - BLK

$11.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5408340A

PLATE, FLAP MOUNTING, S200XT - RH - BLK

$11.99

$

Usually ships in 2-12 days

0

19

Snapper Pro 5103129

FLAP, CONTROL, S200XT
(Superseded to 5103129FS)

$11.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5025431

PUSH RIVET (TREE TYPE), BLACK
(Superseded to 5025431SM)

$4.49

$

Usually ships in 2-12 days

0

21

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper Pro 5025292

WASHER, 5/16 F436 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

23

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

24

Snapper Pro 5103956

TANK, FENDER, SNP-PRO, RH, 2013
(Superseded to 5103956FS)

Note: (Models w/ one fuel tank)

$228.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5022917

GAUGE, FUEL, 12
(Superseded to 5022917FS)

Note: (SV)

$48.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

Note: (SV)

$6.99

$

In Stock, only 2 left!

0
