S 427 (967334201) - Husqvarna Log Splitter (2015-01) FRAME Parts Diagram

Log Splitter

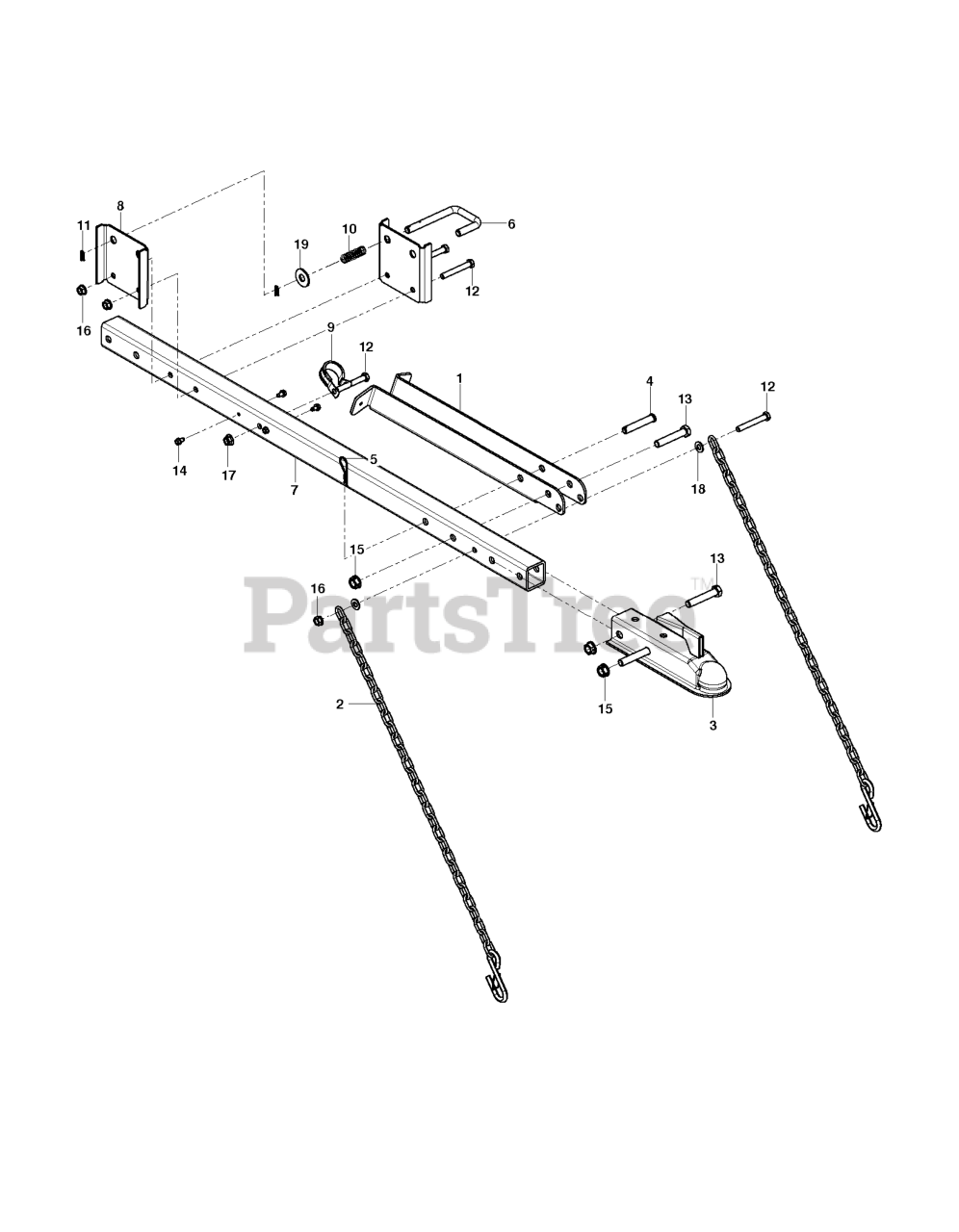

FRAME Parts Diagram

  • Title

8

Husqvarna 588012301

GUIDE GUIDE, LOCK DOWN

$

$

Not available

12

Husqvarna 588010601

BOLT BOLT HEX .38-16X3.00 GR5

$

$

Not available

6

Husqvarna 588012901

LOCK LOCK, BEAM

$

$

Not available

7

Husqvarna 588011801

DRAWBAR DRAWBAR, TUBE GRAY

$

$

Not available

1

Husqvarna 588012801

SUPPORT LEG SUPPORT FRONT

$

$

Not available

10

Husqvarna 588031401

SPRING SPRING, COMP .058X.65X2

$

$

Not available

9

Husqvarna 588011002

CLAMP CLAMP, CUSHIONED STEEL

$9.49

$

Usually ships in 3-10 days

0

2

Husqvarna 588010801

CHAIN CHAIN, SAFETY 3/16"-30LI

$

$

Not available

3

Husqvarna 588012501

HITCH HITCH, BALL-2"

$79.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588031701

WASHER WASHER, FL-STL.563X1.38

$3.49

$

Usually ships in 3-10 days

0

4

Husqvarna 588013202

PIN PIN, CLEVIS .50 X 3.00 YWZ

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588010602

BOLT BOLT HEX .50-13 X 3.00 GR

$

$

Not available

16

Husqvarna 588013104

NUT NUT, LK-TOP-FLG .38-16 YWZ

$

$

Not available

5

Husqvarna 588012401

PIN HAIRPIN, #7 CLIP .094X2.31

$3.49

$

Usually ships in 3-10 days

0
