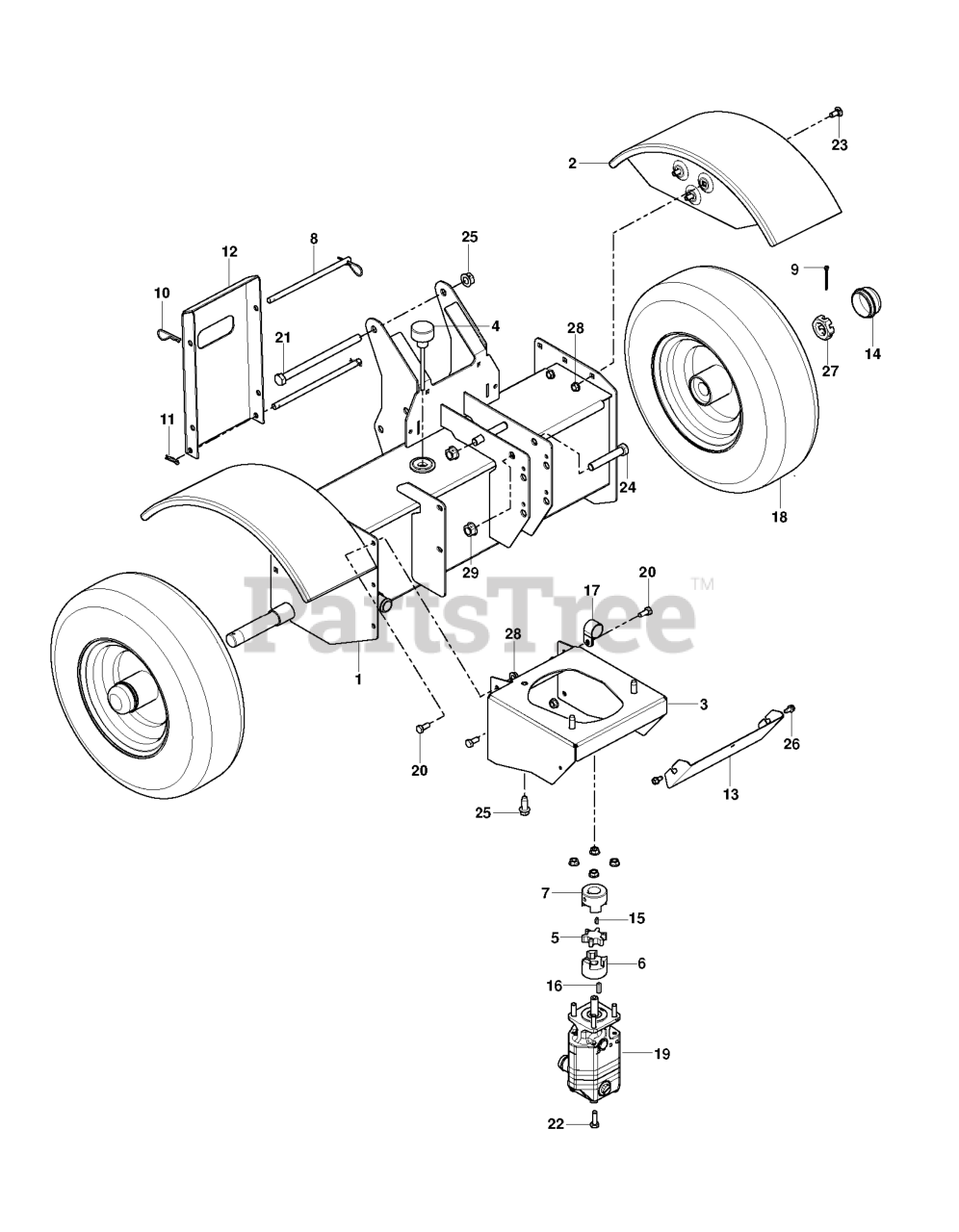

S 427 (967334201) - Husqvarna Log Splitter (2015-01) HYDRAULIC FRAME Parts Diagram

Log Splitter

HYDRAULIC FRAME Parts Diagram

  • Title

21

Husqvarna 588010603

BOLT BOLT HEX .50-13 X 7.50 GR

$

$

Not available

18

Husqvarna 588010401

WHEEL ASSY ASSY, TIRE/WHEEL 4.

$249.99

$

Usually ships in 3-10 days

0

28

Husqvarna 588013103

NUT NUT, LK-TOP-FLG .31-18 YWZ

$

$

Not available

24

Husqvarna 588010602

BOLT BOLT HEX .50-13 X 3.00 GR

$

$

Not available

9

Husqvarna 588013203

PIN PIN, CTR .15 X 1.50 YWZC

$

$

Not available

3

Husqvarna 588013001

MOUNT MOUNT ENGINE

$148.99

$

Usually ships in 3-10 days

0

7

Husqvarna 588011202

COUPLER COUPLER - DRIVE, 7/8"

$22.99

$

Usually ships in 3-10 days

0

6

Husqvarna 588011201

COUPLER COUPLER - DRIVE 1/2"

$22.99

$

Usually ships in 3-10 days

0

22

Husqvarna 588064705

BOLT BOLT HEX .31-18 X 1.00 GR

$

$

Not available

25

Husqvarna 588013602

SCREW SCREW, TAP .38-16 X 1.00

$

$

Not available

8

Husqvarna 588711601

PIN PIN, .373 X 7.30 X 2X.109

$6.99

$

Usually ships in 3-10 days

0

23

Husqvarna 588010604

BOLT BOLT RDHDSQNK .31-18X.75

$

$

Not available

5

Husqvarna 588031201

PAD SPIDER, URATHANE

$6.99

$

Usually ships in 3-10 days

0

13

Husqvarna 588011301

COVER COVER, COUPLING

$

$

Not available

10

Husqvarna 588012401

PIN HAIRPIN, #7 CLIP .094X2.31

$3.49

$

Usually ships in 3-10 days

0

12

Husqvarna 588031501

SUPPORT SUPPORT, REAR LEG

$

$

Not available

16

Husqvarna 588012701

KEY KEY-SQ .188X.75X.188

$3.49

$

Usually ships in 3-10 days

0

11

Husqvarna 588070805

PIN PIN-HAIR, ENDRIES #25 YWZC

$

$

Not available

17

Husqvarna 588011001

CLAMP CLAMP, COUSHIONED STEEL

$

$

Not available

20

Husqvarna 588064704

BOLT BOLT HEX .31-18 X .75 GR5

$3.49

$

Usually ships in 3-10 days

0

15

Husqvarna 588012702

KEY KEY-WDRF .125X.50X.20 (HRD

$3.49

$

Usually ships in 3-10 days

0

2

Husqvarna 588012001

FENDER CURVED

$79.99

$

Usually ships in 3-10 days

0

14

Husqvarna 588010701

CAP CAP, DUST

$5.99

$

Usually ships in 3-10 days

0

27

Husqvarna 588013105

NUT NUT, SL 1.0-14

$

$

Not available

4

Husqvarna 588011701

DIPSTICK DPSTK-BREATHER, STEEL

$55.99

$

Usually ships in 3-10 days

0

19

Husqvarna 588013401

PUMP, SPLITTER-11 GPM

$853.99

$

Usually ships in 3-10 days

0

1

Husqvarna 588010901

CHASSIS, SMALL

$1252.99

$

Usually ships in 3-10 days

0
