S 50XT (5901272) - Snapper Pro S50XT Series 36" Zero-Turn Mower, 24hp Briggs & Stratton Fuel Tank Mount & Supply Group (Single Tank) Parts Diagram

S50XT Series 36" Zero-Turn Mower, 24hp Briggs & Stratton

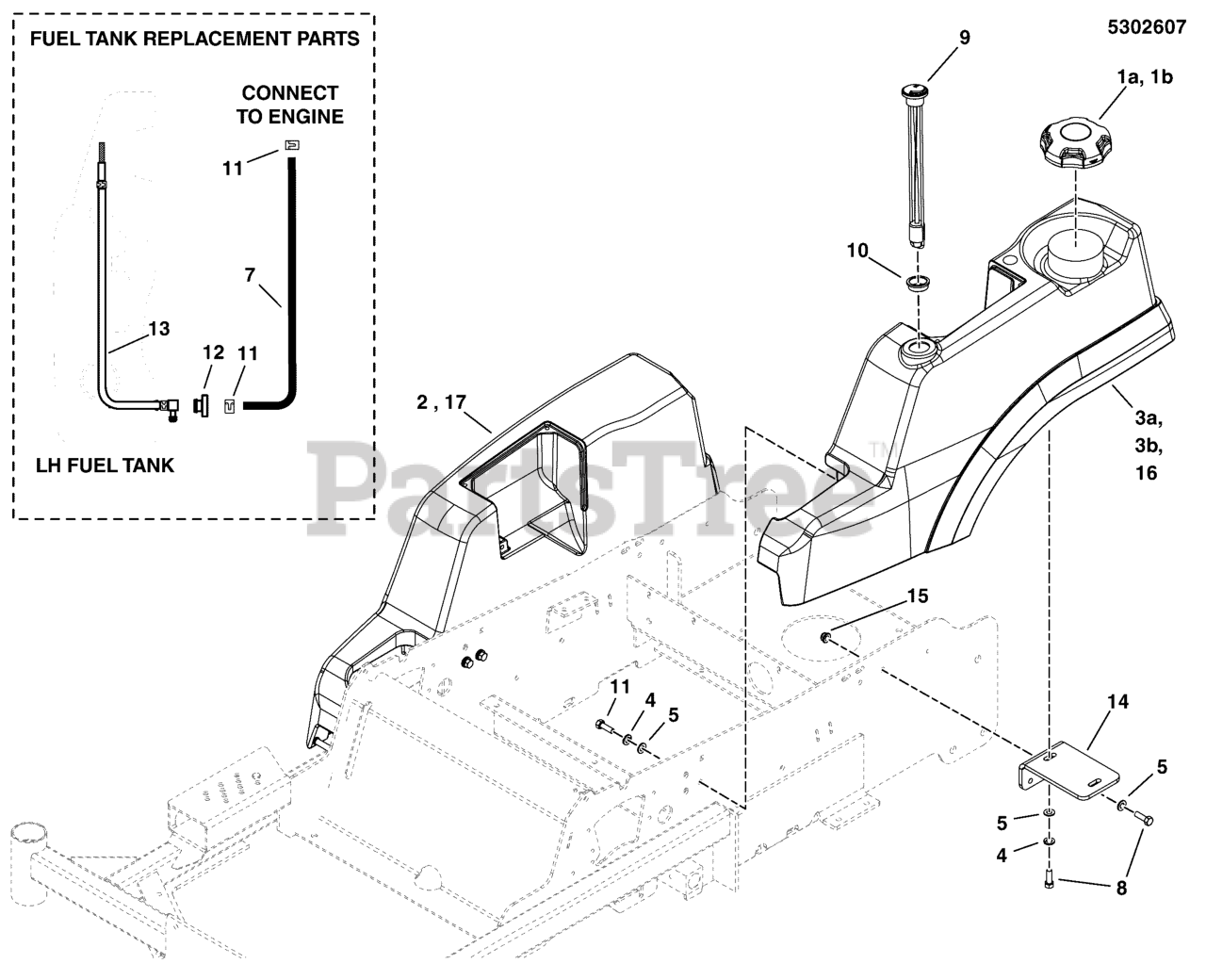

Fuel Tank Mount & Supply Group (Single Tank) Parts Diagram

  • Title

1a

Snapper Pro 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2014923026 & ABOVE)

$40.99

$

In Stock, only 2 left!

0

1b

Snapper Pro 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (S/N: 2014923025 & BELOW)

$30.99

$

In Stock, Qty 5

0

2

Snapper Pro 5103967

TANK, FENDER, RH
(Superseded to 5103967FS)

Note: (S/N: 2016499706 & BELOW)

$189.99

$

Usually ships in 2-12 days

0

3a

Snapper Pro 5103959

TANK, FUEL, LH
(Superseded to 5103959FS)

Note: (S/N: 2014923026 - 2016499706)

$497.99

$

Usually ships in 2-12 days

0

3b

Snapper Pro 5101367

TANK, FUEL, LH
(Superseded to 5103959FS)

Note: (S/N: 2014923025 & BELOW)

$497.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5023173

CLAMP, HOSE, 1.000 DIA.
(Superseded to 5023173SM)

Note: (Not Shown)

$3.99

$

Usually ships in 2-12 days

0

7

Snapper Pro 5050831X24

HOSE, FUEL, 1/4 IN, LW PRMTN, 24" LONG
(Superseded to 5050831X24YP)

$8.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5101378

FUEL GAUGE, 10"

Note: (SV)

$46.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5022917X1

GROMMET, FUEL GAUGE
(Superseded to 5022917X1SM)

Note: (SV)

$6.99

$

In Stock, only 1 left!

0

11

Snapper Pro 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, Qty 10

0

12

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

Note: (SV)

$11.99

$

In Stock, Qty 5

0

13

Snapper Pro 5101144

PICKUP TUBE ASSEMBLY, FUEL LINE

Note: (SV)

$33.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5408039A

MOUNT, TANK, REAR - BLK

$31.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5303959

TANK, FUEL, SNP-PRO, LH, 2013

Note: (S/N: 2016499707 & ABOVE)

$

$

Currently unavailable

17

Snapper Pro 5103967

TANK, FENDER, SNP-PRO, RH, 2013
(Superseded to 5103967FS)

Note: (S/N: 2016499707 & ABOVE)

$189.99

$

Usually ships in 2-12 days

0
