S-60 KH (53RN2RUD050) - Cub Cadet 60" Tank S Zero-Turn Mower, Kohler (2016) Engine Accessories Parts Diagram

60" Tank S Zero-Turn Mower, Kohler

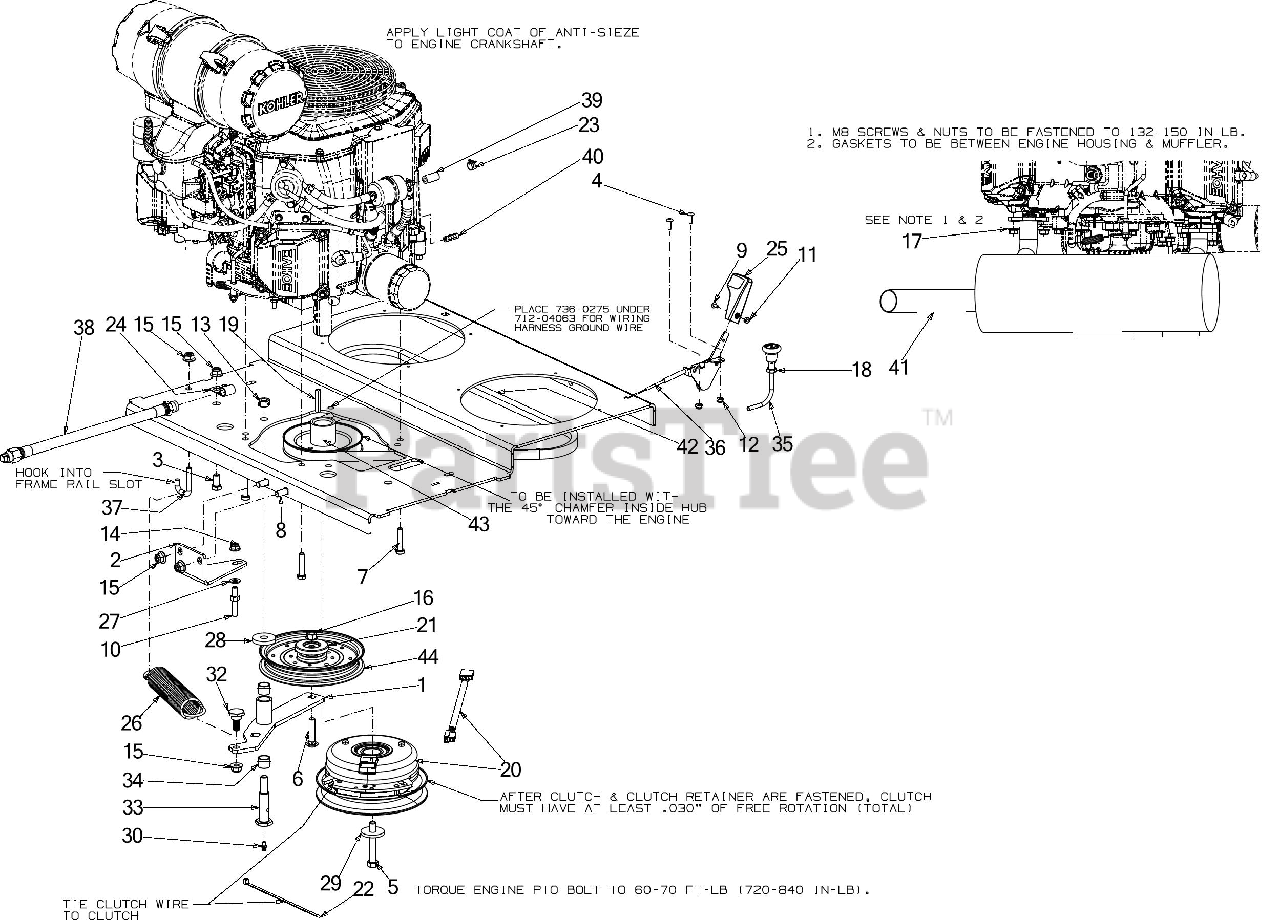

Engine Accessories Parts Diagram

  • Title

1

Cub Cadet 680-00227A-0637

TRANSMISSION IDLER BRACKET
(Superseded to 680E00227A)

$34.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 703-08607-0637

RETAINER BRACKET

$25.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0216

HEX SCREW 3/8-16 x .75

$4.49

$

In Stock, Qty 17

0

4

Cub Cadet 710-0425

SCREW #10-24 x .62

$4.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-04377

SCREW 7/16-20:2.75 GR5

$11.99

$

In Stock, only 2 left!

0

6

Cub Cadet 710-05376

CARRIAGE BOLT 3/8-16 x 1.75 GR5

$4.49

$

In Stock, Qty 11

0

7

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 8

0

8

Cub Cadet 710-3168

CARRIAGE BOLT 3/8-16 x 1.00 GR5

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-3217

SCREW #8-32X.38 LG

$6.99

$

In Stock, Qty 10

0

10

Cub Cadet 711-1637

STUD

$33.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 712-0142

HEX NUT 8-32

$4.49

$

In Stock, Qty 12

0

12

Cub Cadet 712-0161

HEX NUT

$4.49

$

In Stock, Qty 7

0

13

Cub Cadet 712-0290

HEX NUT

$4.99

$

In Stock, Qty 12

0

14

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04312

HEX FLANGE NUT

$3.99

$

In Stock, only 1 left!

0

18

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-0118

SQUARE KEY 1/4 x 1.50

$6.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 917-05184

ELECTRIC PTO CLUTCH

$499.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 721-04516

PULLEY CAP

$14.99

$

In Stock, only 1 left!

0

22

Cub Cadet 725-0157

7" CABLE TIE

$3.99

$

In Stock, only 3 left!

0

23

Cub Cadet 726-04123A

HOSE CLAMP

$3.99

$

In Stock, Qty 6

0

24

Cub Cadet 726-04124

J TYPE CLIP

$3.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 731-04914

THROTTLE CONTROL KNOB

$13.99

$

In Stock, only 2 left!

0

26

Cub Cadet 732-04915A

EXTENSION SPRING

$23.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 936-0275

FLAT WASHER
(Superseded to 736-0275)

$

$

Not available

28

Cub Cadet 736-3017

FLAT WASHER 47 x 1.50 x .225

$10.99

$

In Stock, Qty 5

0

29

Cub Cadet 736-3082A

FLAT WASHER .45 x 1.5 x .172 HT

$9.99

$

In Stock, Qty 17

0

30

Cub Cadet 937-0146

GREASE FITTING

$5.49

$

In Stock, only 2 left!

0

32

Cub Cadet 738-1126

SHOULDER SCREW .625 x .302 x 3/8-16

$12.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 738-3102

SHOULDER BOLT 7/16-14

$21.99

$

In Stock, Qty 8

0

34

Cub Cadet 741-04555

SLEEVE BEARING

$16.99

$

In Stock, Qty 10

0

35

Cub Cadet 946-04812

CHOKE CABLE

$37.99

$

In Stock, Qty 8

0

36

Cub Cadet 946-04840

THROTTLE CABLE 42"

$42.99

$

In Stock, only 1 left!

0

37

Cub Cadet 747-05707

ROD SPRING HOOK

$14.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 751-10291A

OIL DRAIN HOSE
(Superseded to 751-10291C)

$52.99

$

In Stock, Qty 5

0

39

Cub Cadet 751-10349-54

FUEL HOSE LOW PERMEATION

$53.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 751-12089-51

VENT HOSE 3/16 ID

$16.99

$

In Stock, only 2 left!

0

41

Cub Cadet 751-12519A

MUFFLER (KOHLER)

$208.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 954-05037

TRANSMISSION BELT 61.5
(Superseded to 954-05037A)

$47.99

$

In Stock, only 1 left!

0

43

Cub Cadet 756-04480A

DRIVE PULLEY
(Superseded to 756-04480B)

$53.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 756-04487

IDLER PULLEY

$66.99

$

In Stock, only 3 left!

0
