S 621 (12A-959I100) - Cub Cadet Walk-Behind Mower (1998) Deck Assembly Parts Diagram

Walk-Behind Mower

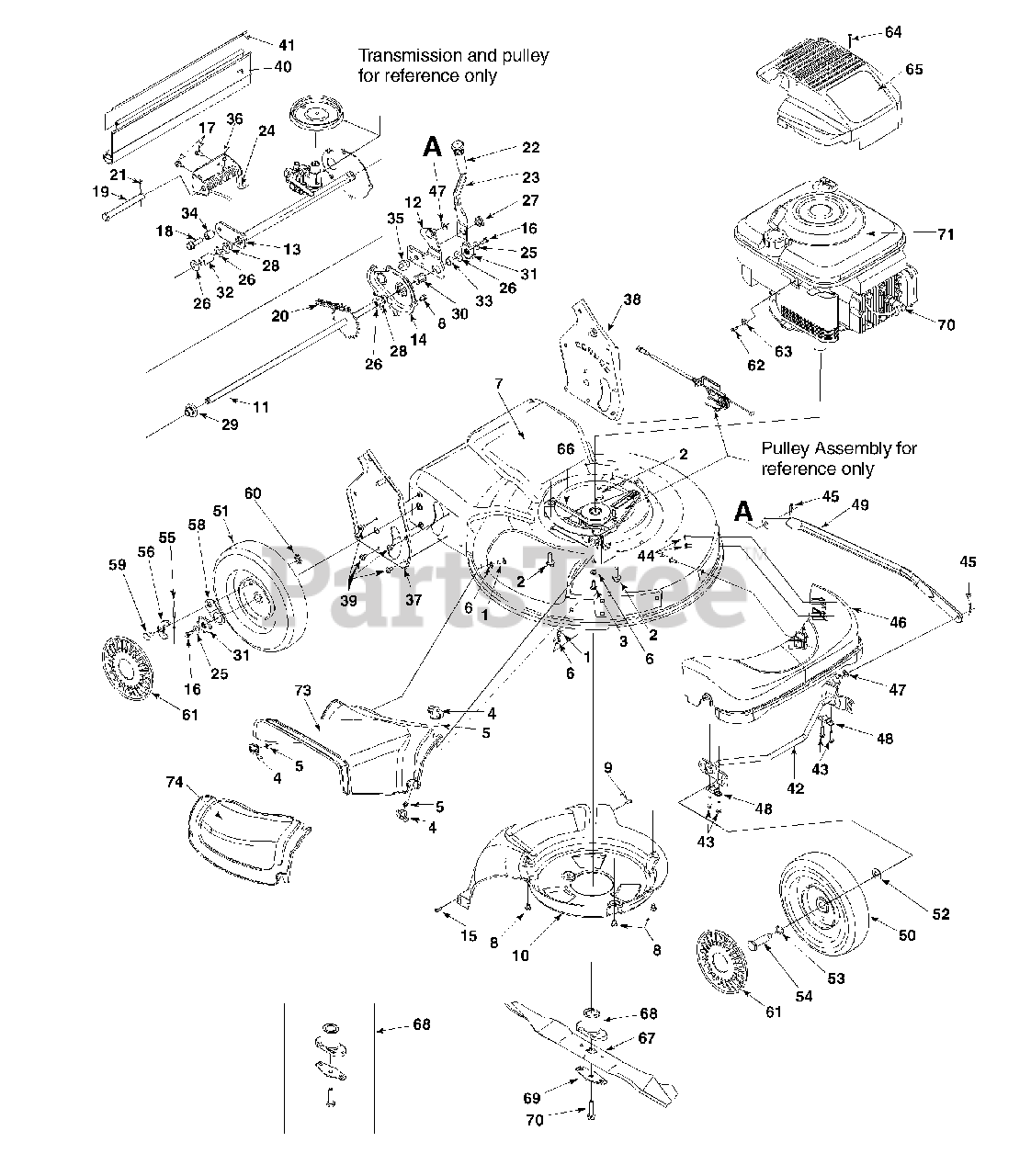

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0134

Scr. Carr. 1/4-20 x .62

$3.99

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0654A

Scr. TT:3/8-18:1.00

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0703

Scr. 1/4-20 x .750

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 726-0233

Nut, Push .25 I.D. x .50 O.D.

$3.99

$

In Stock, Qty 9

0

6

Cub Cadet 736-0204

Wash. Fl. .334 I.D.x .62 x.03

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 782-0046-0498

Deck - 21"
(Superseded to 782-0078B-0716)

$

$

Not available

8

Cub Cadet 710-0653

Scr. TT. 1/4-20 x .375

$4.49

$

In Stock, Qty 16

0

9

UNKNOWN

$

$

Not available

10

Cub Cadet 731-1828

Baffle
(Superseded to 731-08190A)

$34.99

$

In Stock, Qty 10

0

11

Cub Cadet 638-0012

Rear Axle Ass'y
(Superseded to 938-0012A)

$69.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 682-0531

Pivot Arm Ass'y
(Superseded to 682-0531-0637)

Variations

Cub Cadet 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 682-7526

Trans. Axle Ass'y
(Superseded to 682-7526-0637)

Variations

Cub Cadet 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$122.99

$

Usually ships in 3-6 days

0

$122.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 682-7528

Chain Cover Ass'y
(Superseded to 682-7528-0637)

Variations

Cub Cadet 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 710-0969

Scr., Truss Machine TT 1.0"

Note: Code N

$4.49

$

In Stock, only 3 left!

0

16

Cub Cadet 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0896

Scr., AB 1/4-14 x .825

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1315

Scr., 3/8 116 x .25

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 711-0835

Clevis Pin .50 Dia. x 4.82 Lg.
(Superseded to 911-0835)

$11.99

$

In Stock, Qty 6

0

20

Cub Cadet 713-0453

Chain-Endls. #48 .500P x 24L
(Superseded to 913-0453)

$11.99

$

In Stock, only 2 left!

0

21

Cub Cadet 714-0474

Cotter Pin .125 O.D. x .75

$4.49

$

In Stock, Qty 16

0

22

Cub Cadet 720-0223

Grip

$13.99

$

In Stock, Qty 9

0

23

Cub Cadet 732-0803A

Spring Lever

Note: Code N

$14.99

$

In Stock, Qty 20+

0

24

Cub Cadet 732-0832

Torsion Spring

$17.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0270

Bell Wash. .285 x .75 x .082

$3.99

$

In Stock, Qty 10

0

26

Cub Cadet 736-0369

Fl. Wash..508 I.D. 1.000 x.020

$4.49

$

In Stock, Qty 6

0

27

Cub Cadet 738-0529

Nut Shld. .825 Dia. x .165 Lg.
(Superseded to 938-0529)

$10.99

$

In Stock, only 4 left!

0

28

Cub Cadet 741-0324

Hx.Flg. Brg..506 I.D. x .590 L.
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

29

Cub Cadet 741-0522

Hx.Flg. Brg. .506 I.D. x.715 L.

$7.99

$

In Stock, only 2 left!

0

30

Cub Cadet 741-0978

Hx. Slv. Brg..504 I.D. x .830 L.

$4.49

$

In Stock, Qty 6

0

31

Cub Cadet 748-0318

Wheel Rachet
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 6

0

32

Cub Cadet 750-0151

Spa. .550 I.D. x /750 O.D.
(Superseded to 950-0151)

$9.99

$

In Stock, Qty 20+

0

33

Cub Cadet 750-0515

Spa. .51 .D. x .70 O.D. x 38 L.

$4.49

$

In Stock, Qty 6

0

34

Cub Cadet 750-0807

Spa. .385 x .624 x .700

$5.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 750-1056

Shld. Spa. .385 I.D. X .715 Lg.
(Superseded to 950-1056)

$6.99

$

In Stock, only 2 left!

0

36

Cub Cadet 782-0568

Brkt. - Ht. Adj. Spring
(Superseded to 782-0568B-0637)

Variations

Cub Cadet 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 682-3052-0662

Handle Brkt. Assembly R.H.

$

$

Not available

38

Cub Cadet 682-3053-0498

Handle Brkt. Assembly L.H.

$

$

Not available

39

Cub Cadet 710-1348

Scr. AB 1/4-14 x .500

$6.49

$

In Stock, only 3 left!

0

40

Cub Cadet 731-1901

Trail Shield
(Superseded to 731-1901A)

$37.99

$

In Stock, only 4 left!

0

41

Cub Cadet 732-0842

Trail Shield Wire

$5.99

$

In Stock, Qty 11

0

42

Cub Cadet 611-0064-0498

Fr. Axle Ass'y.
(Superseded to 611-0064-0637)

$91.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-1241

Hx Scr. Wash Hd. Hi.-Lo.

$6.49

$

In Stock, Qty 20+

0

44

Cub Cadet 710-1242

Scr. Torx, Truss Hi.-Lo.

$4.49

$

In Stock, Qty 19

0

45

Cub Cadet 714-0104

Cotter Pin .072 x 1.12 Lg.

$3.99

$

In Stock, Qty 20+

0

46

Cub Cadet 731-1836

Fr. Axle Cover

$135.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.49

$

In Stock, only 2 left!

0

48

Cub Cadet 741-0492A

Bush. Block .505 Dia. x .62

$5.99

$

In Stock, Qty 12

0

49

Cub Cadet 782-0565-0498

Control Arm
(Superseded to 782-0565-0637)

$34.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 734-1857

Wheel 7 x 2 Link Black

$42.99

$

In Stock, Qty 10

0

51

Cub Cadet 734-1838

Wheel 9 x 2 Link Beige, Sleeve
(Superseded to 734-1981A)

$43.99

$

In Stock, Qty 19

0

52

Cub Cadet 736-0105

Spr. Wash. .401 x .870 x .063

$3.99

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0504

Wave Wash .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

54

Cub Cadet 738-0102

Shldr Scr .498 x 1.445 x 3/8-16

$9.49

$

In Stock, Qty 11

0

55

Cub Cadet 10622B

Spring, Ratchet, Plastic

$4.49

$

In Stock, Qty 20+

0

56

Cub Cadet 748-0381

Pawl - R.H.

$11.99

$

In Stock, Qty 10

0

?57

Cub Cadet 748-0188B

Pawl - L.H.
(Superseded to 948-0188B)

Note: (Not Illustrated)

$10.99

$

In Stock, Qty 16

0

58

Cub Cadet 16855

Ratchet Pawl Plate

$5.99

$

In Stock, Qty 20+

0

59

Cub Cadet 731-1888

Hubcap

$10.99

$

In Stock, Qty 20+

0

60

Cub Cadet 712-0414

Top Lock Tab Weld Nut 1/4-20

$3.99

$

In Stock, Qty 16

0

61

Cub Cadet 731-0982A

Hubcap
(Superseded to 731-0982C)

$10.99

$

In Stock, Qty 20+

0

62

Cub Cadet 710-1237

Screw .620 Hx. Slt. Wsh.

$4.49

$

Usually ships in 3-6 days

0

63

Cub Cadet 751B213146

Casing Clamp, Throttle
(Superseded to BS-690798)

$5.49

$

In Stock, only 1 left!

0

64

Cub Cadet 710-1256

Scr. Hi-Lo #10 x 1.25

$5.99

$

In Stock, Qty 5

0

65

Cub Cadet 751B281440

Shroud

$

$

Not available

66

Cub Cadet 754-0460

Belt
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 14

0

67

Cub Cadet 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

Cub Cadet 753-0609

Blade Adapter Kit

$37.99

$

In Stock, Qty 15

0

69

Cub Cadet 736-0524A

Blade Bell Support
(Superseded to 736-0524B-1)

$5.49

$

In Stock, Qty 20+

0

70

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.49

$

In Stock, Qty 20+

0

71

Engine

$

$

Not available

?72

Cub Cadet 735-0639

Spark Plug Insulator

$

$

Not available

73

Cub Cadet 731-1832

Side Discharge Chute

$

$

Not available

74

Cub Cadet 731-1833

Mulch Cover
(Superseded to 931-1833A)

$41.99

$

In Stock, Qty 7

0

?75

Cub Cadet 710-0604

Scr. Hex. 5/15-18
(Superseded to 710-0604A)

$3.99

$

In Stock, Qty 20+

0

?76

Cub Cadet 725-0157

Cable Tie

$3.49

$

In Stock, only 4 left!

0
