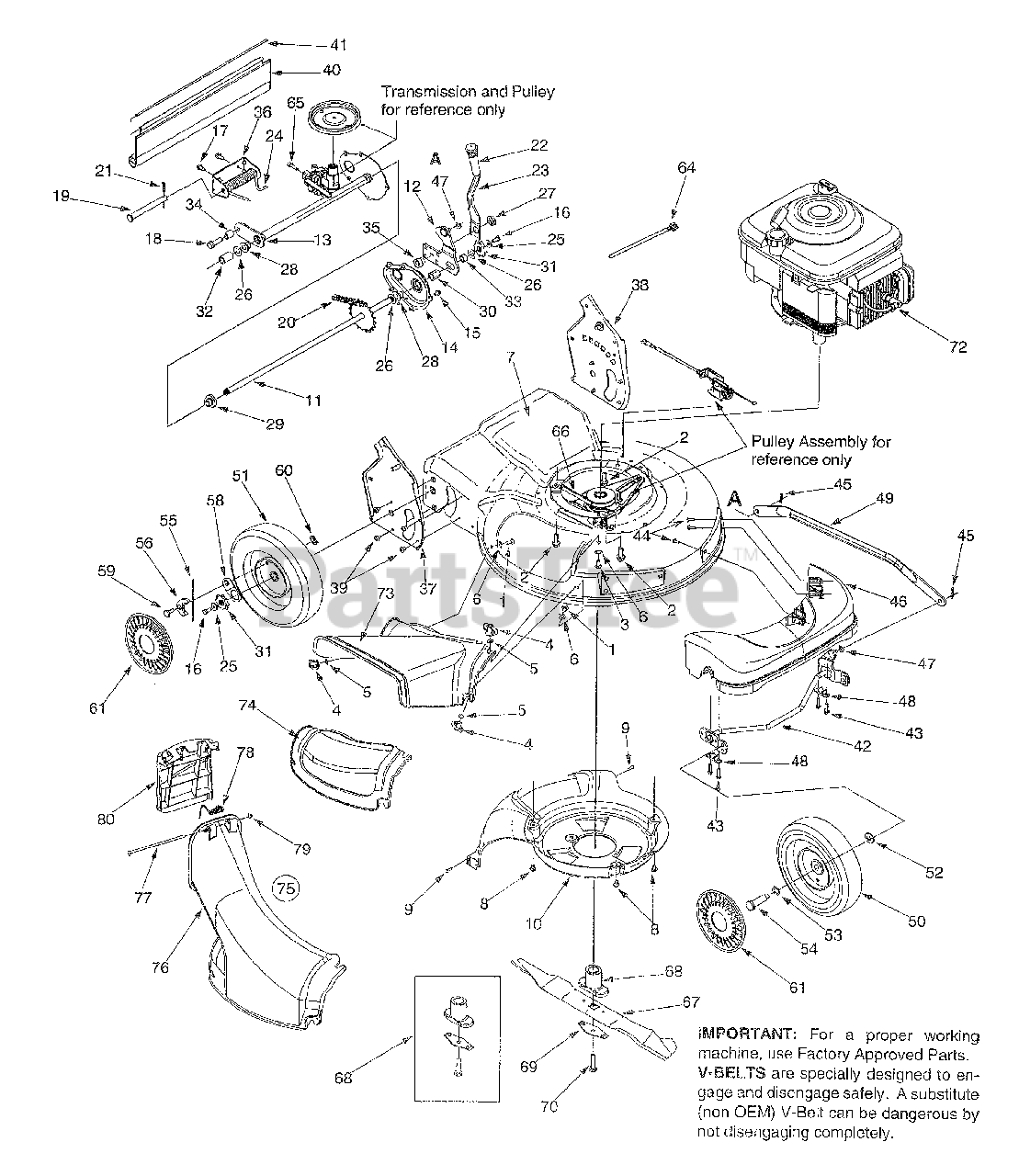

S 621 SS (12A-979U100) - Cub Cadet Walk-Behind Mower (2001) General Assembly Parts Diagram

Walk-Behind Mower

General Assembly Parts Diagram

  • Title

1

Cub Cadet 710-0134

Carriage Screw 1/4-20 x .62

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0654A

TT Screw 3/8-18:1.00

$4.49

$

In Stock, only 4 left!

0

3

Cub Cadet 710-0703

Screw 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

4

Cub Cadet 712-0397

Wing Nut 1/4-20
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 726-0233

Push Nut .25 I.D. x .50 O.D.

$4.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 736-0204

Flat Washer .334 I.D. x .62 x .03

$4.49

$

In Stock, Qty 18

0

7

Cub Cadet 782-0046B

Deck-21"

Variations

Cub Cadet 782-0046B-0498

USE 782-0078B-0716 DECK-21" W - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 782-0046B-0650

USE 782-0078B-0638 DECK-21" W - RED METALLIC (0650)

$

$

Not available

Cub Cadet 782-0046B-0665

USE 782-0078B-0665 DECK-21" W - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 782-0046B-0716

USE 782-0078B-0716 DECK-21" W - CUB YELLOW-99 (0716)

$

$

Not available

$194.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0653

TT Screw 1/4-20 x .375

$4.49

$

In Stock, Qty 15

0

9

Cub Cadet 710-0969

HL Screw 1/2-14 x .750

$4.49

$

In Stock, only 3 left!

0

10

Cub Cadet 731-1828

Baffle
(Superseded to 731-08190A)

$37.99

$

In Stock, Qty 8

0

11

Cub Cadet 638-0012

Rear Axle Ass'y
(Superseded to 938-0012A)

$74.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 682-0531

Pivot Arm Ass'y
(Superseded to 682-0531-0637)

Variations

Cub Cadet 682-0531-0637

Pivot Arm, Rear - POWDER BLACK (0637)

$30.99

$

Usually ships in 3-6 days

0

$30.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 682-7526

Trans. Axle Ass'y
(Superseded to 682-7526-0637)

Variations

Cub Cadet 682-7526-0637

AXLE:CHAIN ASM. - POWDER BLACK (0637)

$131.99

$

Usually ships in 3-6 days

0

$131.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 682-7528

Chain Cover Ass'y
(Superseded to 682-7528-0637)

Variations

Cub Cadet 682-7528-0637

Chain Assembly Cover, Black - POWDER BLACK (0637)

$

$

Not available

$

$

15

Cub Cadet 710-0653

TT Scr. 1/4-20 x .375

$4.49

$

In Stock, Qty 15

0

16

Cub Cadet 710-0751

Cap Screw HH 1/4-20 x .620

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 710-0896

AB Scr. 1/4-14 x .625

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 710-1315

Scr. 3/8 116 x .25

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 711-0835

Clevis Pin .50 Dia. x 4.82
(Superseded to 911-0835)

$12.99

$

In Stock, Qty 6

0

20

Cub Cadet 713-0453

Chain-Endls. #48 .500P x 24
(Superseded to 913-0453)

$12.99

$

In Stock, only 2 left!

0

21

Cub Cadet 714-0474

Cotter Pin .1250.D. x .75

$4.99

$

In Stock, Qty 16

0

22

Cub Cadet 720-0223

Grip

$14.99

$

In Stock, Qty 9

0

23

Cub Cadet 732-0803A

Spring Lever

$15.99

$

In Stock, Qty 19

0

24

Cub Cadet 732-0832

Torsion Spring

$19.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 736-0270

Bell Wash. .285 x .75 x .082

$3.99

$

In Stock, Qty 8

0

26

Cub Cadet 736-0369

Fl. Wash. .508 I.D. 1.000 x.020

$4.49

$

In Stock, Qty 6

0

27

Cub Cadet 738-0529

Nut Shld. .825 Dia. x. 165
(Superseded to 938-0529)

$11.99

$

In Stock, only 3 left!

0

28

Cub Cadet 741-0324

Hx. Flg. Brg. .506 I.D. x .590
(Superseded to 741-0324A)

$7.99

$

In Stock, Qty 8

0

29

Cub Cadet 741-0522

Hx. Flg. Brg. .506 I.D. x .715

$8.99

$

In Stock, only 2 left!

0

30

Cub Cadet 741-0978

Hx. Slv. Brg. .504 I.D. x .830

$4.99

$

In Stock, Qty 6

0

31

Cub Cadet 748-0318

Wheel Rachet
(Superseded to 948-0318)

$10.99

$

In Stock, Qty 5

0

32

Cub Cadet 750-0151

Spacer .550 I.D. x /750 O.D.
(Superseded to 950-0151)

$10.99

$

In Stock, Qty 20+

0

33

Cub Cadet 750-0515

Spacer .5 I.D. x .70 O.D. x 38

$4.49

$

In Stock, Qty 5

0

34

Cub Cadet 750-0807

Spacer .385 x .624 x .700

$6.49

$

Usually ships in 3-6 days

0

35

Cub Cadet 750-1056

Shld. Spacer .385 I.D. X .715
(Superseded to 950-1056)

$7.49

$

In Stock, only 1 left!

0

36

Cub Cadet 782-0568

Brkt. - Ht. Adj. Spring
(Superseded to 782-0568B-0637)

Variations

Cub Cadet 782-0568-0637

BRACKET.LIFT ASSY. - POWDER BLACK (0637)

$

$

Not available

$

$

37

Cub Cadet 682-3052

Handle Brkt. Ass'y. R.H.

Variations

Cub Cadet 682-3052-0498

HANDLE BRACKET (RH) CUB YELO - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-3052-0665

BRACKET HANDLE RH - YARDMAN GREEN (0665)

$

$

Not available

Cub Cadet 682-3052-0716

HANDLE BRACKET (RH) YELO-99 - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-3052-0650

HANDLE BRACKET (RH) RD MTALIC - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-3052-0662

HANDLE BRACKET (RH) OYST GRAY - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-3052-4015

BRACKET HANDLE RH - FIRE RED (4015)

$

$

Not available

$

$

38

Cub Cadet 682-3053

Handle Brkt. Ass'y. L.H.

Variations

Cub Cadet 682-3053-0498

HANDLE BRACKET (LH) - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 682-3053-0650

HANDLE BRACKET (LH) (RED METALLIC) - RED METALLIC (0650)

$

$

Not available

Cub Cadet 682-3053-0716

HANDLE BRACKET (LH) (CUB YELLOW-99) - CUB YELLOW-99 (0716)

$

$

Not available

Cub Cadet 682-3053-0638

HANDLE BRACKET (LH) (MTD RED) - MTD/TROY-BILT RED (0638)

$

$

Not available

Cub Cadet 682-3053-0662

HANDLE BRACKET (LH) - OYSTER GRAY (0662)

$

$

Not available

Cub Cadet 682-3053-0689

HANDLE BRACKET (LH) (POLO GREEN) - POLO GREEN (0689)

$

$

Not available

Cub Cadet 682-3053-4015

HANDLE BRACKET (LH) (FIRE RED) - FIRE RED (4015)

$

$

Not available

$

$

39

Cub Cadet 710-1348

Scr. AB 1/4-14 x .500

$6.99

$

In Stock, only 3 left!

0

40

Cub Cadet 731-1901

Trail Shield
(Superseded to 731-1901A)

$40.99

$

In Stock, only 3 left!

0

41

Cub Cadet 732-0842

Trail Shield Wire

$6.49

$

In Stock, Qty 10

0

42

Cub Cadet 611-0064

Front Axle Assembly
(Superseded to 611-0064-0637)

Variations

Cub Cadet 611-0064-0498

Front Axle Assembly, Black - OLD CUB YELLOW (0498)

$97.99

$

Usually ships in 3-6 days

0

Cub Cadet 611-0064-0637

Front Axle Assembly, Black - POWDER BLACK (0637)

$97.99

$

Usually ships in 3-6 days

0

Cub Cadet 611-0064-0665

Front Axle Assembly, Black - YARDMAN GREEN (0665)

$97.99

$

Usually ships in 3-6 days

0

$97.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 710-1241

Hx Scr. Wash Hd. Hi.-Lo.

$6.99

$

In Stock, Qty 20+

0

44

Cub Cadet 710-1242

Scr. Torx, Truss Hi.-Lo.

$4.99

$

In Stock, Qty 19

0

45

Cub Cadet 714-0104

Cotter Pin .072 x 1.12 Lg.

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 731-1836

Front Axle Cover, Black

$135.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 736-0286

Bowed Washer
(Superseded to 936-0286)

$6.99

$

In Stock, only 2 left!

0

48

Cub Cadet 741-0492A

Bush. Block .505 Dia. x .62

$6.49

$

In Stock, Qty 12

0

49

Cub Cadet 782-0565

Control Arm
(Superseded to 782-0565-0637)

Variations

Cub Cadet 782-0565-0498

USE 782-0565-0637 ARM-CONTROL - OLD CUB YELLOW (0498)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 782-0565-0637

ARM-CONTROL SGL LV - POWDER BLACK (0637)

$34.99

$

Usually ships in 3-6 days

0

Cub Cadet 782-0565-0665

USE 782-0565-0637 ARM-CONTROL - YARDMAN GREEN (0665)

$34.99

$

Usually ships in 3-6 days

0

$34.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 734-2008

Wheel 8 x 2
(Superseded to 734-2008A)

$58.99

$

In Stock, only 1 left!

0

51

Cub Cadet 734-2010

Wheel 9 x 2
(Superseded to 734-2010B)

$51.99

$

In Stock, Qty 20+

0

52

Cub Cadet 736-0105

Spring Washer

$4.49

$

In Stock, Qty 20+

0

53

Cub Cadet 736-0504

Wave Wash .510 x .750 x .017
(Superseded to 936-0504)

$4.49

$

In Stock, Qty 12

0

54

Cub Cadet 738-0102

Shldr Scr .498 x 1.445 x 3/8-16

$9.99

$

In Stock, Qty 11

0

55

Cub Cadet 10622B

Spring, Ratchet, Plastic

$5.49

$

In Stock, Qty 20+

0

56

Cub Cadet 748-0381

Pawl: RH.

$11.99

$

In Stock, Qty 9

0

Cub Cadet 748-0188B

Pawl: LH.
(Superseded to 948-0188B)

Note: Not illustrated

$11.99

$

In Stock, Qty 14

0

58

Cub Cadet 16855

Ratchet Pawl Plate

$6.49

$

In Stock, Qty 20+

0

59

Cub Cadet 738-0137A

Shoulder Scr. .340 x .285

$10.99

$

In Stock, Qty 18

0

60

Cub Cadet 712-0414

Top Lock Tab Weld Nut 1/4-20

$4.49

$

In Stock, Qty 14

0

61

Cub Cadet 731-0982A

Hubcap: Rad. Spoke Beige
(Superseded to 731-0982C)

$11.99

$

In Stock, Qty 20+

0

64

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, only 3 left!

0

65

Cub Cadet 710-0604A

Hex Screw 5/16-18

$4.49

$

In Stock, Qty 20+

0

66

Cub Cadet 754-0460

V-Belt
(Superseded to 954-0460)

$19.99

$

In Stock, Qty 12

0

67

Cub Cadet 742-0741

21" Mulching Blade
(Superseded to 942-0741A)

$29.99

$

In Stock, Qty 20+

0

68

Cub Cadet 753-0609

Blade Adapter Kit

$40.99

$

In Stock, Qty 15

0

69

Cub Cadet 736-0524A

Blade Bell Suport
(Superseded to 736-0524B-1)

$5.99

$

In Stock, Qty 20+

0

70

Cub Cadet 710-1257

Hex Bolt 3/8-24 x 2.5" Lg.

$7.99

$

In Stock, Qty 20+

0

72

Cub Cadet 735-0639

Spark Plug Insulator

$

$

Not available

73

Cub Cadet 731-1832

Side Discharge Chute

$

$

Not available

74

Cub Cadet 731-1833

Mulch Cover
(Superseded to 931-1833A)

$44.99

$

In Stock, Qty 7

0

75

Cub Cadet 631-0066

Rear Chute Ass'y w/Door
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 731-1713B

Discharge Chute
(Superseded to 931-0066)

$115.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 747-0965

Pivot Rod

$3.49

$

Usually ships in 3-6 days

0

78

Cub Cadet 732-0819

Torsion Spring

$9.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 726-0111

Push Cap

$6.49

$

Usually ships in 3-6 days

0

80

Cub Cadet 731-1874

Chute Door
(Superseded to 731-1874A)

$17.99

$

Usually ships in 3-6 days

0

?81

Cub Cadet 710-1268

Special Screw

Note: (Used with # 82); Not illustrated

$4.49

$

In Stock, only 2 left!

0

?82

Cub Cadet 751B224437

Muffler Guard

Note: Not illustrated

$

$

Not available

?83

Cub Cadet 751B281440

Engine Shroud

Note: Not illustrated

$

$

Not available

?84

Cub Cadet 710-1256

Pan Screw

Note: Not illustrated

$5.99

$

In Stock, Qty 5

0
