S 621 SS (12A-979U100) - Cub Cadet Walk-Behind Mower Engine (2001) Carburetor & Gasket Parts Diagram

Walk-Behind Mower Engine

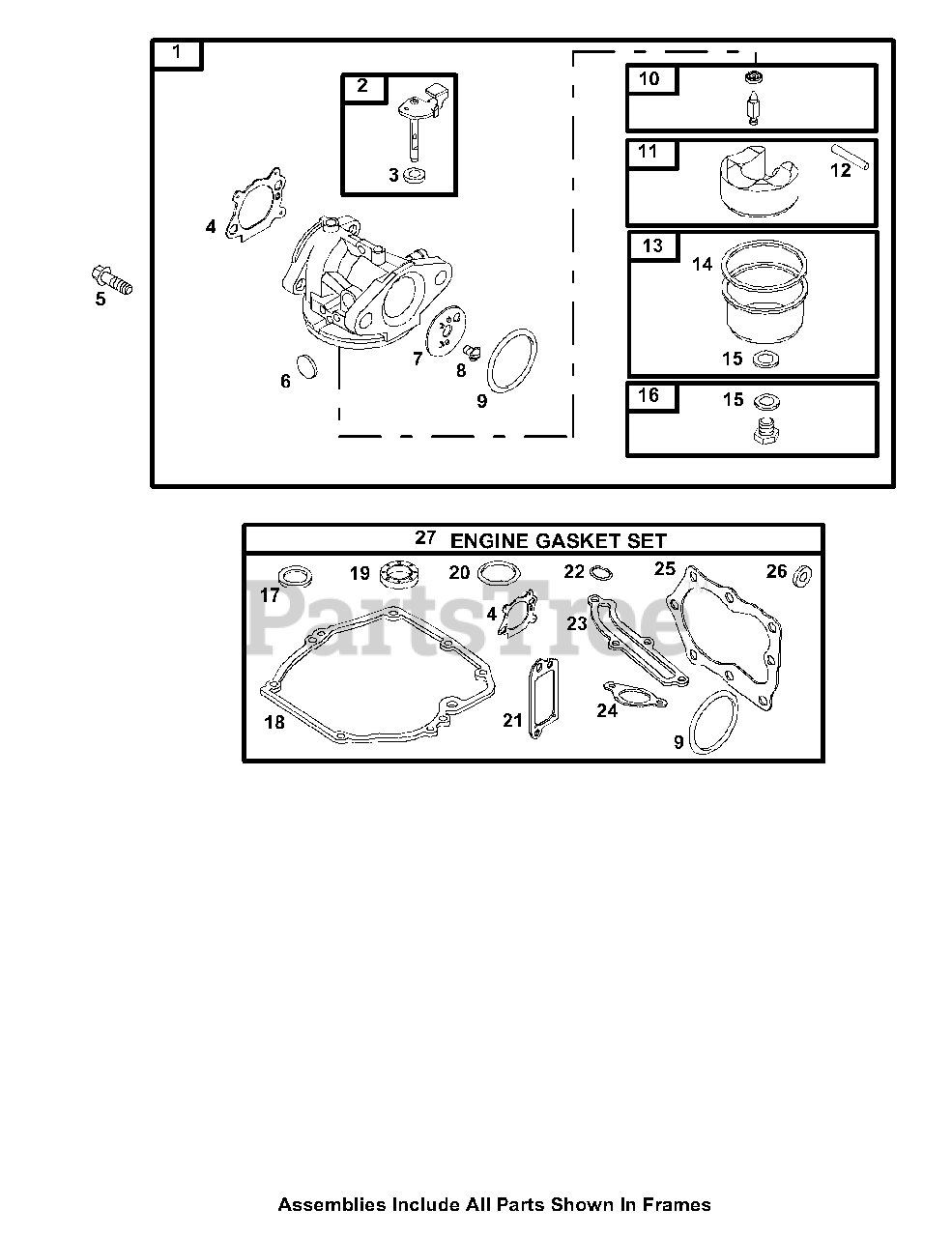

Carburetor & Gasket Parts Diagram

  • Title

1

Cub Cadet BS-498170

Carburetor
(Superseded to BS-799868)

$63.99

$

Usually ships in 2-12 days

0

2

Cub Cadet BS-493267

Throttle Shaft

$16.99

$

In Stock, only 1 left!

0

3

Cub Cadet BS-691321

Choke/Throttle Shaft Seal

$4.99

$

In Stock, only 2 left!

0

4

Cub Cadet BS-272653

Air Cleaner Gasket
(Superseded to BS-795629)

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet BS-692524

Screw (Carburetor)

$

$

Not available

6

Cub Cadet BS-694468

Welch Plug

$4.49

$

In Stock, Qty 7

0

7

Cub Cadet BS-691203

Throttle Valve

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet BS-691636

Screw (Throttle Valve)

$3.99

$

In Stock, only 2 left!

0

9

Cub Cadet BS-270344

O-Ring Seal (Intake Manifold)
(Superseded to BS-270344S)

$3.49

$

In Stock, Qty 20+

0

10

Cub Cadet BS-398188

Needle/Seat Kit

$6.49

$

In Stock, Qty 20+

0

11

Cub Cadet BS-398187

Carburetor Float

$9.99

$

In Stock, Qty 8

0

12

Cub Cadet BS-691242

Float Hinge Pin
(Superseded to BS-797622)

$3.99

$

In Stock, only 1 left!

0

13

Cub Cadet BS-493640

Float Bowl
(Superseded to BS-796611)

$6.49

$

In Stock, Qty 16

0

14

Cub Cadet BS-693981

Float Bowl Gasket

$3.99

$

In Stock, Qty 20+

0

15

Cub Cadet BS-271716

Sealing Washer

$6.49

$

In Stock, Qty 20+

0

16

Cub Cadet BS-494870

Main Jet

$14.99

$

Usually ships in 2-12 days

0

17

Cub Cadet BS-299819

Oil Seal (Magneto Side)
(Superseded to BS-299819S)

$5.49

$

In Stock, Qty 20+

0

18

Cub Cadet BS-692232

Crankcase Gasket

$5.99

$

In Stock, Qty 20+

0

19

Cub Cadet BS-399781

Oil Seal
(Superseded to BS-399781S)

$7.99

$

In Stock, Qty 17

0

20

Cub Cadet BS-691031

O-Ring Seal (Dipstick Tube)

$5.49

$

In Stock, Qty 11

0

21

Cub Cadet BS-272481

Breather Gasket
(Superseded to BS-699833)

$5.49

$

In Stock, Qty 11

0

22

Cub Cadet BS-692296

O-Ring Seal (Dipstick Tube)

$4.99

$

In Stock, Qty 8

0

23

Cub Cadet BS-691879

Breather Passage Gasket

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet BS-272199

Intake Gasket
(Superseded to BS-272199S)

$4.99

$

In Stock, Qty 11

0

25

Cub Cadet BS-692249

Cylinder Head Gasket

$8.49

$

In Stock, only 4 left!

0

26

Cub Cadet BS-493823

Spacer

Note: (Includes 2)

$6.49

$

In Stock, only 2 left!

0

27

Cub Cadet BS-497316

Engine Gasket Set
(Superseded to BS-590508)

$37.99

$

In Stock, Qty 12

0
