S 65Z (2691384-00) - Ferris S65Z Series 42" Zero-Turn Mower, 25hp Briggs & Stratton Transmission Group Parts Diagram

S65Z Series 42" Zero-Turn Mower, 25hp Briggs & Stratton

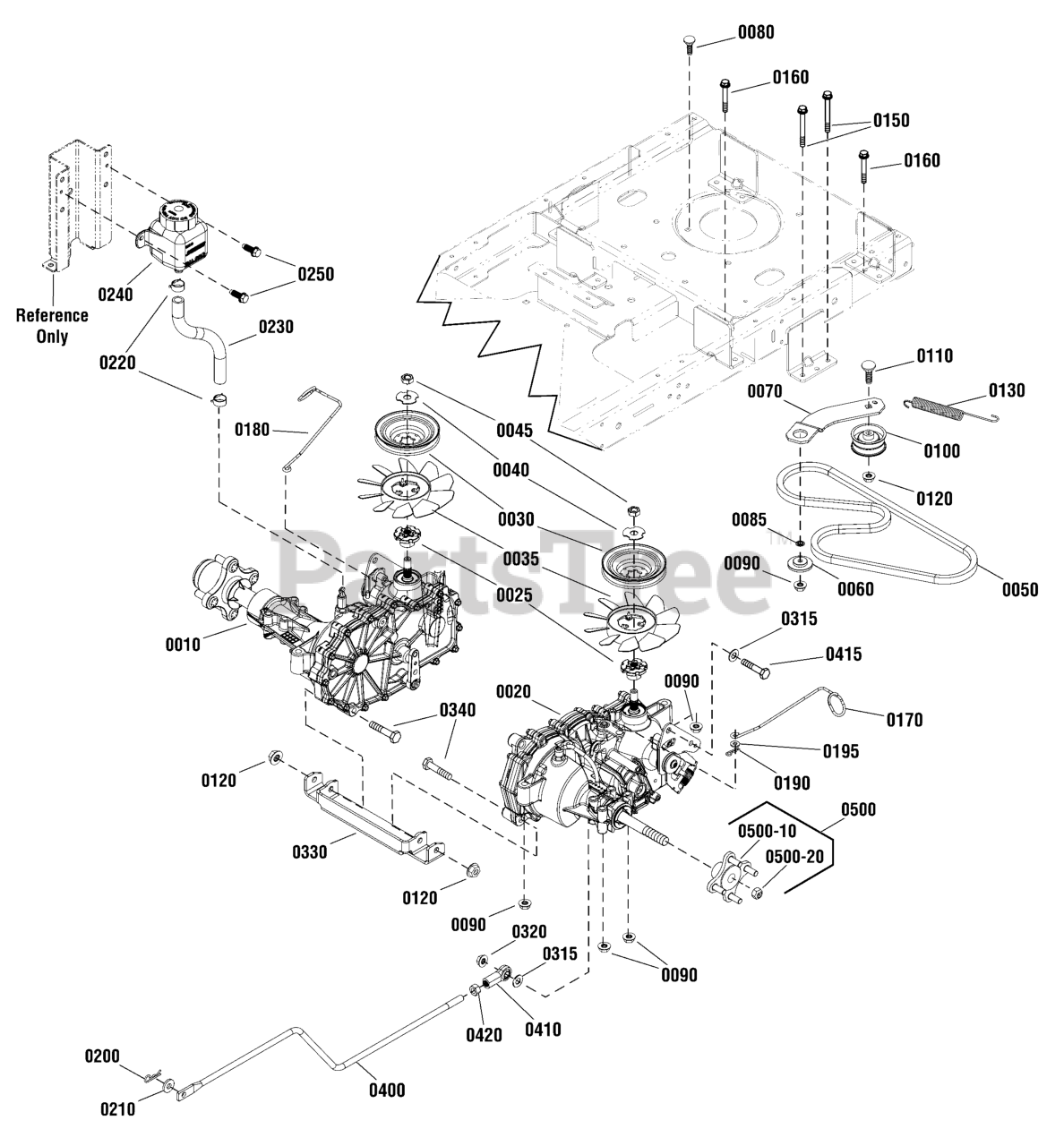

Transmission Group Parts Diagram

  • Title

0010

Ferris 84001648

*TRANSMISSION, RH, Hydro Gear

$

$

Currently unavailable

0020

Ferris 84004710

*TRANSMISSION, LH, Hydro Gear

$

$

Currently unavailable

0025

Ferris 1759450YP

SPACER

$12.99

$

Usually ships in 2-12 days

0

0030

Ferris 1759447YP

PULLEY, Transmission

$26.99

$

In Stock, only 1 left!

0

0035

Ferris 175944YP

FAN, Input

$

$

Currently unavailable

0040

Ferris 5102914YP

WASHER, ZT5400, SLOTT

$3.99

$

Usually ships in 2-12 days

0

0045

Ferris 5102916YP

NUT, ZT5400

$3.49

$

In Stock, only 2 left!

0

0050

Ferris 1758100YP

BELT-TRANSMISSION

$42.99

$

In Stock, only 1 left!

0

0060

Ferris 1727935SM

SPACER-PIVOT 0.330ID

$5.99

$

In Stock, only 4 left!

0

0070

Ferris 1758044AYP

ARM, Idler

$20.99

$

In Stock, only 1 left!

0

0080

Ferris 703800

BOLT, CRRG, 5/16-18X1

$3.99

$

In Stock, Qty 16

0

0085

Ferris 703297

RETAINER, GR5, 5/16

$3.99

$

In Stock, Qty 20+

0

0090

Ferris 703115

NUT

$3.49

$

In Stock, only 4 left!

0

0100

Ferris 1668477SM

PULLEY, Idler, 2.25" OD, .378 ID

$23.99

$

Usually ships in 2-12 days

0

0110

Ferris 703879

BOLT, SQ, 3/8-16X1.75

$3.99

$

In Stock, Qty 11

0

0120

Ferris 5025394SM

NUT, 3/8-16 HEX NYLOCK

$4.49

$

In Stock, Qty 13

0

0130

Ferris 1758045YP

SPRING-EXTENSION

$8.49

$

In Stock, only 1 left!

0

0150

Ferris 707943

SCREW

$5.99

$

Usually ships in 2-12 days

0

0160

Ferris 707944

SCREW, Washer Head, 5/16-18 X 2 1/4

$4.99

$

Usually ships in 2-12 days

0

0170

Ferris 1759245YP

ROD, Release, LH

$14.99

$

Usually ships in 2-12 days

0

0180

Ferris 1759246YP

ROD, Release, RH

$14.99

$

Usually ships in 2-12 days

0

0190

Ferris 703430

PIN, 13X1.19

$3.49

$

In Stock, Qty 8

0

0195

Ferris 703332

WASHER

$4.49

$

In Stock, Qty 10

0

0200

Ferris 703300

PIN, 3/32 X 1.6

$3.99

$

In Stock, Qty 20+

0

0210

Ferris 704128

WASHER

$4.99

$

In Stock, only 2 left!

0

0220

Ferris 5025474SM

CLAMP - HOSE

$3.49

$

Usually ships in 2-12 days

0

0230

Ferris 5050857X9SM

HOSE, 1/2" PUSH

$8.99

$

Usually ships in 2-12 days

0

0240

Ferris 5100473SM

RESERVOIR

$40.99

$

Usually ships in 2-12 days

0

0250

Ferris 703054

SCREW, 1/4-20X0.625

$4.49

$

Usually ships in 2-12 days

0

0315

Ferris 703183

WASHER, 7/16 ID X.065

$3.99

$

Usually ships in 2-12 days

0

0320

Ferris 1930650SM

NUT-HEX FLANGE 7/16-1

$5.49

$

In Stock, only 1 left!

0

0330

Ferris 1759172AYP

SUPPORT

$64.99

$

Usually ships in 2-12 days

0

0340

Ferris 5025013X20SM

BOLT, 3/8-16 X 2-1/2"
(Superseded to 703873)

$4.49

$

In Stock, Qty 5

0

0400

Ferris 1757966YP

ROD, Control

$37.99

$

Usually ships in 2-12 days

0

0410

Ferris 1759799YP

ROD, 7/16-20 RH, Female

$22.99

$

Usually ships in 2-12 days

0

0415

Ferris 703579

HHCS, 7/16-14X1.25

$4.49

$

In Stock, Qty 20+

0

0420

Ferris 7090460SM

NUT, 7/16F, GR5, Hex

$2.49

$

Usually ships in 2-12 days

0

0500

Ferris 7600158YP

KIT, Hub Replacement

$122.99

$

Usually ships in 2-12 days

0

0500-10

HUB, Transmission

$

$

Not available

0500-20

NUT, EZT Transmission

$

$

Not available
