S 75X (5900918) - Snapper Pro S75X Series 52" Stand-On Mower, 22hp Kawasaki Fuel Tank Mount & Supply Parts Diagram

S75X Series 52" Stand-On Mower, 22hp Kawasaki

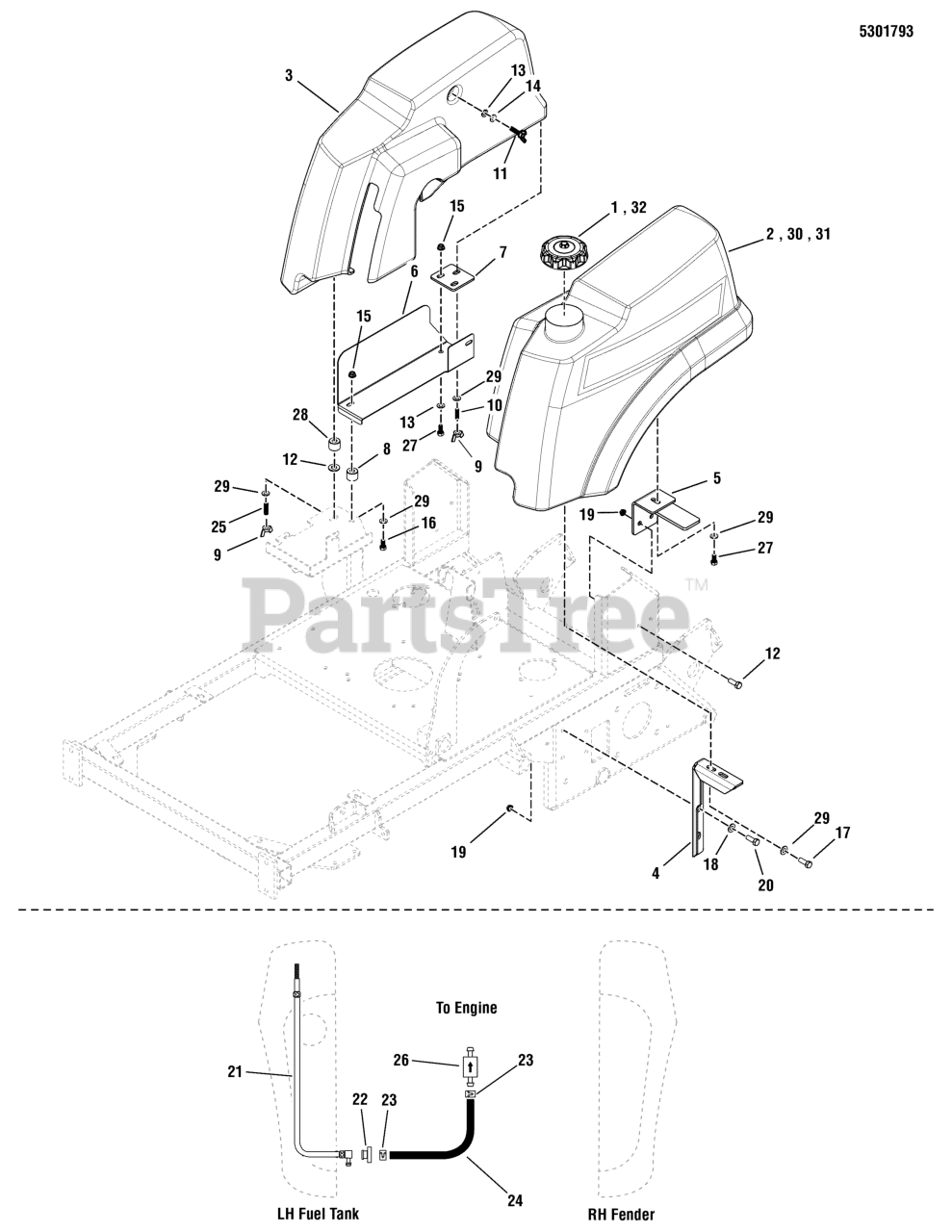

Fuel Tank Mount & Supply Parts Diagram

  • Title

1

Snapper Pro 5101651

CAP, GASOLINE, VENTED
(Superseded to 5101651SM)

Note: (S/N: 2015612131 & Below)

$30.99

$

In Stock, Qty 5

0

2

Snapper Pro 5102025

FUEL TANK, S75X, SNP PRO 48/52

Note: (S/N: 2015602827 & Below)

$331.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5102026

FENDER, S75X, SNP PRO, 48/52

$248.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5405475D

WELD, MOUNT, FUEL TANK, FRONT - RED

$32.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5405851D

WELD, REAR TANK MOUNT, LH - RED

$53.99

$

Usually ships in 2-12 days

0

6

Snapper Pro 5404913D

GUARD, OIL FILTER - RESERVOIR, S75X - RED

$

$

Currently unavailable

7

Snapper Pro 5405679D

PLATE, RIGHT REAR TANK MOUNT - RED

$

$

Currently unavailable

8

Snapper Pro 5101245

SPACER, .38 X .75 X 1.25, YZ
(Superseded to 5101245YP)

$7.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025277

NUT, 5/16-18 WING NYLON LOCK

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025530

SOC SET SCREW, 5/16-18 X 1-1/2 SS

$2.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025525X10

WING, SCREW, 5/16-18 X 1-1/4, CZ

$5.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025498

5/16 PUSH-ON NUT RETAINER, STL, CZ
(Superseded to 5025498YP)

$2.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

14

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

16

Snapper Pro 5025011X16

BOLT, 5/16-18 X 2 GD5 YZ
(Superseded to 5025011X16YP)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

18

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

19

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 10

0

20

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

21

Snapper Pro 5101929

PICKUP TUBE ASM, FUEL TANK, 18.38" (SV)

$

$

Currently unavailable

22

Snapper Pro 1726400

BUSHING-FUEL TANK RED RUBBER
(Superseded to 1726400FS)

$11.99

$

In Stock, Qty 5

0

23

Snapper Pro 93807

CLAMP, HOSE, EXTERNAL, 1/2 - RED
(Superseded to 691038)

$3.99

$

In Stock, only 3 left!

0

24

Snapper Pro 5050831X24

HOSE, 1/4" FUEL, 24.00"
(Superseded to 5050831X24YP)

$8.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5025541

SCREW, SOC SET, 5/16-18 X 2-1/2, SS

$

$

Currently unavailable

26

Snapper Pro 5021178X3

FUEL FILTER (SV)
(Superseded to 5021178X3FS)

$12.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

28

Snapper Pro 5042658

SPACER, .39 X .75 X 1.06
(Superseded to 5042658SM)

$7.49

$

In Stock, Qty 6

0

29

Snapper Pro 5025292

WASHER, 5/16 GD.9 FLAT
(Superseded to 5025292SM)

$3.99

$

In Stock, only 4 left!

0

30

Snapper Pro 5102987

TANK, FUEL, SNP PRO, EVOLUTION 48/52

Note: (S/N: 2015602828 - 2015612131)

$

$

Currently unavailable

31

Snapper Pro 5103171

TANK, FUEL, SNP PRO EVOLUTION, 48/52

Note: (S/N: 2015612132 & Above)

$410.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5103005

FUEL CAP, 3-1/2", MANAGED VENT OUT, 12"
(Superseded to 84005958)

Note: (S/N: 2015612132 & Above)

$40.99

$

Usually ships in 2-12 days

0
