S 75X (5900918) - Snapper Pro S75X Series 52" Stand-On Mower, 22hp Kawasaki Hydraulic Mounts & Guards Group Parts Diagram

S75X Series 52" Stand-On Mower, 22hp Kawasaki

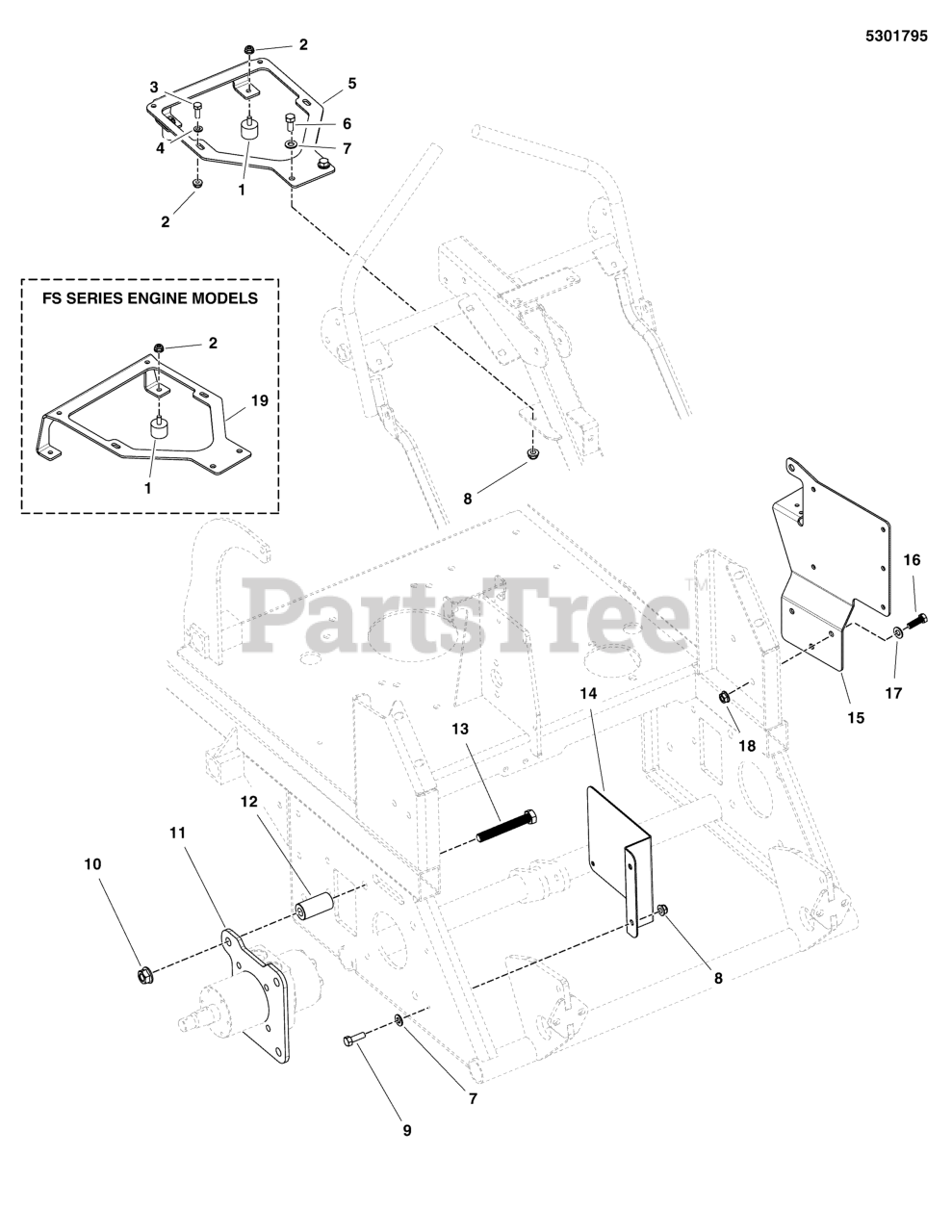

Hydraulic Mounts & Guards Group Parts Diagram

  • Title

1

Snapper Pro 5022673

BUMPER, RUBBER 1/4-20
(Superseded to 5022673SM)

$18.99

$

Usually ships in 2-12 days

0

2

Snapper Pro 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

Usually ships in 2-12 days

0

3

HHCS, 1/4-20 X 0.625, GR5, ZINC/CLEAR

$

$

Not available

4

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

5

Snapper Pro 5405823D

PLATE, COOLER MOUNT BRACKET

Note: (FX Series Engine Models)

$

$

Currently unavailable

6

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

7

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

8

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 8

0

11

Snapper Pro 5403409

PLATE, SPACER

$30.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5043607

SPACER, .50 X 1.00 X 2.00

$

$

Currently unavailable

13

Snapper Pro 5025017X28

BOLT, 1/2-13 X 3-1/2, HEX HD, GD5, CZ (SV)
(Superseded to 5025017X28SM)

$5.99

$

In Stock, only 1 left!

0

14

Snapper Pro 5404775D

PLATE, HEAT SHIELD, WHEEL MOTOR

$

$

Currently unavailable

15

Snapper Pro 5405847D

PLATE, MOUNT, HYD, S75X - RED

$

$

Currently unavailable

16

Snapper Pro 5025013X8

BOLT, 3/8-16 X 1" GD5 CZ
(Superseded to 5025013X8SM)

$3.99

$

In Stock, only 4 left!

0

17

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 10

0

19

Snapper Pro 5406364D

PLATE, COOLER MOUNT BRACKET

Note: (FS Series Engine Models)

$

$

Currently unavailable
