S 75X (5900918) - Snapper Pro S75X Series 52" Stand-On Mower, 22hp Kawasaki Main Frame Group Parts Diagram

S75X Series 52" Stand-On Mower, 22hp Kawasaki

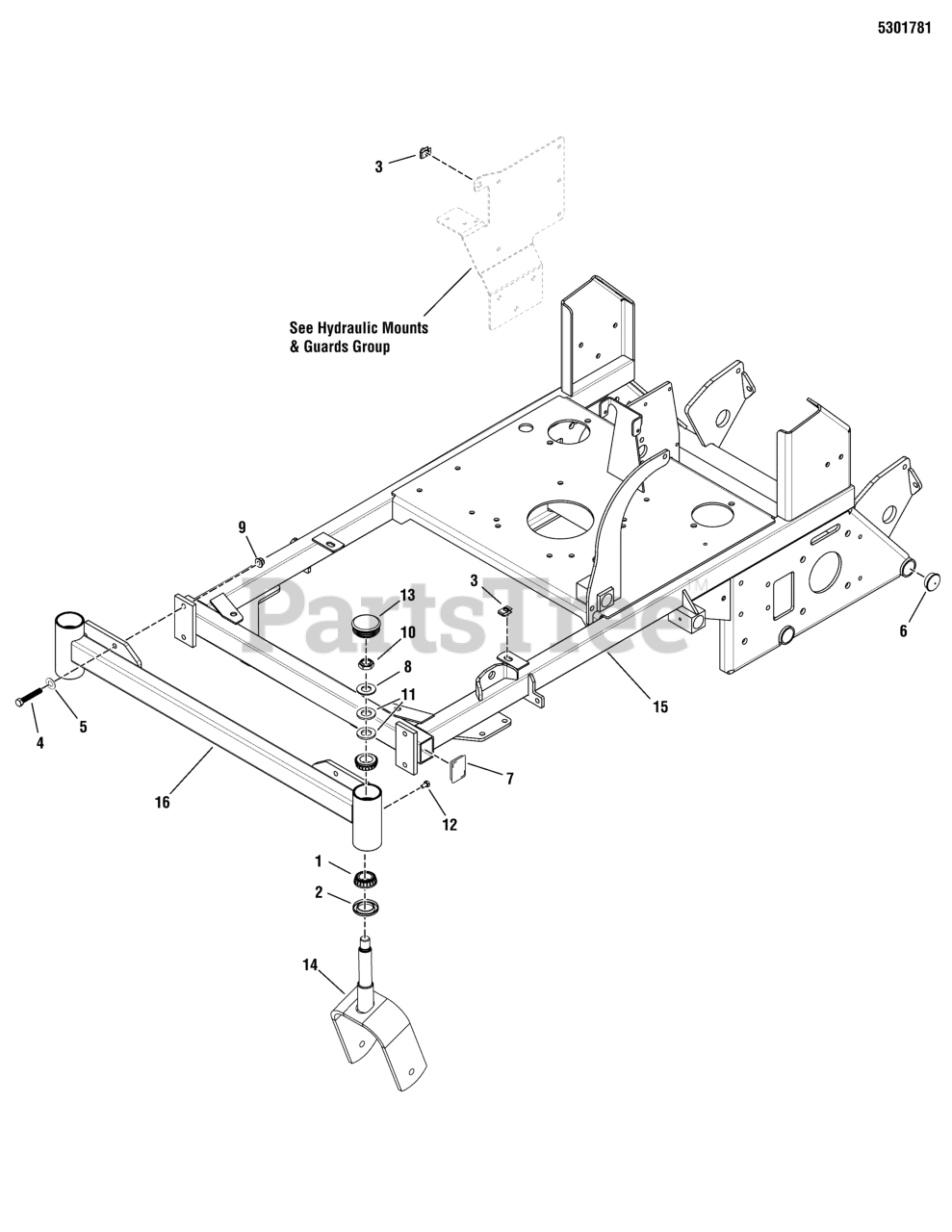

Main Frame Group Parts Diagram

  • Title

1

Snapper Pro 5020884

BEARING, TAPERED ROLLER, 1
(Superseded to 5020884SM)

$25.99

$

In Stock, only 1 left!

0

2

Snapper Pro 5021072

SEAL, GREASE
(Superseded to 5021072SM)

$7.49

$

In Stock, only 2 left!

0

3

Snapper Pro 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, Qty 10

0

4

Snapper Pro 5025013X12

BOLT, 3/8-16 X 1-1/2" GD5 CZ
(Superseded to 5025013X12SM)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

6

Snapper Pro 5023484

PLUG, PANEL, 1.25 - BLACK
(Superseded to 5023484SM)

$3.99

$

In Stock, only 1 left!

0

7

Snapper Pro 5022098

CAP, 1-1/2 X 2 X 11GA, PLASTIC
(Superseded to 5022098SM)

$3.99

$

In Stock, Qty 5

0

8

Snapper Pro 5025160

WASHER, 3/4 SAE
(Superseded to 5025160SM)

$3.99

$

Usually ships in 2-12 days

0

9

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 10

0

10

Snapper Pro 5025448

NUT, 3/4-16, HEX JAM NYLON LOCK
(Superseded to 5025448SM)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025449

WASHER, BELLEVILLE - 1.500 X .755
(Superseded to 5025449SM)

$4.99

$

Usually ships in 2-12 days

0

12

Snapper Pro 5025457

BOLT, 1/4-28 X 1/2, GD5 YZ
(Superseded to 5025457SM)

$3.99

$

Usually ships in 2-12 days

0

13

Snapper Pro 5109845

CAP, GREASE, LOW PROFILE
(Superseded to 5109845FS)

$7.99

$

In Stock, only 4 left!

0

14

Snapper Pro 5404838D

WELD, CASTER YOKE - RED
(Superseded to 5404838DYP)

$165.99

$

Usually ships in 2-12 days

0

15

Snapper Pro 5405262D

WELD, MAIN FRAME, S75X - RED

$

$

Currently unavailable

16

Snapper Pro 5405363D

WELD, FRONT END PIVOT, S75X - RED

$343.99

$

Usually ships in 2-12 days

0
