S 75X (5900918) - Snapper Pro S75X Series 52" Stand-On Mower, 22hp Kawasaki Main Frame & Operator Compartment Group Parts Diagram

S75X Series 52" Stand-On Mower, 22hp Kawasaki

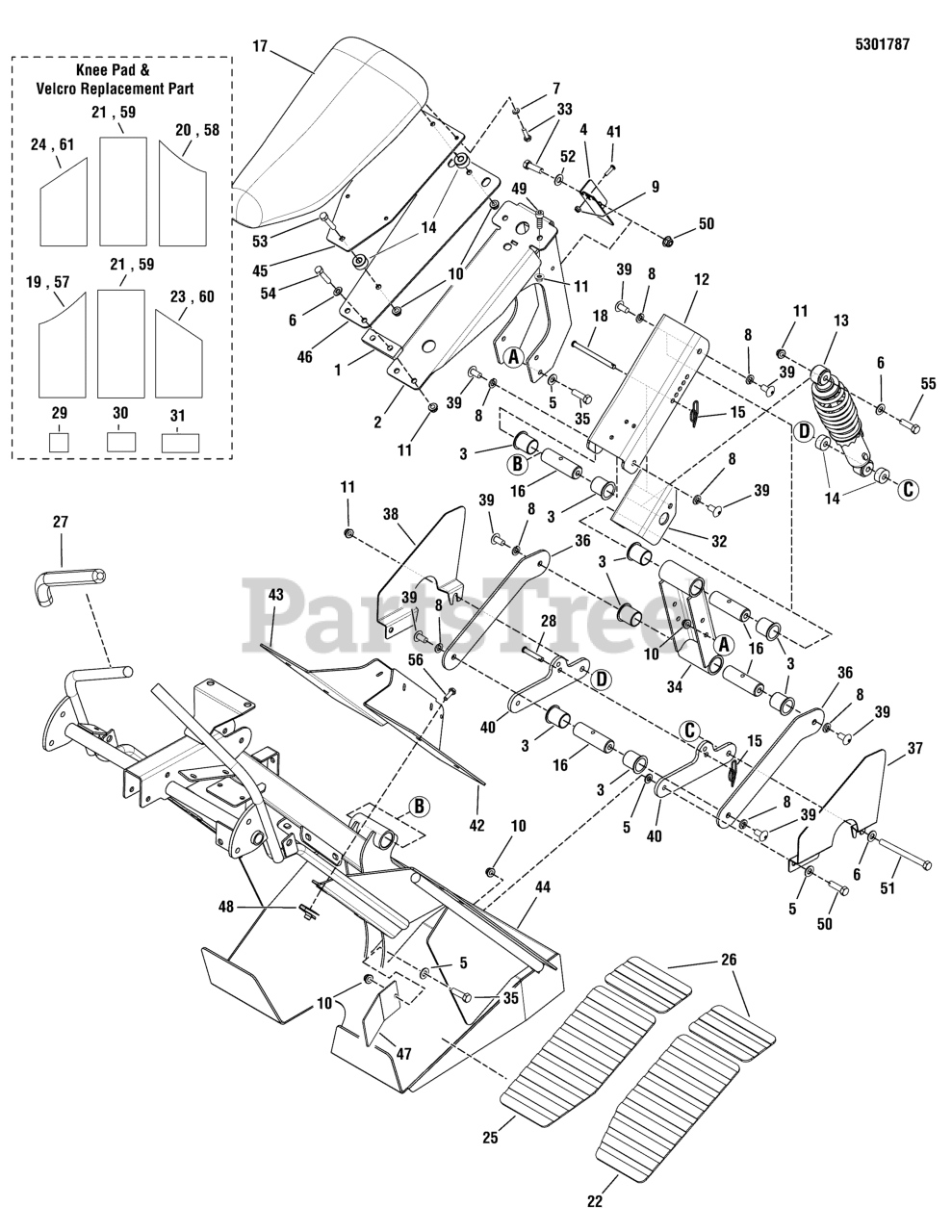

Main Frame & Operator Compartment Group Parts Diagram

  • Title

1

Snapper Pro 5405620D

SPACER, .38 X 1.00 X 3.25 - RED

$

$

Currently unavailable

2

Snapper Pro 5405623D

WELD, SEAT MAIN, SNP PRO - RED

$

$

Currently unavailable

3

Snapper Pro 5023343

BUSHING, 1.00 X 1.13 X 1.38, PLASTIC
(Superseded to 5023343SM)

$6.49

$

In Stock, only 3 left!

0

4

Snapper Pro 5405622D

PLATE, SWITCH MOUNT - RED

$

$

Currently unavailable

5

Snapper Pro 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

6

Snapper Pro 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

7

Snapper Pro 5025169

WASHER, 1/4 LOCK
(Superseded to 5025169FS)

$3.99

$

Usually ships in 2-12 days

0

8

Snapper Pro 5025171

WASHER, 3/8 SPLIT LOCK
(Superseded to 5025171SM)

$3.99

$

In Stock, only 3 left!

0

9

Snapper Pro 5025271

NUT, #10-24 HEX NYLON LOCK
(Superseded to 5025271FS)

$3.99

$

Usually ships in 2-12 days

0

10

Snapper Pro 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

11

Snapper Pro 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 10

0

12

Snapper Pro 5405614D

PLATE, SEAT MOUNT, TOP - RED

$

$

Currently unavailable

13

Snapper Pro 5023383

SHOCK,# 7417-104, FRONT, IS4500
(Superseded to 5023383FS)

$195.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5046860

SPACER, .39 X 1.00 X .50
(Superseded to 5046860SM)

$6.49

$

In Stock, only 1 left!

0

15

Snapper Pro 5025540

PIN, SURE LOCK COTTER, .09 X .75, YZ
(Superseded to 5025540FS)

$2.99

$

Usually ships in 2-12 days

0

16

Snapper Pro 5101635

SPACER, 1.00 X 3.25 THRD BOTH ENDS

$26.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5101648

SEAT, EVOLUTION

$420.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5025539X32

PIN, CLEVIS, 5/16 X 4.00, YZ

$

$

Currently unavailable

19

Snapper Pro 5101802

KNEE PAD, INNER RH, EVOLUTION 36"/48"

Note: (S/N: 2014004709 & Below)

$65.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5101803

KNEE PAD, INNER LH, EVOLUTION 36"/48"

Note: (S/N: 2014004709 & Below)

$74.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101806

KNEE PAD, CENTER, EVOLUTION 36"/48"

Note: (S/N: 2014004709 & Below)

$108.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5101807

SAFETY WALK, EVOLUTION 36"

$

$

Currently unavailable

23

Snapper Pro 5101810

KNEE PAD, OUTER RH, EVOLUTION 48/52

Note: (S/N: 2014004709 & Below)

$85.99

$

Usually ships in 2-12 days

0

24

Snapper Pro 5101811

KNEE PAD, OUTER LH, EVOLUTION 48/52

Note: (S/N: 2014004709 & Below)

$85.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5101828

SAFETY WALK, 6.00 X 11.25

$10.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5101829

SAFETY WALK, 3.5 X 6.00

$4.49

$

Usually ships in 2-12 days

0

27

Snapper Pro 5101830

FOAM, GRIP, 3/4" ID X 12" LG X .187 BLK

$6.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025213X22

PIN, CLEVIS, 5/16 X 2-3/4, PLATED

$

$

Currently unavailable

29

Snapper Pro 5101913

VELCRO, 2" X 2", HOOK MATERIAL

Note: (S/N: 2014004709 & Below)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper Pro 5101915

VELCRO, 2" X 3", HOOK MATERIAL

Note: (S/N: 2014004709 & Below)

$3.99

$

Usually ships in 2-12 days

0

31

Snapper Pro 5101916

VELCRO, 2" X 4", HOOK MATERIAL

Note: (S/N: 2014004709 & Below)

$6.99

$

Usually ships in 2-12 days

0

32

Snapper Pro 5405624D

WELD, MOUNT, SHOCK, SEAT - RED

$

$

Currently unavailable

33

Snapper Pro 5025010X8

BOLT, 1/4-20 X 1" GD5 CZ
(Superseded to 5025010X8SM)

$3.99

$

Usually ships in 2-12 days

0

34

Snapper Pro 5405613D

WELD, MOUNT, SEAT ADJUSTABLE - RED

$

$

Currently unavailable

35

Snapper Pro 5025011X8

BOLT, 5/16-18 X 1 GD5 YZ
(Superseded to 5025011X8FS)

$3.49

$

Usually ships in 2-12 days

0

36

Snapper Pro 5405611D

PIVOT, SUSPENSION SEAT, SNP PRO - RED

$

$

Currently unavailable

37

Snapper Pro 5405893D

GUARD, FOOT, RH, S75X - RED

$

$

Currently unavailable

38

Snapper Pro 5405894D

GUARD, FOOT, LH, S75X - RED

$

$

Currently unavailable

39

Snapper Pro 5025075X6

BOLT, 3/8-16 X 3/4,ALLEN BUTTON
(Superseded to 5025075X6SM)

$2.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5405625D

PIVOT, ADJUSTMENT, SEAT - RED

$

$

Currently unavailable

41

Snapper Pro 5025179X6

SCREW, #10-24 X 3/4 ROUND PHILLIPS
(Superseded to 5025179X6SM)

$3.99

$

Usually ships in 2-12 days

0

42

Snapper Pro 5405539D

PLATE, KNEE, LH, SNP PRO - RED

$

$

Currently unavailable

43

Snapper Pro 5405540D

PLATE, KNEE, RH, SNP PRO - RED

$

$

Currently unavailable

44

Snapper Pro 5405341D

WELD, OPERATOR COMPARTMENT - RED

$

$

Currently unavailable

45

Snapper Pro 5404206D

PLATE, SEAT RAIL ADAPTER - RED

$

$

Currently unavailable

46

Snapper Pro 5405618D

PLATE, SEAT MOUNT - RED

$

$

Currently unavailable

47

Snapper Pro 5404912D

GUARD, FOOT, EVO 36-48 - RED

$

$

Currently unavailable

48

Snapper Pro 5022665

BODY CLIP, 1/4-20 X 1/2 DEEP
(Superseded to 5022665SM)

$3.49

$

Usually ships in 2-12 days

0

49

Snapper Pro 5025356

BOLT, 3/8-16 X 3/8, 1/2 SHOULDER
(Superseded to 5025356SM)

$6.99

$

In Stock, Qty 6

0

50

Snapper Pro 5025391

NUT, 1/4-20 NYLK FLNG
(Superseded to 5025391FS)

Note: (S/N: 2014004710 & Above)

$3.99

$

Usually ships in 2-12 days

0

51

Snapper Pro 5025013X28

BOLT, 3/8-16 X 3-1/2" GD5 CZ
(Superseded to 5025013X28SM)

$4.99

$

In Stock, only 2 left!

0

52

Snapper Pro 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

53

Snapper Pro 5025145X14

BOLT, 5/16-18 X 1-3/4, CARRIAGE

$

$

Currently unavailable

54

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

Usually ships in 2-12 days

0

55

Snapper Pro 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, Qty 5

0

56

Snapper Pro 5025299X6

USE 5106757 - SCREW,1/4-20X3/4, ZINC
(Superseded to 5106757)

$3.49

$

Usually ships in 2-12 days

0

57

Snapper Pro 5102283

KNEE PAD, INNER RH, S75X

Note: (S/N: 2014004710 & Above)

$64.99

$

Usually ships in 2-12 days

0

58

Snapper Pro 5102284

KNEE PAD, INNER LH, S75X

Note: (S/N: 2014004710 & Above)

$61.99

$

Usually ships in 2-12 days

0

59

Snapper Pro 5102285

KNEE PAD, CENTER, S75X

Note: (S/N: 2014004710 & Above)

$117.99

$

Usually ships in 2-12 days

0

60

Snapper Pro 5102286

KNEE PAD, OUTER RH, S75X

Note: (S/N: 2014004710 & Above)

$67.99

$

Usually ships in 2-12 days

0

61

Snapper Pro 5102287

KNEE PAD, OUTER LH, S75X

Note: (S/N: 2014004710 & Above)

$67.99

$

Usually ships in 2-12 days

0
