S 800X (5900656) - Snapper Pro 61" Mower Deck 61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

61" Mower Deck

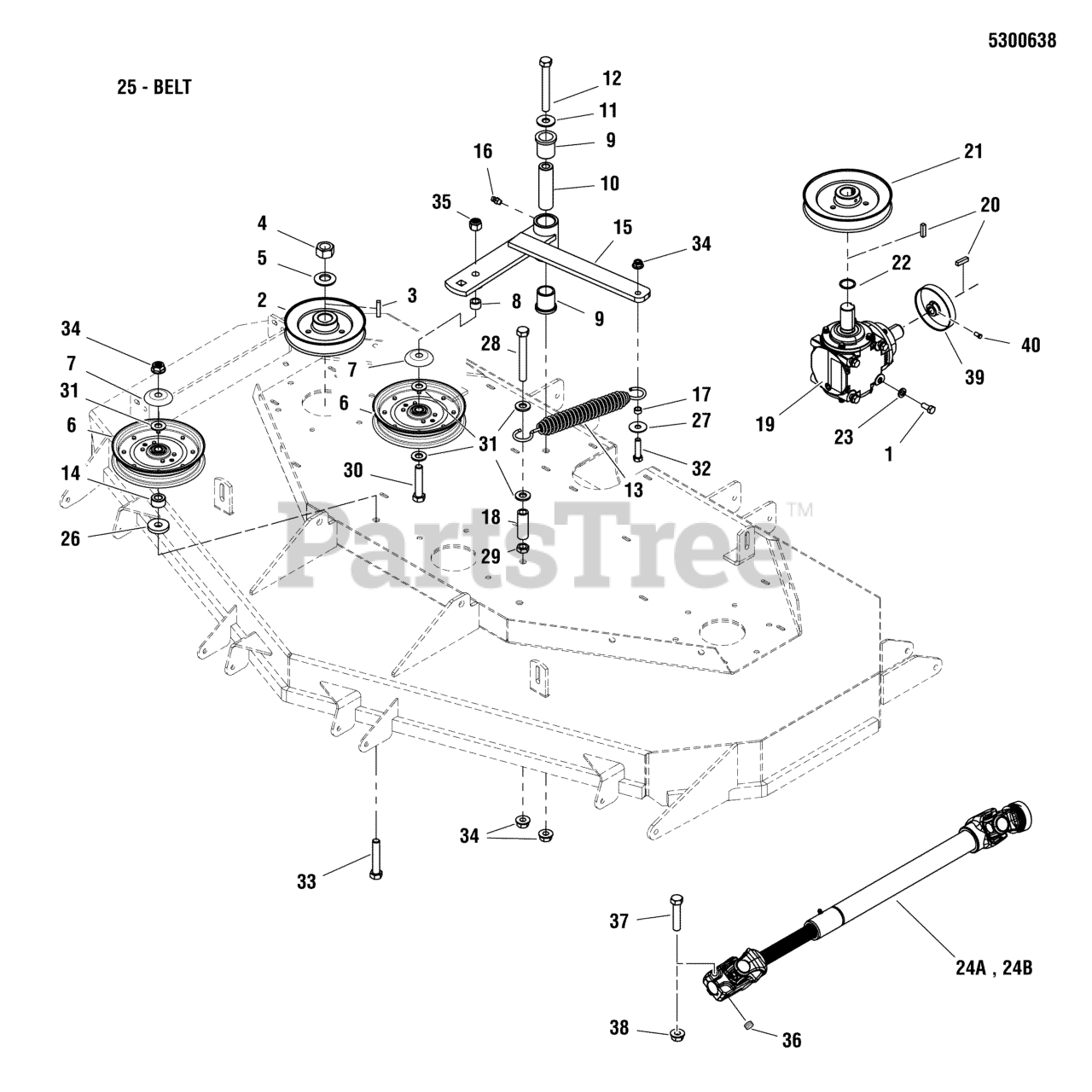

61" Mower Deck - Pulleys, Belts & Idler Arm Parts Diagram

  • Title

1

Snapper Pro 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 6

0

2

Snapper Pro 5023175

PULLEY, 5.540OB X .985ID, SINGLE B-SEC
(Superseded to 5023175SM)

$67.99

$

Usually ships in 2-12 days

0

3

Snapper Pro 5050407X10

KEY, 1/4" SQ. X 1-1/4
(Superseded to 5050407X10YP)

$3.99

$

Usually ships in 2-12 days

0

4

Snapper Pro 5025406

WASHER, 3/4 BELLEVILLE CL/ZC
(Superseded to 5025406FS)

$3.99

$

Usually ships in 2-12 days

0

5

Snapper Pro 5025405

NUT, 3/4-16 Hex
(Superseded to 5025405SM)

$3.99

$

In Stock, only 1 left!

0

6

Replace with: Pulley #5104717 & Debris Shield #5105145

Note: *If not present, order 5025158 - washer and 5101103 - shield.

$

$

Not available

7

Snapper Pro 5101103

SHIELD, PULLEY BEARING, CZ
(Superseded to 5101103SM)

$10.99

$

In Stock, only 2 left!

0

8

Snapper Pro 5101161

SPACER, .52 X 1.00 X .63, YZ
(Superseded to 5101161YP)

$8.99

$

In Stock, only 1 left!

0

9

Snapper Pro 5021541

BUSHING, FLANGE
(Superseded to 5021541SM)

$9.99

$

In Stock, Qty 11

0

10

Snapper Pro 5045022

SPACER, .52 x 1.00 x 3.50
(Superseded to 5045022SM)

$24.99

$

In Stock, only 1 left!

0

11

Snapper Pro 5025150

WASHER, 1/2" USSZ
(Superseded to 5025150SM)

$3.99

$

In Stock, only 3 left!

0

12

Snapper Pro 5025017X40

BOLT, 1/2-13 X 5" GD5 YZ
(Superseded to 5025017X40SM)

$6.49

$

In Stock, only 4 left!

0

13

Snapper Pro 5100633

SPRING-EXT, 1.25 ODX5.70LGX.142WR, BLK
(Superseded to 5100633YP)

$34.99

$

Usually ships in 2-12 days

0

14

Snapper Pro 5101162

SPACER, .52 X 1.00 X .56, PM, CZ
(Superseded to 5101162YP)

$7.49

$

In Stock, only 1 left!

0

15

Snapper Pro 5403124D

WELD, IDLER ARM - OUTFRONT - RED

$

$

Currently unavailable

16

Snapper Pro 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

Usually ships in 2-12 days

0

17

Snapper Pro 5041930

SPACER, .38 X .50 X .27, CZ
(Superseded to 5041930SM)

$4.99

$

Usually ships in 2-12 days

0

18

Snapper Pro 5050857X2P125

HOSE, 1/2" PUSH-ON 2.125"

$

$

Currently unavailable

19

Snapper Pro 5101164

GEAR BOX, RIGHT ANGLE
(Superseded to 5101164YP)

$1481.99

$

Usually ships in 2-12 days

0

20

Snapper Pro 5050407X8

KEY, 1/4 SQ X 1
(Superseded to 5050407X8SM)

$3.99

$

Usually ships in 2-12 days

0

21

Snapper Pro 5101166

PULLEY, 6.25" SPLIT STEEL W/ 1" ID

$142.99

$

Usually ships in 2-12 days

0

22

Snapper Pro 5020864

SNAP RING, EXTERNAL, 1 SHAFT

$3.99

$

Usually ships in 2-12 days

0

23

Snapper Pro 5025170

WASHER, 5/16 LOCK CZ
(Superseded to 5025170SM)

$3.99

$

Usually ships in 2-12 days

0

24A

Snapper Pro 5101173

SHAFT, TELESCOPING DRIVE, OUT-FRONT
(Superseded to 5105404)

Note: (Gas Models)(S/N: 2017795055 & Below)

$887.99

$

Usually ships in 2-12 days

0

24A

Snapper Pro 5105404

DRIVE SHAFT SEALED S800 GAS - NET

Note: (Gas Models)(S/N: 2017795056 & Above)

$887.99

$

Usually ships in 2-12 days

0

24B

Snapper Pro 5102089

DRIVE SHAFT, S800XY
(Superseded to 5105360FS)

Note: (DIESEL MODELS)

$936.99

$

Usually ships in 2-12 days

0

25

Snapper Pro 5021854

BELT, BP-SEC, 130.97EL, LRG ARAMID, WRPD

$110.99

$

Usually ships in 2-12 days

0

26

Snapper Pro 5044913

WASHER, .53 X 1.50 X .25
(Superseded to 5044913SM)

$6.99

$

Usually ships in 2-12 days

0

27

Snapper Pro 5025165

WASHER, 3/8" Fender
(Superseded to 5025165SM)

$3.99

$

Usually ships in 2-12 days

0

28

Snapper Pro 5025017X32

BOLT, 1/2-13 X 4" GD5 CZ
(Superseded to 5025017X32YP)

$6.49

$

In Stock, only 2 left!

0

29

Snapper Pro 5025301

NUT, Hex, Jam, 1/2-13
(Superseded to 5025301SM)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper Pro 5025018X20

BOLT, 1/2-20 X 2-1/2" GD5 CZ
(Superseded to 5025018X20SM)

$6.99

$

In Stock, only 1 left!

0

31

Snapper Pro 5025158

WASHER, 1/2 SAE
(Superseded to 5025158SM)

$3.99

$

In Stock, only 2 left!

0

32

Snapper Pro 5025013X10

BOLT, 3/8-16 X 1-1/4" GD5 CZ
(Superseded to 5025013X10SM)

$3.99

$

Usually ships in 2-12 days

0

33

Snapper Pro 5025017X22

BOLT, 1/2-13 X 2-3/4 GD5 CZ
(Superseded to 5025017X22SM)

$5.99

$

In Stock, only 1 left!

0

34

Snapper Pro 5025396

NUT, Hex Flange, Nylock, 1/2-13
(Superseded to 770225)

$3.49

$

In Stock, Qty 7

0

35

Snapper Pro 5025098

NUT, Hex, Nylon Lock, 1/2-20
(Superseded to 5025098SM)

$5.99

$

Usually ships in 2-12 days

0

36

Snapper Pro 5025063X3

SET SCREW, 3/8-16 X 3/8
(Superseded to 5025063X3YP)

$3.99

$

Usually ships in 2-12 days

0

37

Snapper Pro 5025013X14

BOLT, 3/8-16 X 1-3/4" GD5 CZ
(Superseded to 5025013X14SM)

$3.99

$

In Stock, Qty 5

0

38

Snapper Pro 5025096

NUT, 3/8-16 HEX NYLON LOCK
(Superseded to 5025096SM)

$3.49

$

In Stock, Qty 5

0

39

Snapper Pro 5102465

GUARD, TRASH, S800X

$85.99

$

Usually ships in 2-12 days

0

40

Snapper Pro 5025554

SOC SET SCREW, 1/4-20X3/8, DRI-LOC PATCH

$7.99

$

Usually ships in 2-12 days

0
